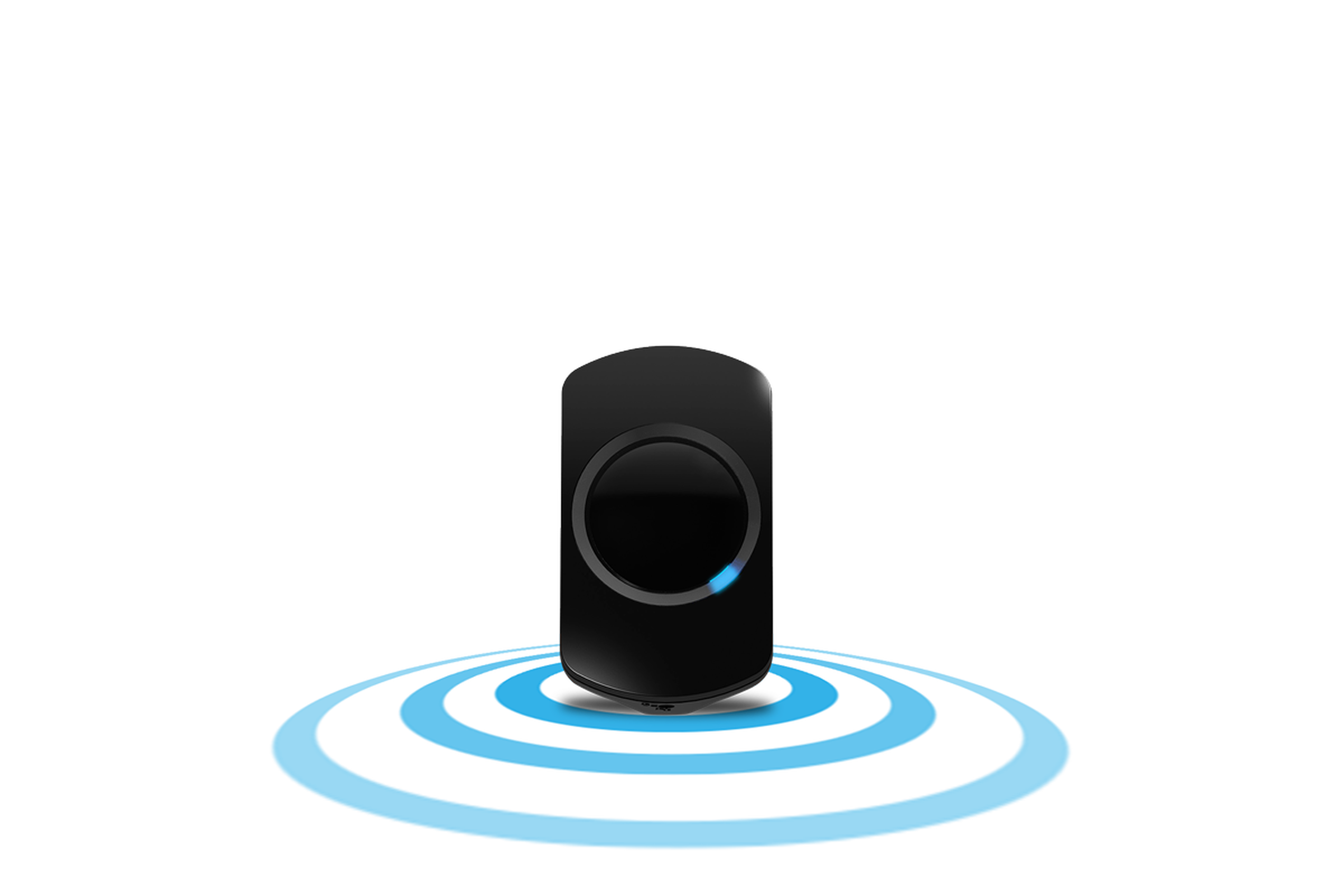

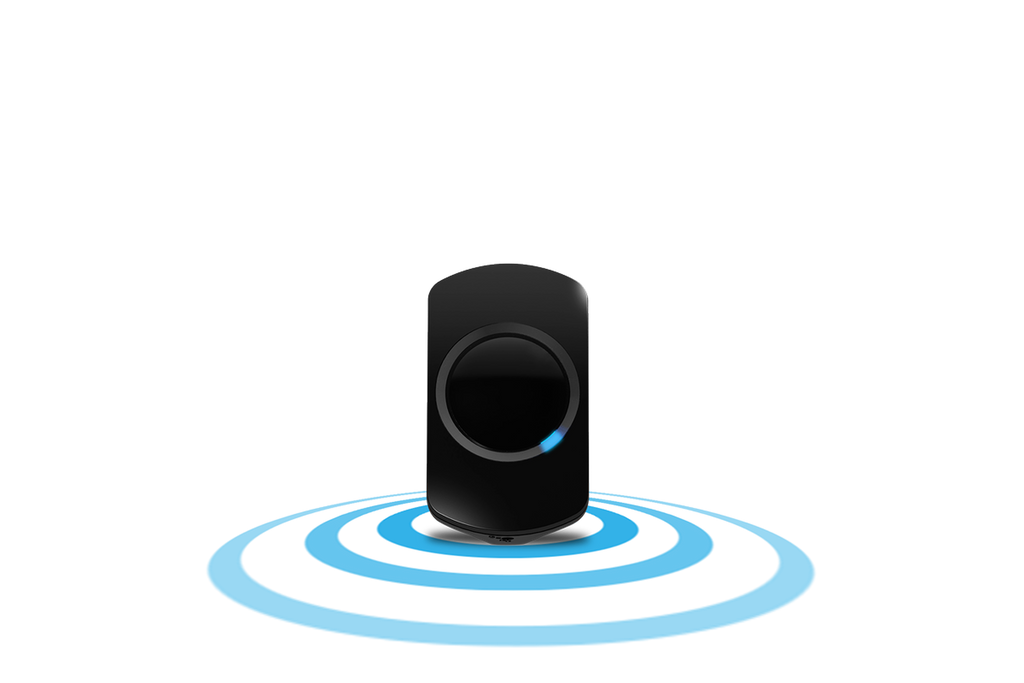

The Texecom Capture P15-W is a Grade 2 wireless 15 m PIR motion detector for wall mounting, using Texecom's Ricochet mesh wireless technology for use with Texecom wireless and hybrid intruder alarm systems. It shares the same low-profile form factor as the wired Capture detectors and suits residential and retail applications. This listing is the black version (GDA-0006).
Key features
- 15 m / 90° volumetric coverage
- Dual element pyro
- Optional PetWise mode (non-compliant mode; up to 35 kg pet immunity at 10 m / 90°)
- EN 50131-2-2 Grade 2
- Ricochet mesh wireless with automatic wireless set-up
- Tri-colour LED
- Lifetime warranty (battery 24 months)
Technical specifications
- Part number: GDA-0006 (black)
- Detection: dual element PIR, 15 m at 90°
- Mounting height: 1.5 m to 3 m
- Maximum current: 18 mA; quiescent current: 21 µA
- Frequency: 868 MHz (868.2–868.4 MHz); max RF power 10 mW; listen-before-talk receiver
- Operating voltage: 3 V; supplied battery capacity 1250 mAh
- Low battery signal: 2.85 V; detector operates for at least 30 days after low battery is signalled
- Operating temperature: -10°C to +55°C; humidity 0–95% non-condensing
- Dimensions: 65 mm wide x 112 mm high x 43 mm deep
- Weight (with fascia, insert and battery): 127 g
