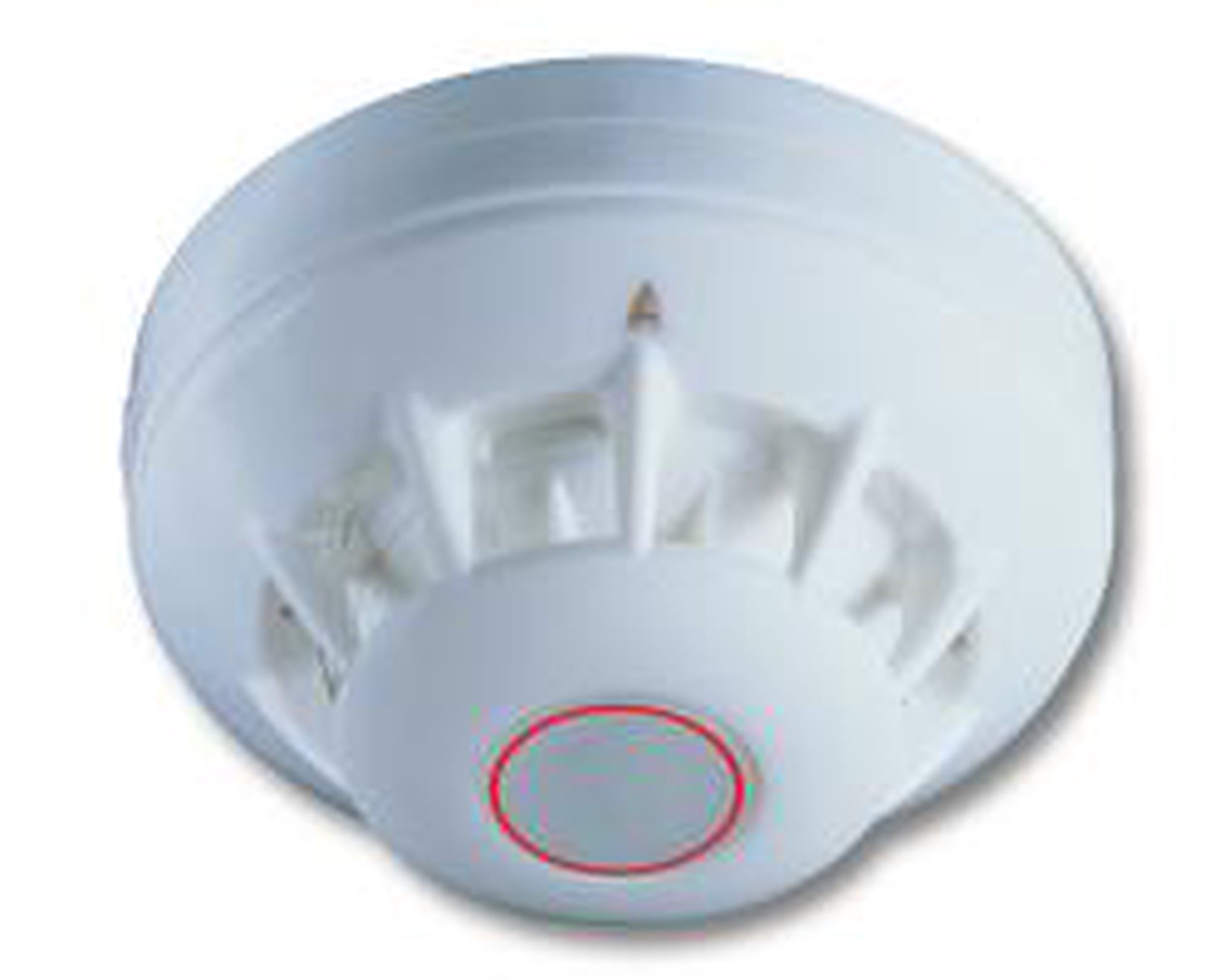

Texecom AGB-0004 Exodus FT90 4-Wire Fixed Heat Detector 12V

The Texecom Exodus FT90/4W (AGB-0004) is a 12V 4-wire fixed temperature heat detector that raises an alarm at 90°C. It is made for use on intruder alarm panels and other 12V systems, and its alarm relay opens on alarm so it can be wired into a standard alarm zone. It suits areas where temperatures up to 70°C occur in normal use, such as boiler rooms, but it is not suitable for fast detection of slow burning fires.

Key features

• Fixed temperature heat detection at 90°C
• 12V 4-wire operation with alarm relay
• Microcontroller signal analysis with drift compensation
• Latch input for latching operation through the control panel
• Test button
• LEDs blink every 8 seconds in normal operation
• Designed to EN 54-5

Technical specifications

• Product code: AGB-0004
• Detection: fixed temperature, alarm above 90°C
• Supply voltage: 9 to 16V DC (12V DC nominal)
• Current: 15mA typical
• Alarm relay: normally closed, opens on alarm; rated up to 24V DC, 50mA
• Normal operating temperature: -10°C to +80°C
• Diameter: 107mm
• Standards: EN 54-5 (class C/S), EMC to EN 50130-4

Note: test with a hot air gun, taking care not to damage the plastic housing.
