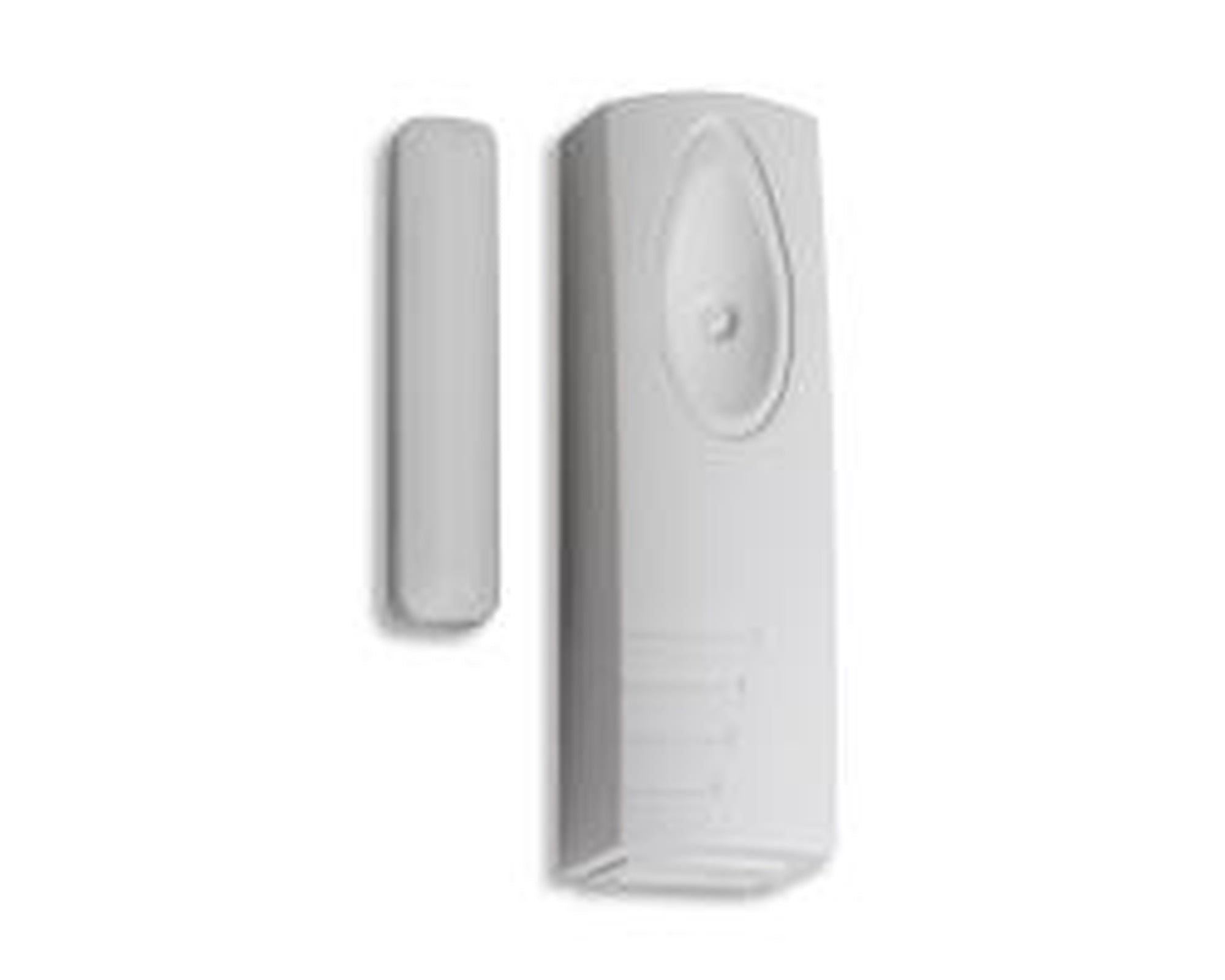

Texecom AEK-0001 Impaq SC Shock Sensor & Magnetic Contact White Grade 2

The Texecom Impaq SC (AEK-0001) is a wired shock sensor and magnetic contact in one white housing, for Texecom Premier Elite and other wired intruder alarm systems. It uses VIBER accelerometer technology to detect attacks on doors and windows in three dimensions, so it can be mounted in any orientation. It is Grade 2 to EN50131 and PD6662:2017.

Key features

• VIBER accelerometer technology, detects in three dimensions
• Combined shock sensor and magnetic contact
• Digital signal processing
• 5 selectable digital sensitivity settings
• LED assisted setup procedure
• Built-in EOL resistors
• Can also use an externally wired magnetic contact

Technical specifications

• Product code: AEK-0001
• Operating voltage: 9 to 16V DC
• Quiescent current: 12.8mA; maximum current: 15.4mA
• Dimensions: 86 x 25 x 21mm; magnet 57 x 11.5mm
• Weight: 80g
• Colour: white
• Operating temperature: -10°C to +55°C
• Relative humidity: 0 to 95%, non-condensing
• Standards: EN50131-2-8 Grade 2, EN50131-2-6 Grade 2, PD6662:2017 Grade 2
• Environmental class: II
