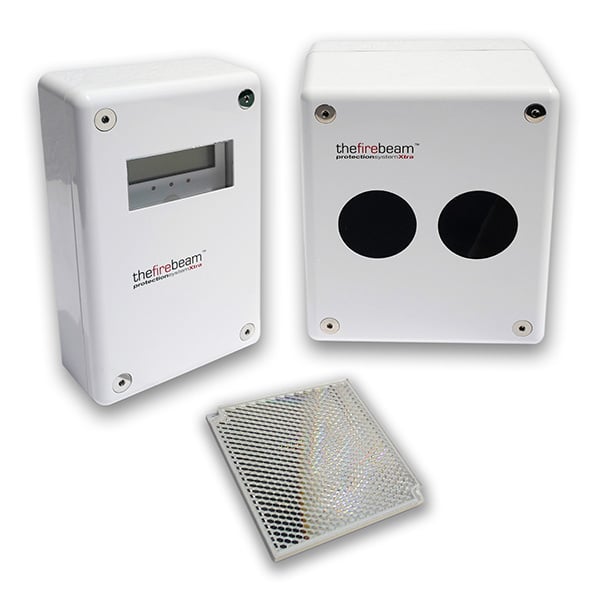

The Fire Beam™ Xtra Reflective Beam Detector with Controller and Reflector (7-70m) (FIREBEAM-XTRA)

The Fire Beam Xtra (FIREBEAM-XTRA) from The Fire Beam Company is a conventional reflective optical beam smoke detector with a motorised, auto-aligning head and a hard-wired low-level controller. It covers 7 to 70 metres as standard. You commission, test and maintain it from the controller at floor level, so you don't need to work at height. It connects to conventional fire alarm systems, and to analogue addressable systems through additional interface modules.

Key features

• Motorised beam head with auto-alignment technology
• Low-level wired controller for commissioning, changing operating modes, maintenance, diagnostics, adjustments and fire tests
• Standard range of 7–70 m, extendable to 160 m with extension kits
• Anti-condensation reflector and extension kit variants available
• Ultra-low power consumption; continuously self-checking
• VdS approved to EN 54-12

Technical specifications

• Detection range: 7 to 70 m as standard, up to 160 m with extension kits (70KIT140 for 70–140 m, 140KIT160 for 140–160 m)
• Short range mask supplied for distances under 20 m
• Operating voltage: 12 to 30 V DC
• Current consumption: 3.5 mA (all operational states), 17 mA (fast commissioning)
• Outputs: 2 change-over relays (fire and fault), 2 A @ 30 V DC
• Reset voltage: 5–40 V DC; reset time: >5 s
• Sensitivity: adjustable 25% (1.25 dB) to 50% (3 dB) in 1% steps, default 35% (1.87 dB)
• Response time: adjustable 2 to 30 s in 1 s steps, default 10 s
• Optical wavelength: 870 nm
• Adjustment angle: ±5°; misalignment tolerance: beam head ±0.4°, reflector ±2°
• LED indication: green = status, red = fire, amber = fault
• Head dimensions: 180 x 155 x 137 mm (H x W x D); net weight 1.1 kg
• Operating temperature: -10°C to +55°C; relative humidity 10 to 95% (non-condensing)
• Environment: indoor; IP65 when suitably mounted and terminated
• Standards and marks: EN 54-12, VdS, CPR, CE, UKCA

What's in the box

• Beam head detector
• Low-level controller
• 1 x reflector
• Short range mask (for distances under 20 m)
• 3 mm Allen key
• Quick start installation guide
