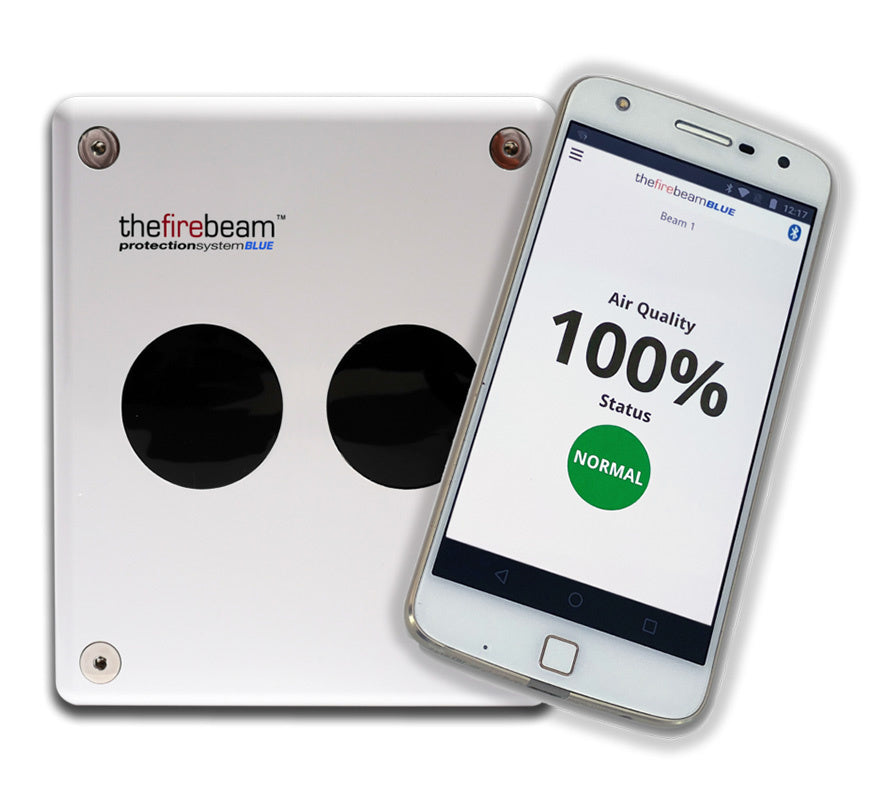

The Fire Beam BLUE App Controlled Auto-Aligning Beam Detector (7-70m) (FIREBEAM-BLUE)

The Fire Beam BLUE is an auto-aligning beam smoke detector commissioned from a smartphone app over Bluetooth, removing the need for a hard-wired low-level controller on warehouses, atria and other large open spaces.

The Fire Beam BLUE (FIREBEAM-BLUE) from The Fire Beam Company is a conventional reflective optical beam smoke detector with a motorised, self-aligning head. You commission and control it from a smartphone or tablet over Bluetooth® instead of a wired controller. The app does the same jobs as a low-level controller and doesn't need a phone signal or internet connection. It connects to conventional fire alarm systems, and to analogue addressable systems through additional interface modules.

Key features

• Secure Bluetooth® control, commissioning, maintenance and testing from an iOS or Android app
• No hard-wired controller needed, which saves installation time and material costs
• Manage multiple beams from one smart device
• Motorised self-aligning beam head
• Standard range of 7–70 m, extendable to 160 m with extension kits
• Anti-condensation reflector and extension kit variants available
• Ultra-low power consumption; continuously self-checking
• VdS approved to EN 54-12

Technical specifications

• Detection range: 7 to 70 m as standard, up to 160 m with extension kits (70KIT140 for 70–140 m, 140KIT160 for 140–160 m)
• Short range mask supplied for distances under 20 m
• Operating voltage: 12 to 30 V DC
• Current consumption: 5.5 mA (all operational states), 13.5 mA (fast commissioning)
• Outputs: 2 change-over relays (fire and fault), 2 A @ 30 V DC
• Reset voltage: 5–40 V DC; reset time: >5 s
• Sensitivity: adjustable 25% (1.25 dB) to 50% (3 dB) in 1% steps, default 35% (1.87 dB)
• Response time: adjustable 2 to 30 s in 1 s steps, default 10 s
• Optical wavelength: 870 nm
• Adjustment angle: ±5°; misalignment tolerance: beam head ±0.4°, reflector ±2°
• LED indication: green = status, red = fire, amber = fault
• Head dimensions: 180 x 155 x 137 mm (H x W x D); net weight 1.1 kg
• Operating temperature: -10°C to +55°C; relative humidity 10 to 95% (non-condensing)
• Environment: indoor; IP65 when suitably mounted and terminated
• Standards and marks: EN 54-12, VdS, CPR, CE, UKCA
• User interface: app via Bluetooth®

What's in the box

• Beam head unit
• 1 x reflector
• Short range mask (for distances under 20 m)
• 3 mm Allen key
• Quick start installation guide

Compatible with / Used for: conventional fire alarm systems, and analogue addressable systems via additional interface modules. Extension kits 70KIT140 and 140KIT160 extend coverage to 160 m.
