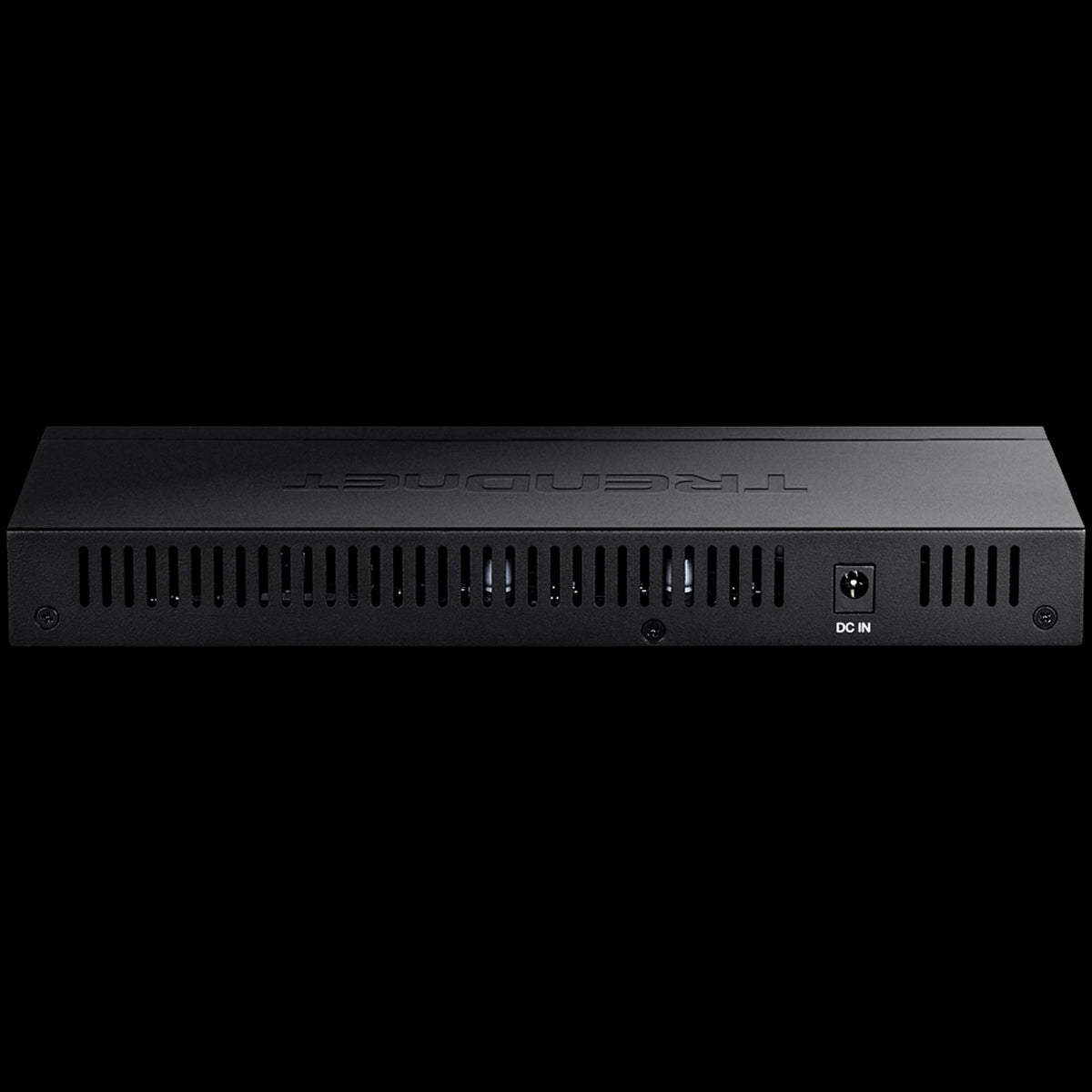

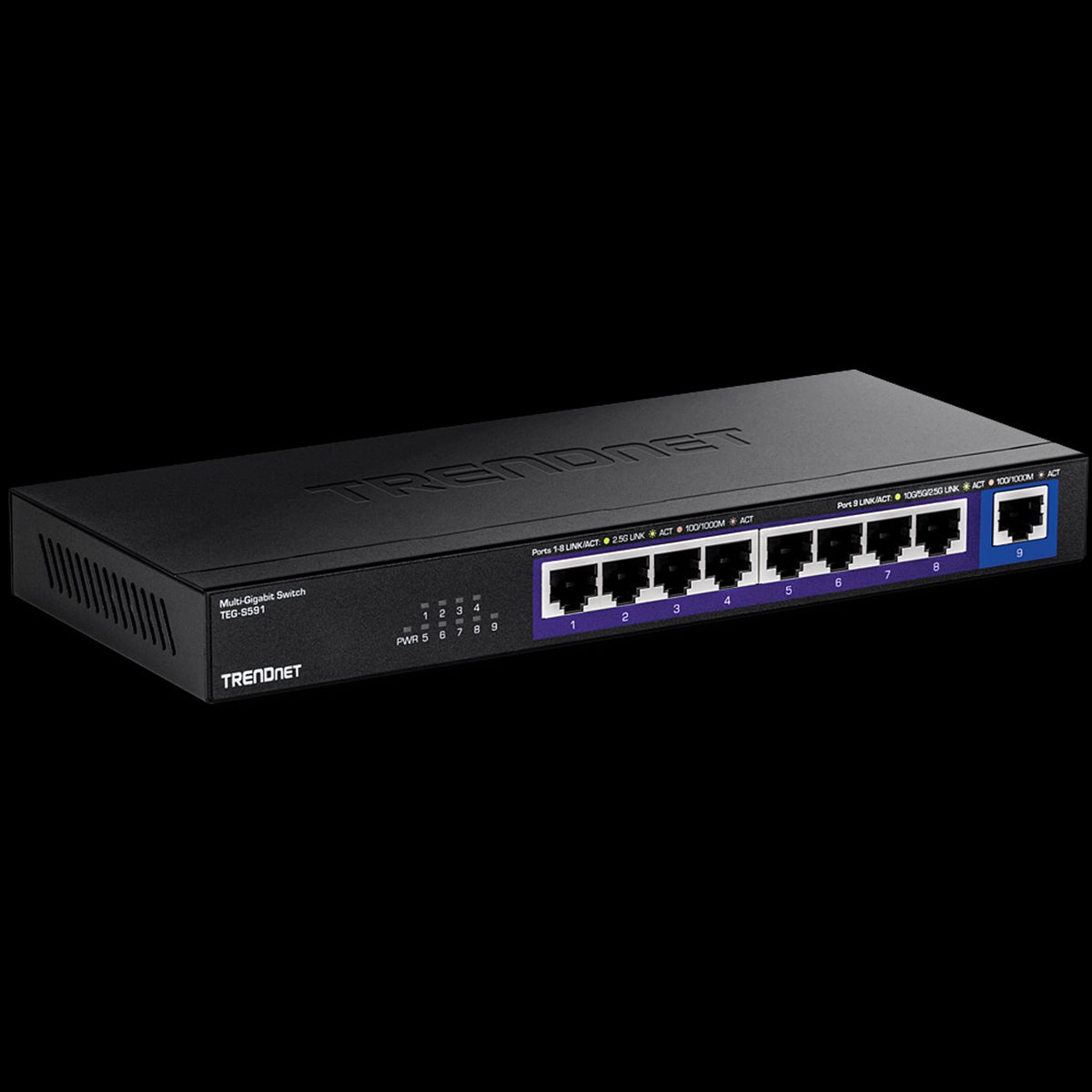

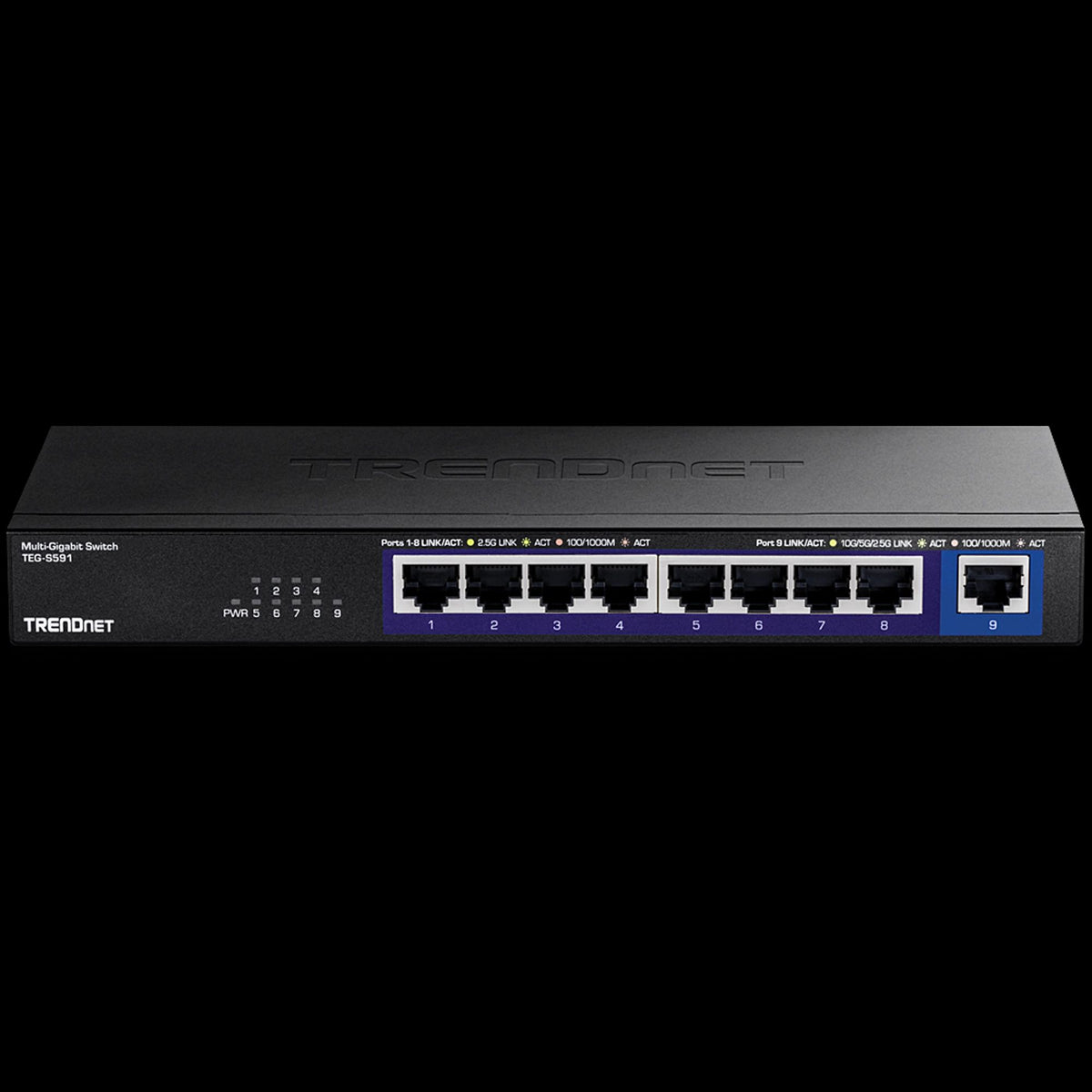

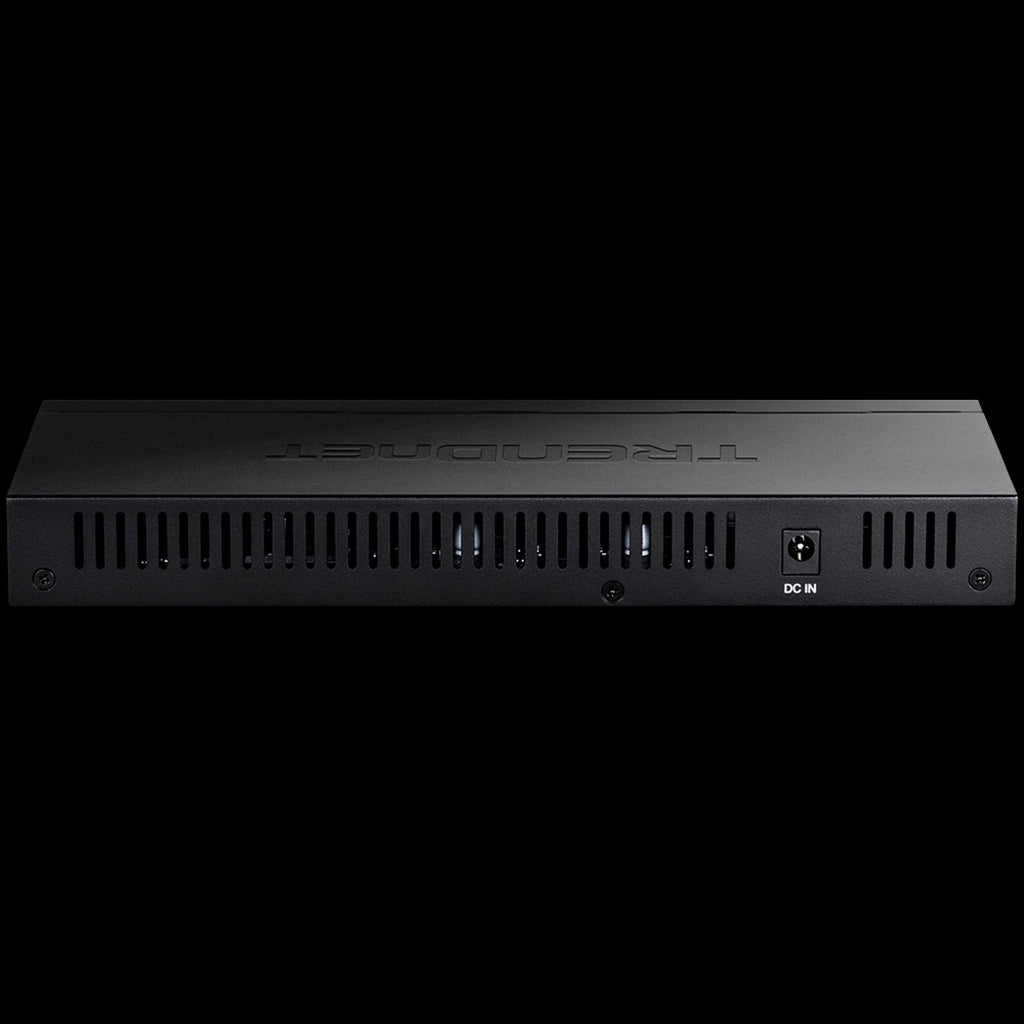

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5 Gbps over existing CAT5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection.
Main Features
8x 2.5G RJ-45 ports
1x 10G RJ-45 port
Compact fanless design eliminates noise

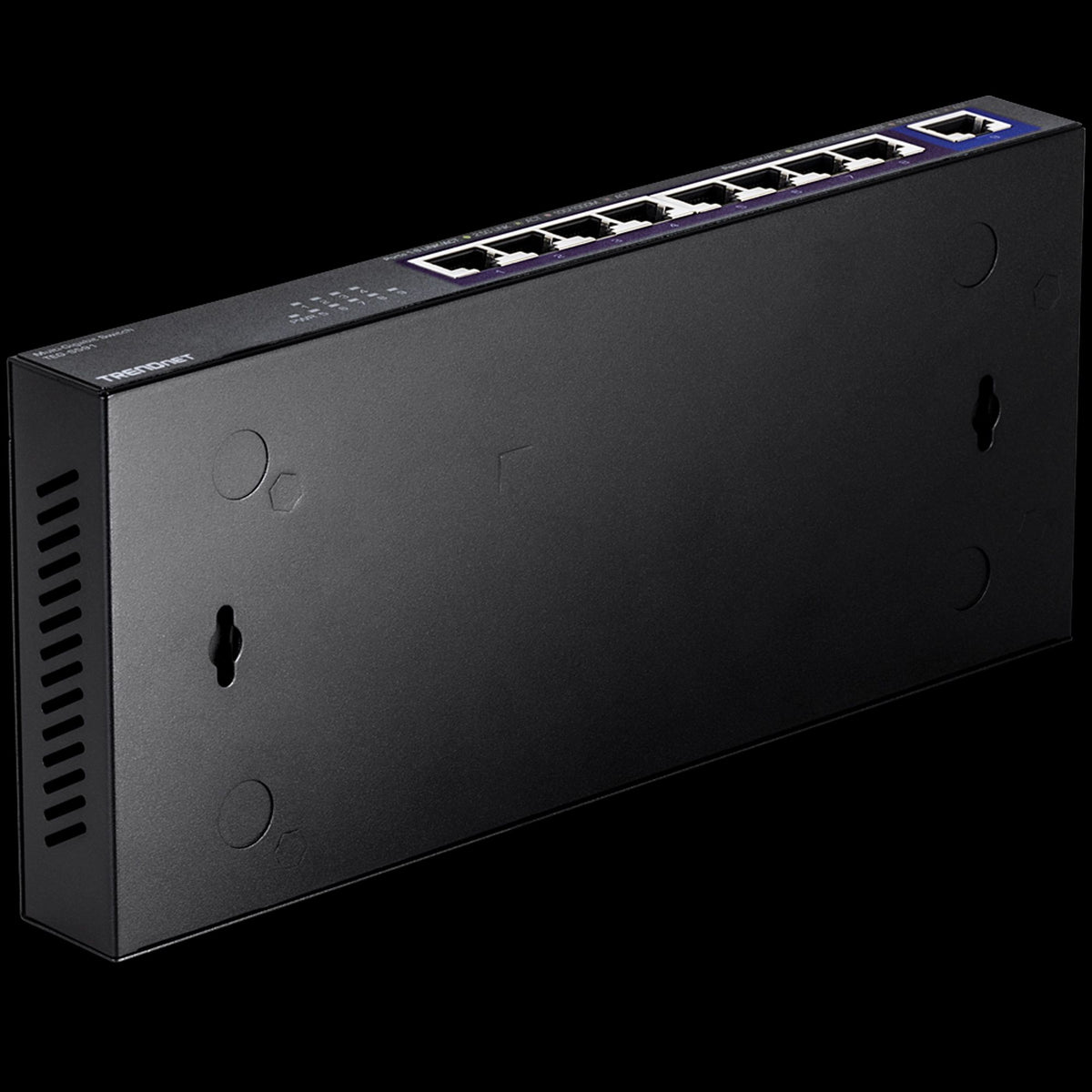

Wall mountable for installation flexibility
60 Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3an (10G) compliant
Jumbo frame support up to 12KB
Sturdy metal housing
Specifications
Data Transfer Rate
2Gbps
Depth
105.00mm
Features
1 x 10G RJ-45 port; 60Gbps switching capacity; 8 x 2.5G RJ-45 ports; Compact fanless design eliminates noise; IEEE 802.3an (10G) compliant; IEEE 802.3bz (2.5G) compliant; Jumbo Frame support up to 12KB; NDAA / TAA compliant (U.S. and Canada only); Sturdy metal housing; Wall mountable for installation flexibility
Height
27.00mm
Input Voltage
90-264V AC
Limited Warranty
Lifetime
Material
Metal
Mount Type
Wall Mount
NDAA Compliant
Yes
Number of Network (RJ-45) Ports
9
Number of Ports
9
Output Voltage
12V DC
Package Contents
Power adapter (12V, 1A); Quick Installation Guide; TEG-S591
