| Depth |
104.00mm |
| Environmental Certification |
CE; Freefall (IEC 60068-2-32); Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Environmentally Friendly |
Yes |
| Ethernet Technology |
1 Gbps (Gigabit Ethernet) |
| Features |

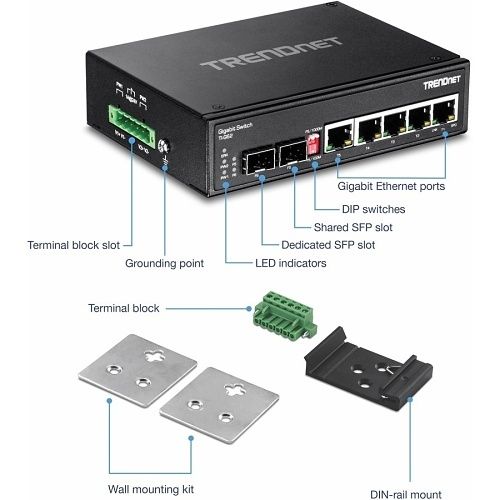

1 x shared SFP slot and 1 x dedicated SFP slot; 12 Gbps switching capacity; 5 x Gigabit Ethernet ports; Alarm output triggered by power failure; Extreme -40 to 75 deg C (-40 to 167 deg F) operating temperature range; Hardened IP30 rated metal switch; Includes DIN-rail and wall mounts; Power supply sold separately (model TI-M6024); Redundant power inputs with overload current protection |
| Height |
143.00mm |
| Input Voltage |
12V DC; 56V DC |
| Limited Warranty |
3-Year |
| Material |
Metal |
| Media Type Supported |
Optical Fiber; Twisted Pair |
| Mount Type |
DIN Rail Mount; Wall Mount |
| NDAA Compliant |
Yes |
| Network Switch Type |
Unmanaged |
| Network Technology |
1000Base-T |
| Number of SFP Slots |
1 |

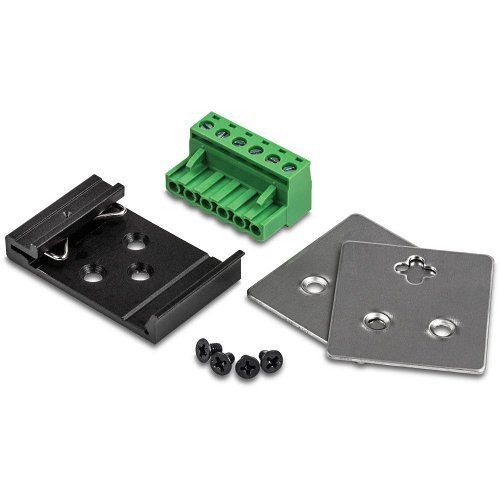

| Package Contents |
- TI-G62
- Quick Installation Guide
- Removable terminal block
- DIN-rail/wall mount kit
|
| Plug/Connector Type |
Terminal Block |
| PoE (RJ-45) Port |
No |
| Power Consumption |
3.8400W |
| Power Source |
AC Power |
| Product Line |
Industrial |
| Product Series |
TI |
| Product Type |
Ethernet Switch |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
6 |
| Width |
36.00mm |
| Expansion Slot Type |
SFP |
| Layer Supported |
2 |
| Manageable |
No |
| Manufacturer |
TRENDnet |
| Modular |
No |
| Networking Standards |
IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of SFP Slots |
1 |
| Number of Total Expansion Slots |
1 |
| Power over Ethernet (PoE) |
No |
| Redundant Power Supply |
Yes |
| RoHS Compliant |
Restricted Substances Not Used |
| Shared SFP Slot |
Yes |
| Uplink Port |
No |
| WEEE Compliant |
Not Applicable |
