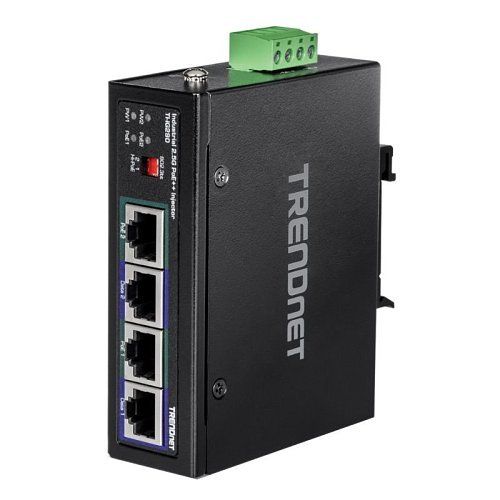

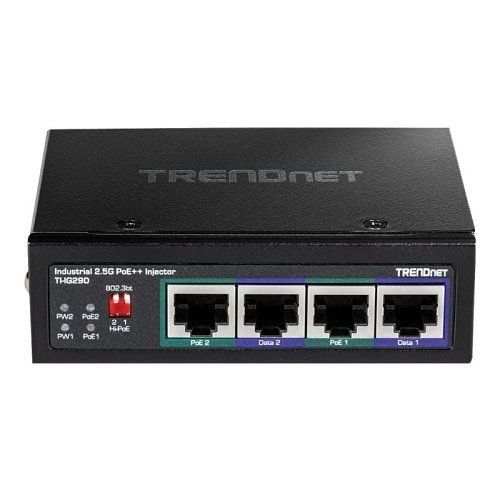

TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector
SKU: TI-IG290Brand: TRENDnet
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector
£164.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data")
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
Frequently bought together
TRENDnet
TRENDnet TI-IG30 Hardened Industrial Gigabit PoE+ Injector
Sale price£50.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-IG319 Industrial 10G PoE++ Injector, 120W PoE
Sale price£96.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-IG90 Hardened Industrial 90w Gigabit 4pPoE Injector,4-Pair Power Over Ethernet, PoE(15.4w), PoE Ip30, Din-Rail/Wall Mount Included, 4-Pair PoE Up To 100m
Sale price£76.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-M12 Industrial Modbus Gateway
Sale price£178.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-M42 4-Port Industrial Modbus Gateway
Sale price£356.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100m to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.
Main Features
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data")
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)

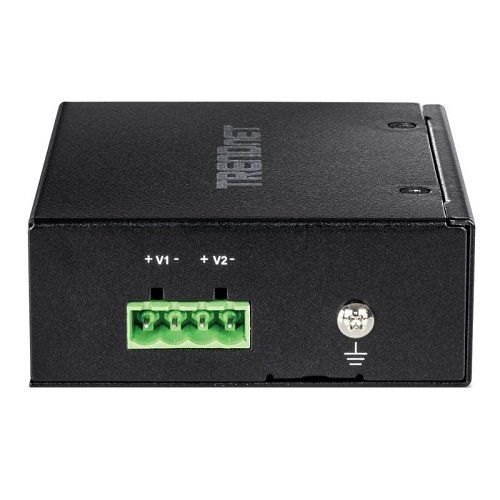

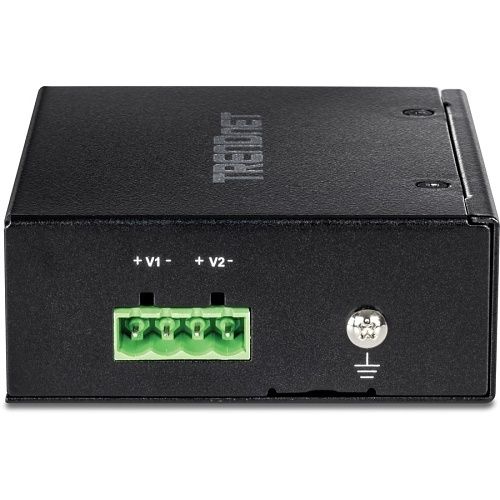

- Redundant power inputs with overload current protection

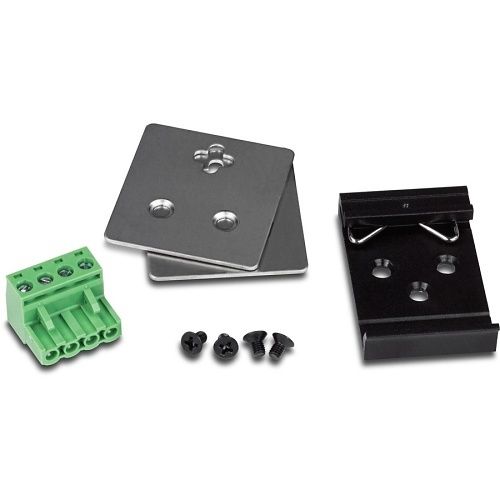

- Includes DIN-Rail mount and wall mount
Specifications
| Form Factor | DIN Rail Mount; Wall Mount |
|---|---|
| Height | 30.0mm |
| Input Ports | 2 x 2.5 Gigabit Ethernet |
| Input Voltage | 56V DC |
| Length | 103.0mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Maximum Output Power | 180W |
| Mount Type | DIN Rail Mount; Wall Mount |
| NDAA Compliant | Yes |
| Output Ports | 2 x 2.5 Gigabit PoE++ |
| Package Contents |
|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 180W |
| Product Type | PoE Injector |
| Protection Type | Overload Protection; Surge Protection |
| TAA Compliant | Yes |
| Width | 81.0mm |
| Certifications & Standards | CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Colour | Silver |
| Manufacturer | TRENDnet |
| Maximum Output Voltage | 56V |
| Operating Relative Humidity (H-H) | 0.95 |
| Operating Temperature (T-T) | -40-75°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector Product datasheet · TI-IG290 · PDF Open datasheet
