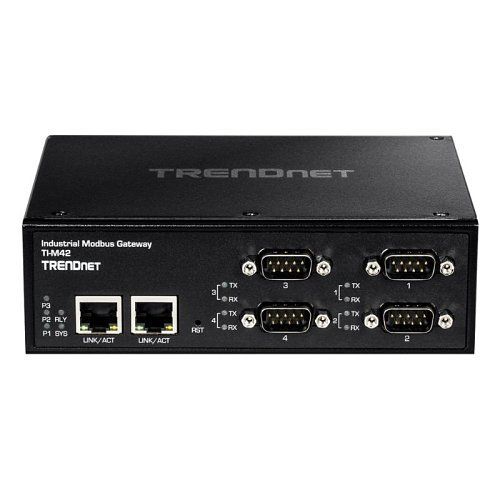

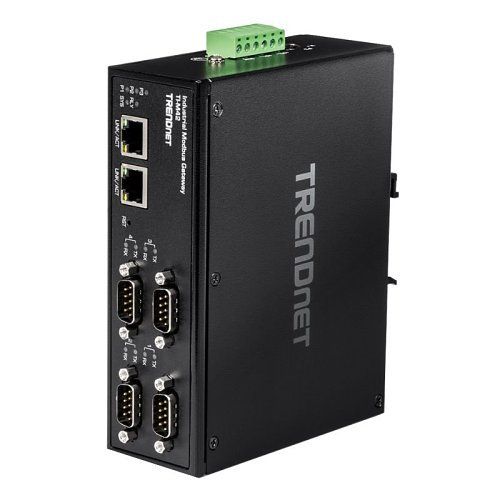

TRENDnet's Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m using CAT5e cabling . This industrial gateway allows users to connect four modbus serial devices to a network.
Main Features
Connect up to four RS-232/RS-422/RS-485 serial devices to a network
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Configure via web management or telnet
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 50bps to 921.6Kbps
NDAA / TAA compliant
Lifetime Warranty
Specifications
Depth
81.5mm
Environmental Certification
CE
Ethernet Technology
100 Mbps (Fast Ethernet)
Form Factor

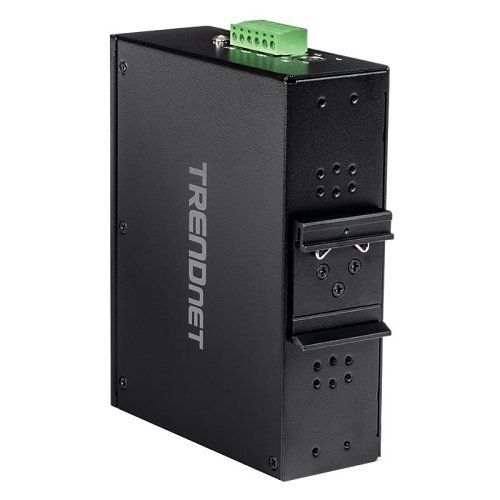

DIN Rail Mount; Wall Mount
Height
32.0mm

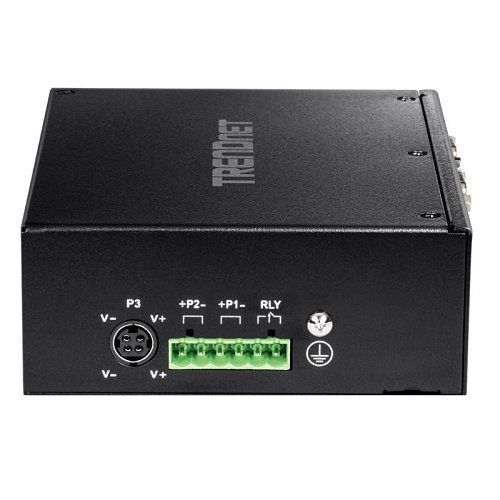

Input Voltage
12V DC; 56V DC
Limited Warranty
3-Year
Media Type Supported
Twisted Pair
Mount Type
DIN Rail Mount; Wall Mount
Network (RJ-45)
Yes
Network Technology
100Base-TX; 10Base-T
Number of Network (RJ-45) Ports
2
Package Contents
TI-M42Quick Installation GuideRemovable terminal blockDIN-Rail and wall mount kit
