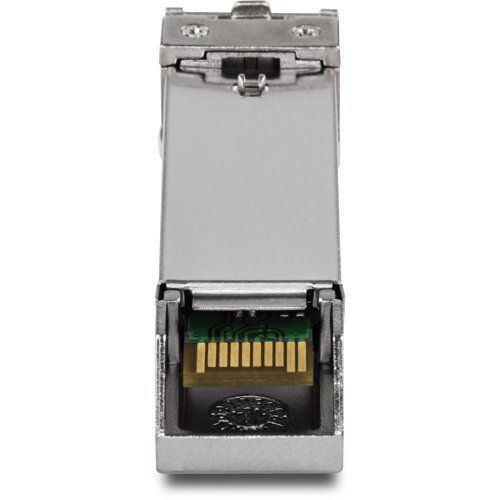

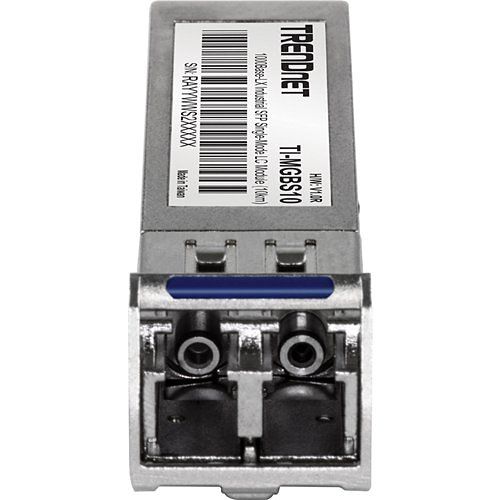

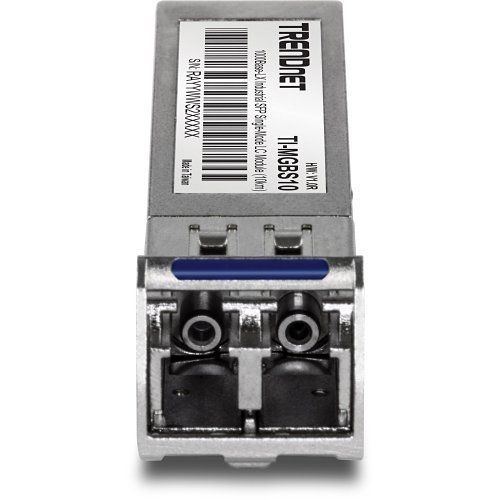

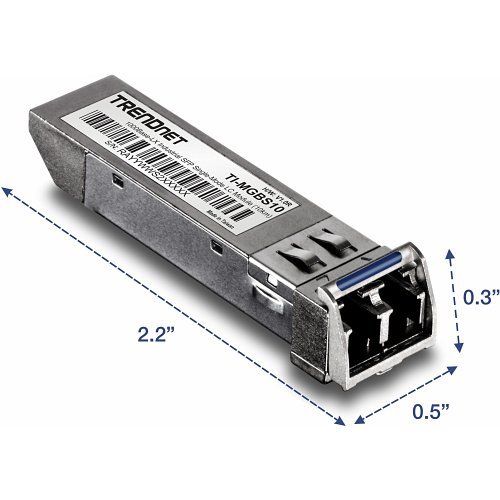

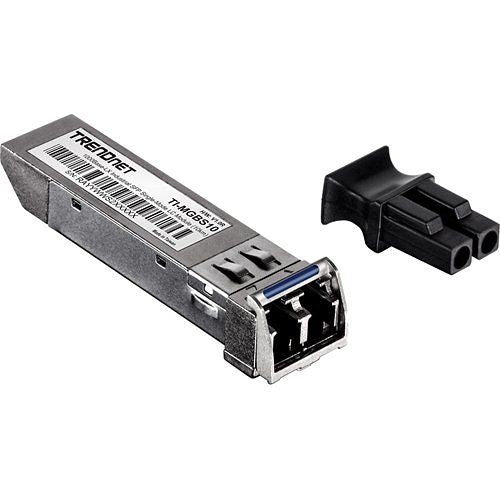

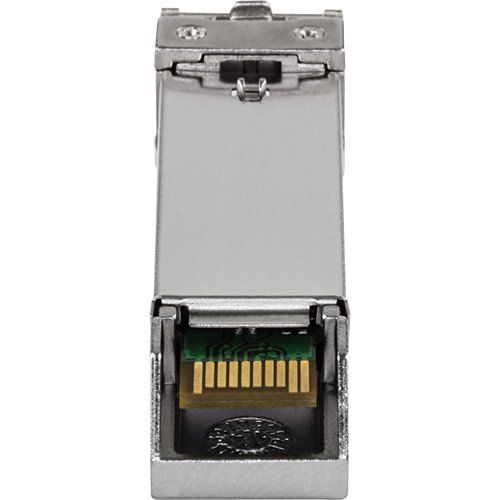

TRENDnet TI-MGBS10 1000base-Lx Industrial SFP Single-Mode Lc Module (10km)
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- ANSI Fiber Ch compliant
- Supports data rates of up to 1.25Gbps

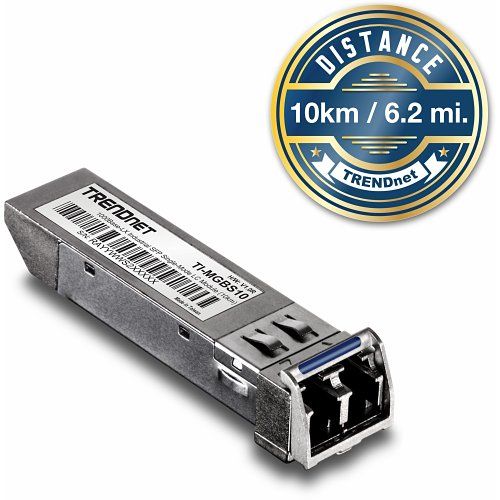

- Transmission distance of up to 10km (6.2 mi)
Frequently bought together
Product details
The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).
Fiber Applications
Long distance fiber networking for industrial, manufacturing, and corporate / education campus applications.
Fiber Mode / Distance
Single-Mode transceiver spans distances up to 10km (6.2 miles) and supports up to 1.25Gbps.
Compatibility

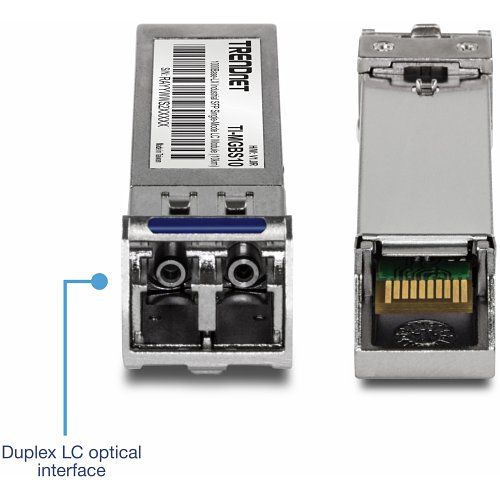

Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
- ANSI Fiber Ch compliant
- Supports data rates of up to 1.25Gbps
- Transmission distance of up to 10km (6.2 mi)
Specifications
| Application/Usage | Data Networking; Optical Network |
|---|---|
| Compatibility | MSA Compliant |
| Connector Type | LC |
| Depth | 254.0mm |
| Environmental Certification | CE |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Form Factor | Hot-pluggable |
| Height | 76.2mm |
| Limited Warranty | 3-Year |
| Media Type Supported | Optical Fiber |
| NDAA Compliant | Yes |
| Network Technology | 1000Base-LX |
| Number of Ports | 1 |
| Package Contents |
|
| Product Series | TI |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Weight | 648.60g |
| Width | 127.0mm |
| Connection Type | LC |
| Country of Origin | TW |
| Expansion Slot Type | SFP |
| Fibre Optic Cable Standard | 1310 nm |
| Fibre Optic Mode | Single-mode |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Manufacturer | TRENDnet |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
TRENDnet TI-MGBS10 1000base-Lx Industrial SFP Single-Mode Lc Module (10km) Product datasheet · TI-MGBS10 · PDF Open datasheet
