TRENDnet TI-OS300 Outdoor 2.5G PoE++ Ethernet Surge Protector
SKU: TI-OS300Brand: TRENDnet
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
TRENDnet TI-OS300 Outdoor 2.5G PoE++ Ethernet Surge Protector
£103.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Two 2.5Gbps RJ45 Ethernet ports and ground terminal
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
- Operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67-rated metal enclosure and Ethernet cable glands
- Line to line and line to ground protection modes
- Gas discharge tube (GDT) protection with a nominal discharge current (8/20s) of 10kA and clamping voltage of 20V at 1kA
Frequently bought together
TRENDnet
TRENDnet TI-PE50 5-Port Industrial Fast Ethernet Din-Rail Switch, 1Gbps
Sale price£92.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PE80 8-port industrial switch, Fast Ethernet, PoE+, DIN rail mount
Sale price£134.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PELC50 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch
Sale price£59.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PELC80 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch
Sale price£90.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PF11SFP Industrial SFP to Gigabit PoE+ Media Converter
Sale price£70.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

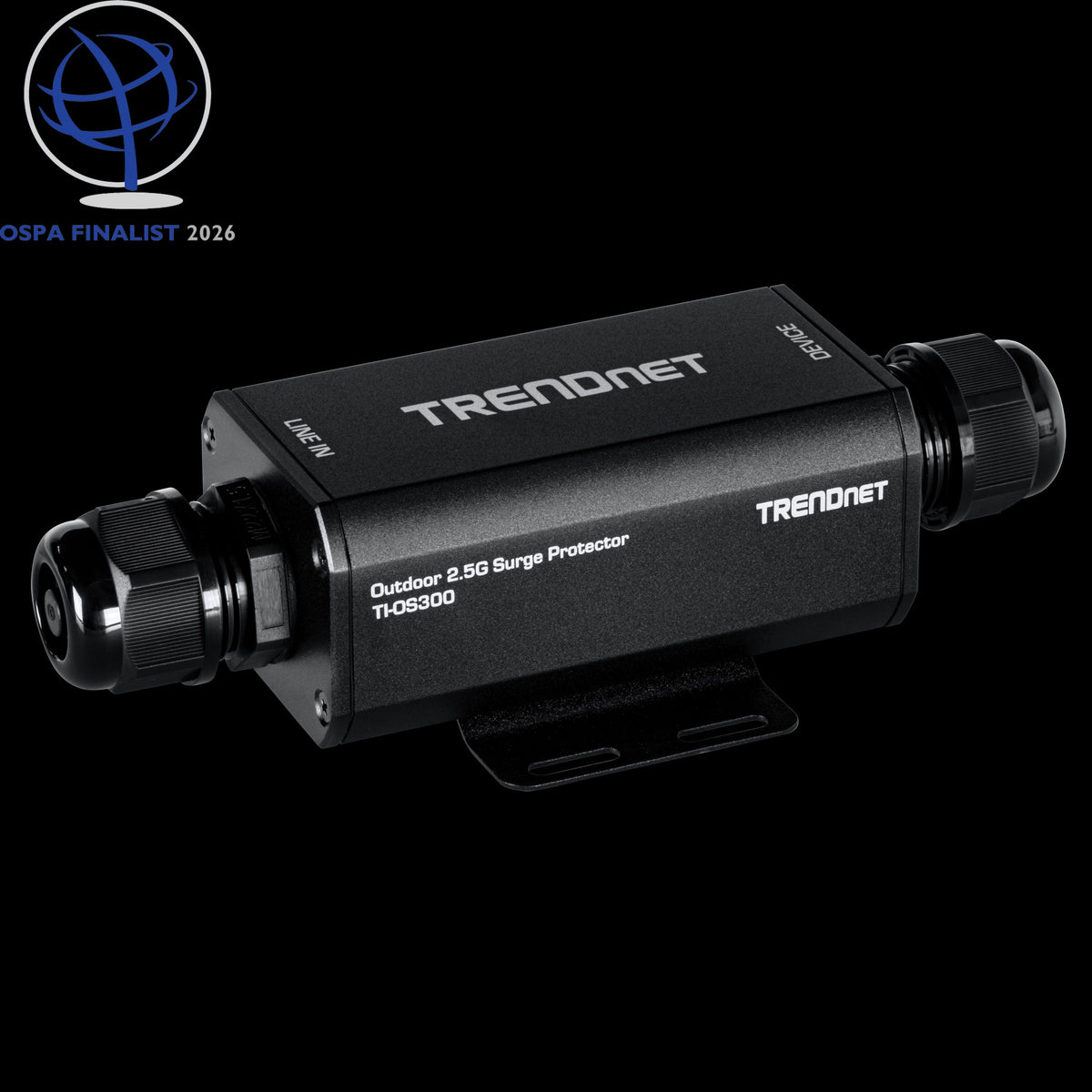

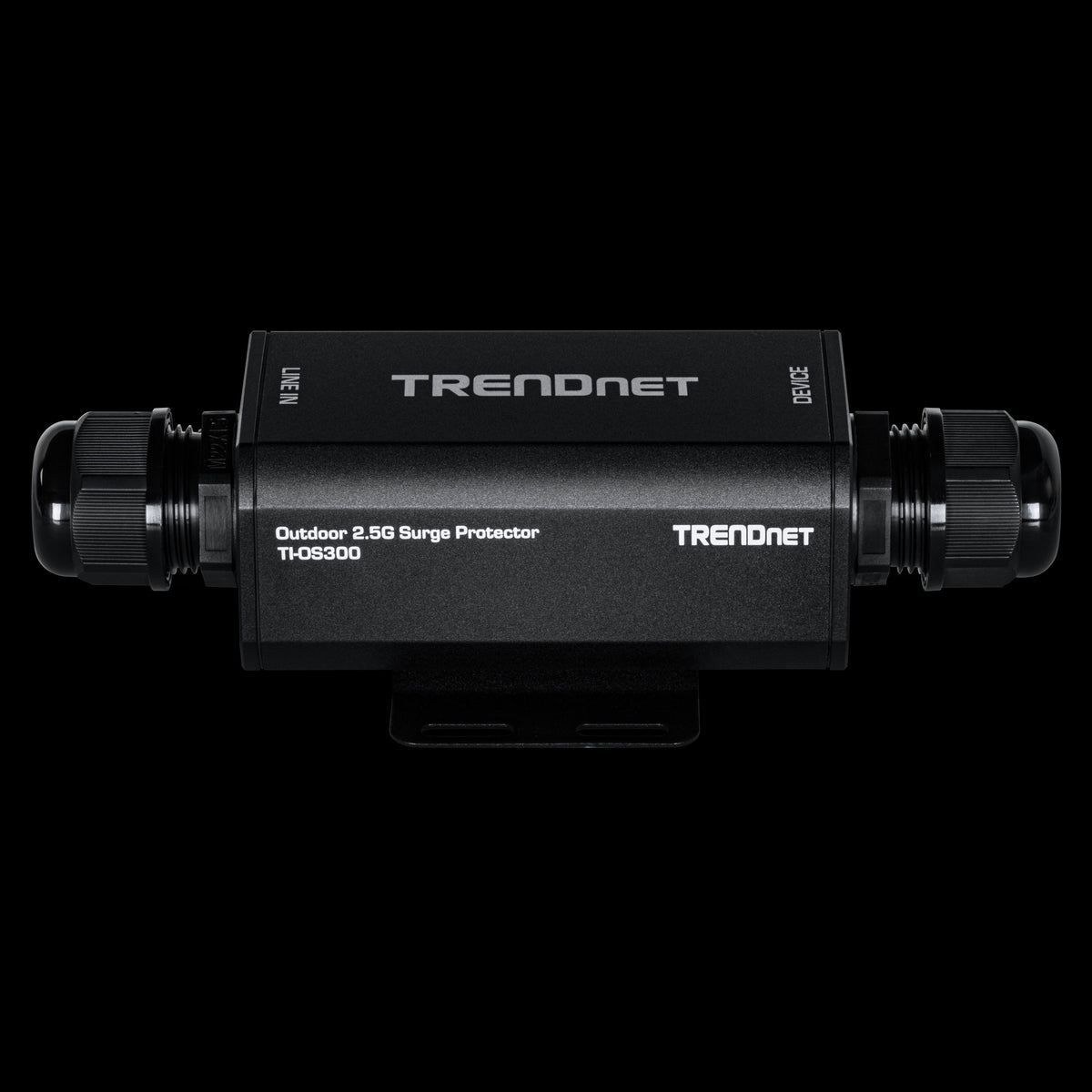

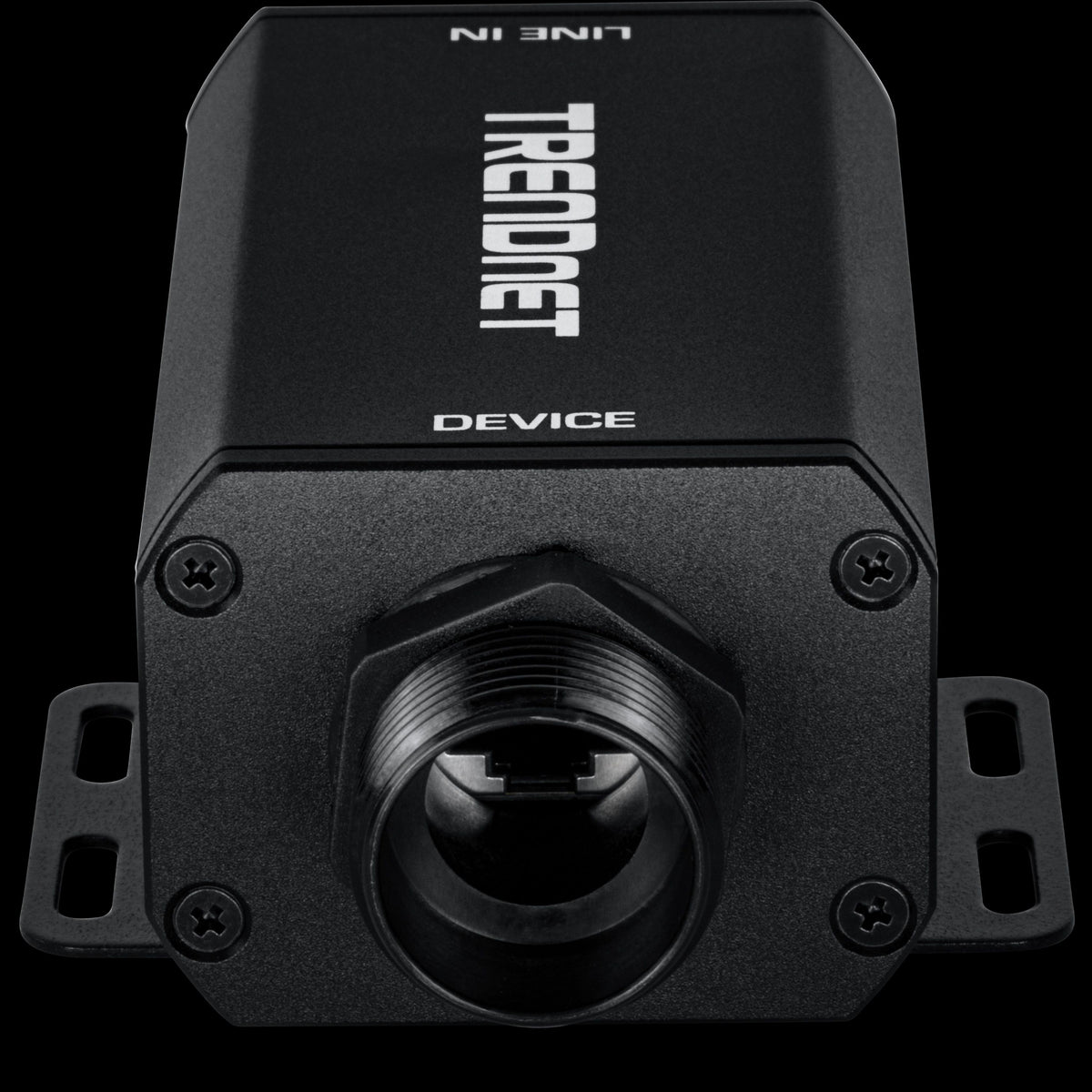

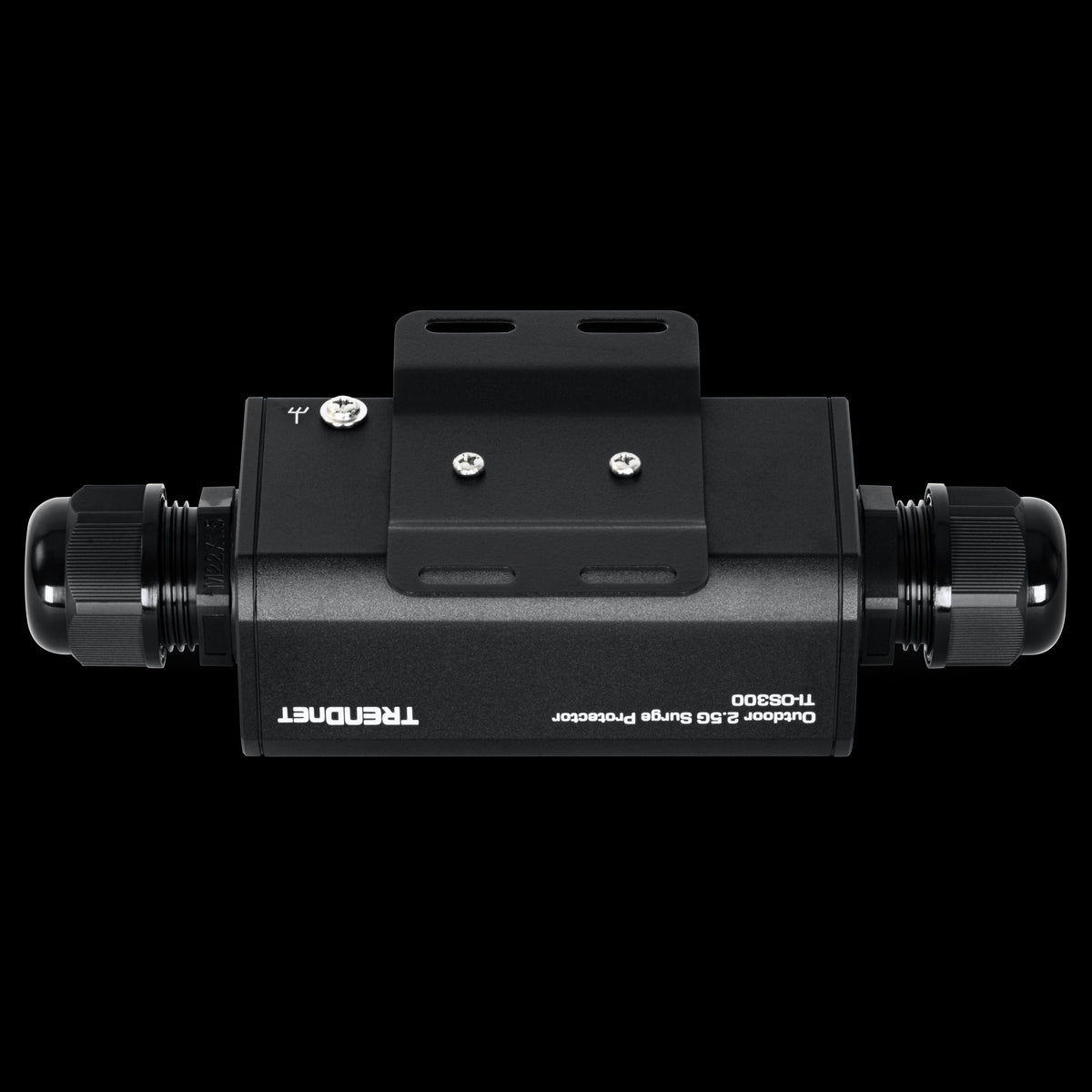

The TRENDnet TI-OS300 Outdoor 2.5G PoE++ Ethernet Surge Protector is designed to safeguard network connections with two 2.5Gbps RJ45 Ethernet ports and a ground terminal. It supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices, operating reliably in temperatures ranging from -40° to 75° C (-40° to 167° F). The IP67-rated metal enclosure and Ethernet cable glands provide robust protection against environmental factors. The surge protector features line to line and line to ground protection modes, gas discharge tube (GDT) protection with a nominal discharge current of 10kA, and meets IEC 61643-21 and IEC 61000-4-5 standards. Its compact design includes a detachable mounting bracket, and it is NDAA / TAA compliant for use in the U.S. and Canada.
Main Features
- Two 2.5Gbps RJ45 Ethernet ports and ground terminal
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
- Operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67-rated metal enclosure and Ethernet cable glands
- Line to line and line to ground protection modes
- Gas discharge tube (GDT) protection with a nominal discharge current (8/20s) of 10kA and clamping voltage of 20V at 1kA
- Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards
- Compact design with detachable mounting bracket
- NDAA / TAA compliant (U.S. and Canada only)
Specifications
| Connectivity Technology | Wired |
|---|---|
| Ethernet | Yes |
| Features | Compact design with detachable mounting bracket; Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards; Gas discharge tube (GDT) protection with a nominal discharge current (8/20s) of 10kA and clamping voltage of 20V1kA; IP67-rated metal enclosure and Ethernet cable glands; Line to line and line to ground protection modes; NDAA / TAA compliant (U.S. and Canada only); Operating temperature range of -40°– 75° C (-40° – 167° F); Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices; Two 2.5Gbps RJ45 Ethernet ports and ground terminal |
| Height | 42.0mm |
| Length | 170.0mm |
| Limited Warranty | 3-Year |
| NDAA Compliant | Yes |
| Number of Ports | 2 |
| Package Contents | 2 x Detachable cable glands; Mounting bracket; TI-OS300 |
| Product Series | V1 |
| Product Type | Surge Protector |
| TAA Compliant | Yes |
| Weight | 298.00g |
| Width | 55.0mm |
| CE Marking | Yes |
| Connection Type | Ground terminal; RJ45 |
| Dimensions | 170 mm x 55 mm x 42 mm |
| MTBF | 2,097,667 hours at 25°C |
| Number of Outlets | 2 |
| Operating Humidity | 95% (Non-condensing) |
| Operating Temperature (T-T) | -40-75°C |
| RoHS Compliant | Compliant |
| Sector | Data Comm & Networking |
| WEEE Compliant | Out of Scope |
