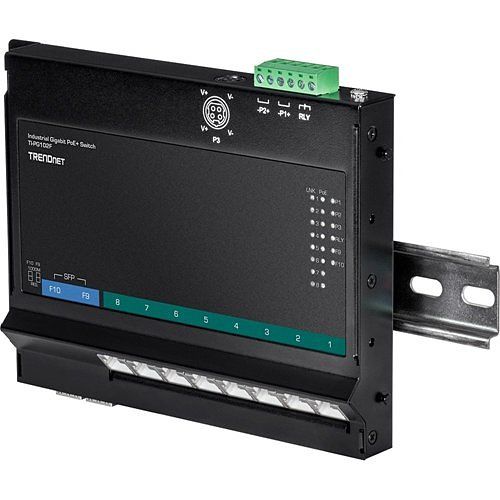

TRENDnet TI-PG102F 10-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |

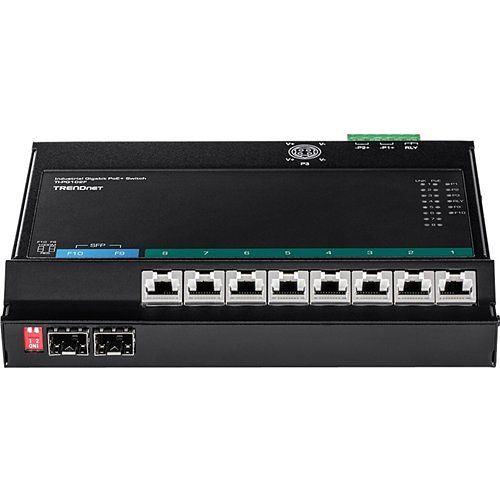

- 8 x Gigabit PoE+ ports

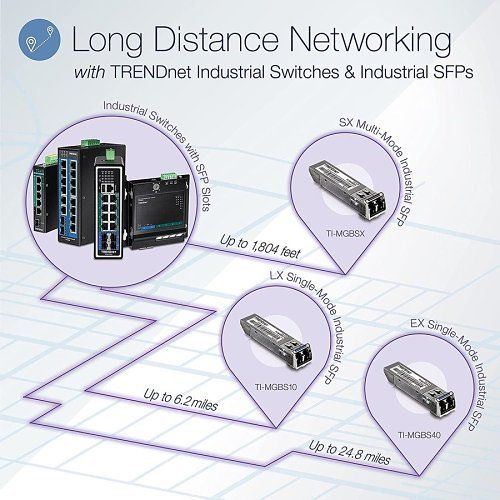

- 2 x Gigabit SFP slots
- 240W PoE power budget
- 20Gbps switching capacity
- Forwarding rate: 14.88Mpps (64-byte packet size)
- Supports jumbo frames up to 10KB
Frequently bought together
Product details

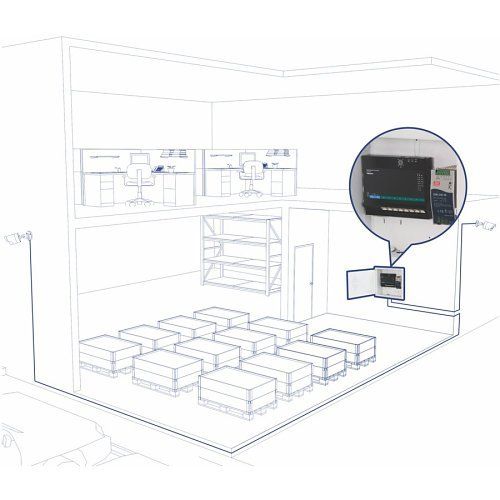

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

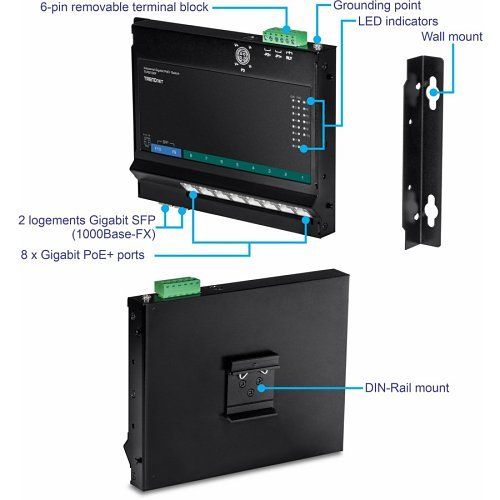

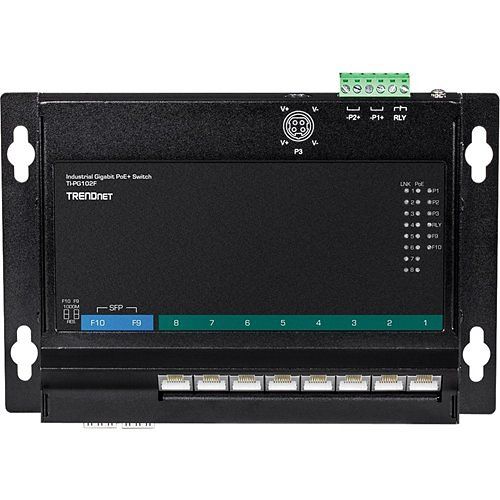

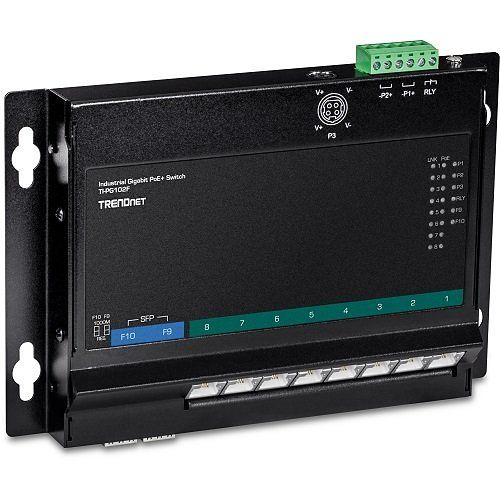

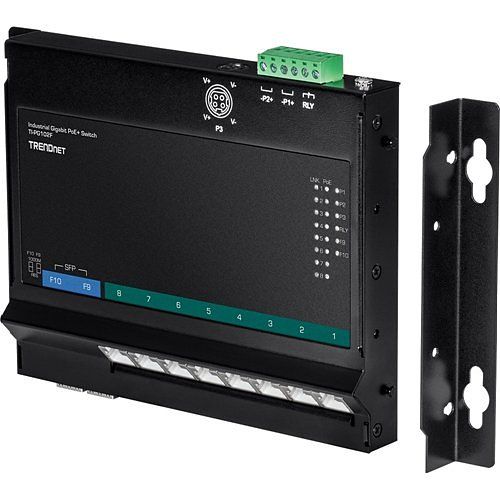

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
A 240W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
PACKAGE CONTENTS
TI-PG102F
Quick Installation Guide
Removable terminal block

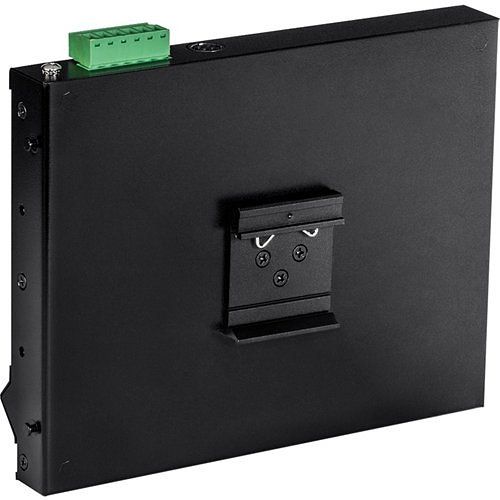

DIN-Rail and magnetic wall mount kits
- 8 x Gigabit PoE+ ports
- 2 x Gigabit SFP slots
- 240W PoE power budget
- 20Gbps switching capacity
- Forwarding rate: 14.88Mpps (64-byte packet size)
- Supports jumbo frames up to 10KB
- Hardened IP30 rated metal housing
- Includes DIN-Rail Bracket and magnetic wall mount kit
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Redundant power inputs with overload current protection
Specifications
| Depth | 584.20mm |
|---|---|
| Environmental Certification | CE; Freefall (IEC 60068-2-32); Shock (IEC 60068-2-27); Vibration |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Features | 2 x Gigabit SFP slots; 20Gbps switching capacity; 240W PoE power budget; 8 x Gigabit PoE ports; Alarm relay triggered by power failure; Forwarding rate: 14.88Mpps (64-byte packet size); Hardened IP30 rated metal housing; Includes DIN-Rail bracket and magnetic wall mount kit; Operating temperature range of -40 to 75 deg C (-40 to 167 deg F); Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048 and 48VDC3000); Redundant power inputs with overload current protection; Supports jumbo frames up to 10KB |
| Frequency | 50Hz |
| Height | 254.00mm |
| Input Voltage | 100V AC; 240V AC |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | Wall Mount |
| NDAA Compliant | Yes |
| Network Technology | 1000Base-T |
| Number of SFP Slots | 2 |
| Package Contents |
|
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | No |
| PoE Budget | 240W |
| Power Consumption | 4.8000W |
| Power Source | AC Power |
| Product Line | Industrial |
| Product Series | TI-PG102F |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 10 |
| Width | 533.40mm |
| Country of Origin | TW |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | No |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Power over Ethernet (PoE) | Yes |
| Redundant Power Supply | Yes |
| RoHS Compliant | Compliant |
| Shared SFP Slot | Yes |
| Uplink Port | No |
| WEEE Compliant | Compliant |
