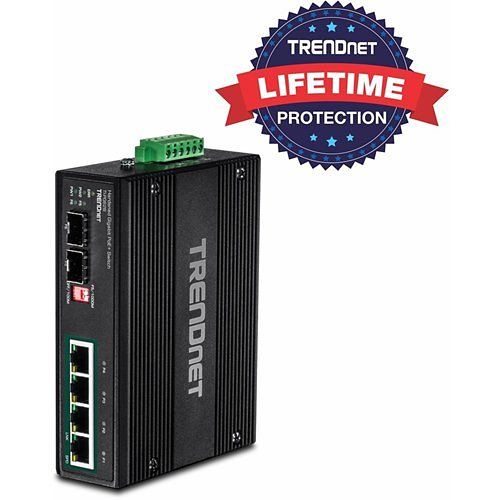

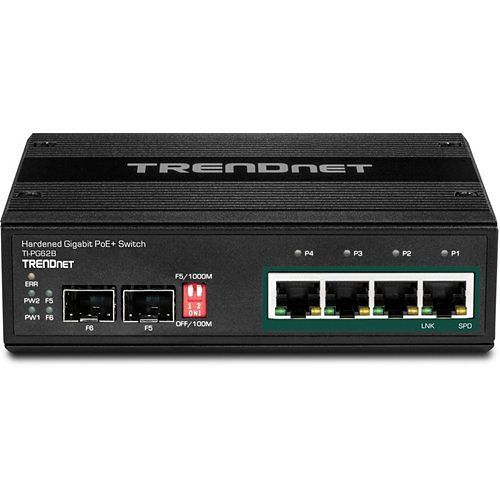

TRENDnet TI-PG62B 6-Port Industrial Gigabit PoE+ Din-Rail Switch
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- 60 - 120W power budget
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
Frequently bought together
Product details
TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.
PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices.
Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).

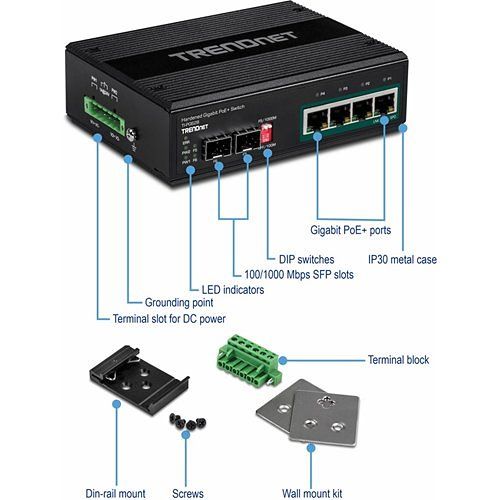

Network Ports

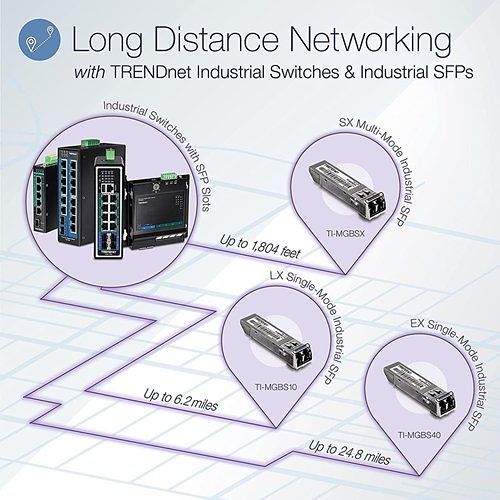

4 x Gigabit PoE+ ports and 2 x dedicated SFP slots

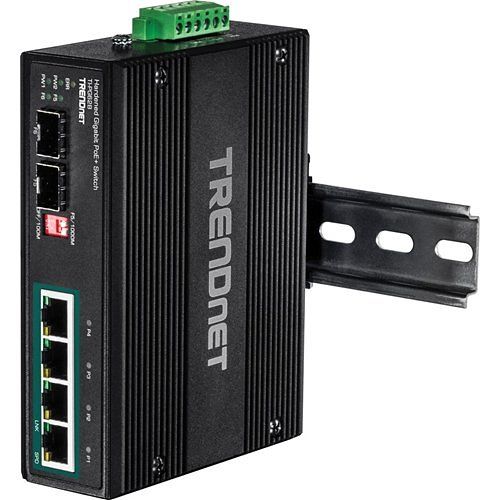

DIN-Rail / Wall Mounts

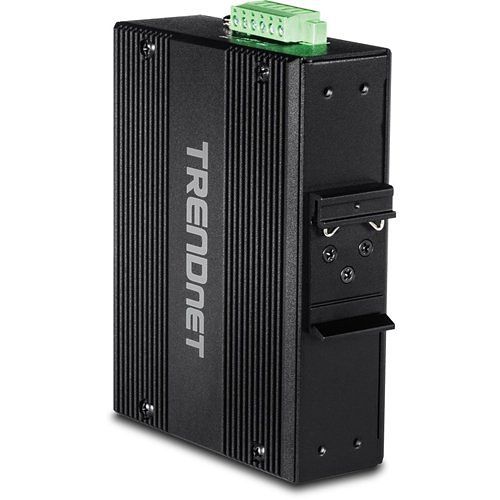

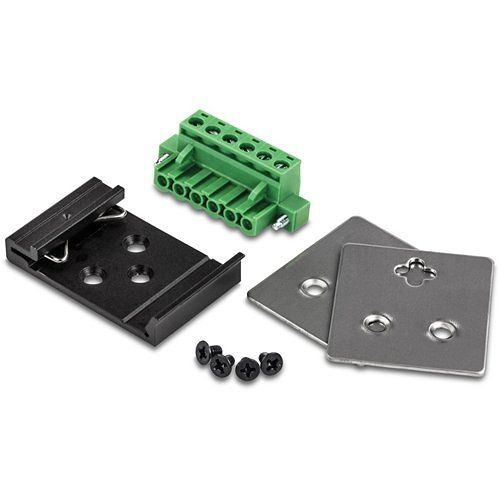

IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
- 60 - 120W power budget
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
Specifications

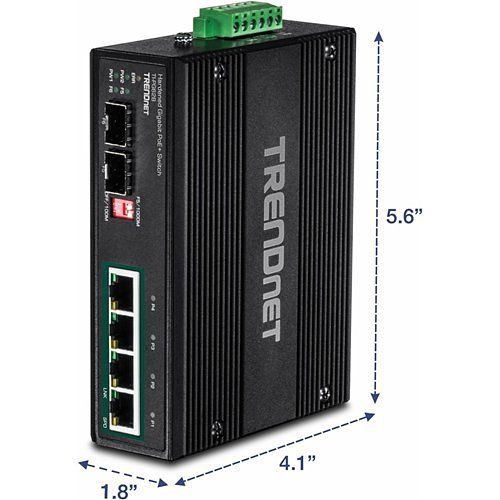

| Depth | 228.60mm |
|---|---|
| Environmental Certification | RoHS; WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Features | Auto store and forward architecture; Automatic address learning and address aging; Auto-Negotiation; Dual redundant power inputs; ESD 6KV support; Hardened components rated for extreme temperatures; Supports 12/24/48 power inputs; Voltage booster boost up to 55V DC |
| Height | 76.20mm |
| Input Voltage | 48V DC |
| Length | 142.20mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Mount Type | DIN Rail Mount; Wall Mount |
| NDAA Compliant | Yes |
| Network Technology | 1000Base-T |
| Number of SFP Slots | 2 |
| Package Contents |
|
| Packaged Quantity | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120W |
| Power Consumption | 5.7600W |
| Power Source | DC Power |
| Product Line | Industrial |
| Product Series | TI |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 6 |
| Width | 177.80mm |
| Country of Origin | TW |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | Yes |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Power over Ethernet (PoE) | Yes |
| Redundant Power Supply | Yes |
| RoHS Compliant | Compliant |
| Shared SFP Slot | No |
| Uplink Port | No |
| WEEE Compliant | Compliant |
