| Connector Type |
1 x Gigabit port; 3-pin removable terminal block; 4 x Gigabit PoE+ ports |
| Ethernet |
Yes |
| Features |
Auto store and forward architecture; Automatic address learning and address aging; Auto-Negotiation; Electro Magnetic Compliance; ESD 6kV protection; Grounding Point; Hardened components rated for extreme temperatures; Jumbo Frame (9KB); Shock and Vibration Resistant |
| Ingress Protection Rating |
IP30 |
| Input Voltage |
48-56V DC |
| Limited Warranty |
2-Year |
| Maximum Data Transfer Rate |
2000.0Mbps |
| Mount Type |

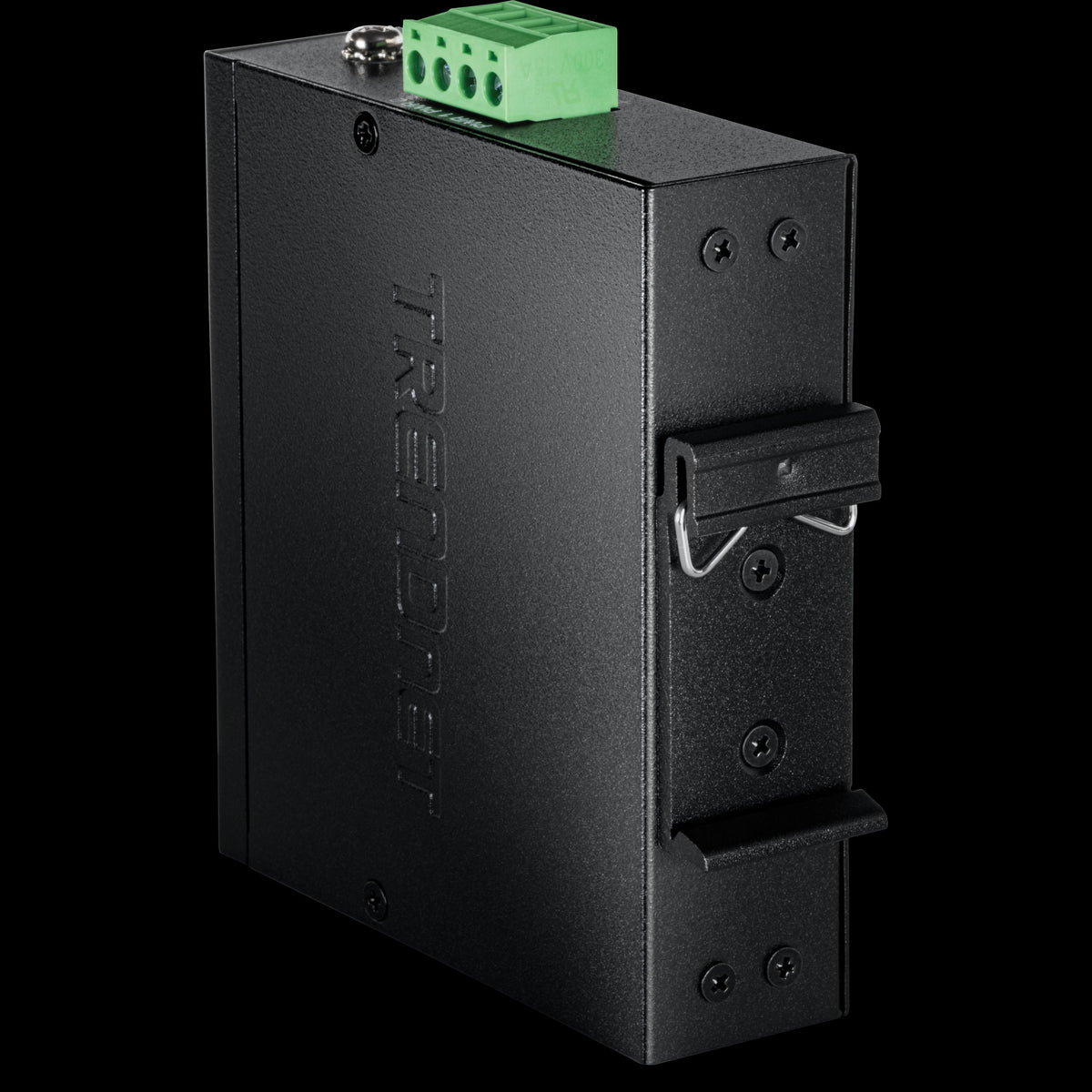

DIN Rail Mount; Wall Mount |
| NDAA Compliant |
Yes |
| Network Switch Type |
Unmanaged |
| Number of Network (RJ-45) Ports |
5 |
| Number of Ports |
5 |
| Operating Power Consumption |
3W |
| Package Contents |
DIN-rail and wall mount kit; Quick Installation Guide; Removable terminal block; TI-PGLC50 |
| PoE |
Yes |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
90W |
| Power Consumption |
3.3600W |
| Product Type |
Switch |
| TAA Compliant |
Yes |
| Weight |
238.00g |
| Maximum Operating Temperature |
75°C |
| Type |

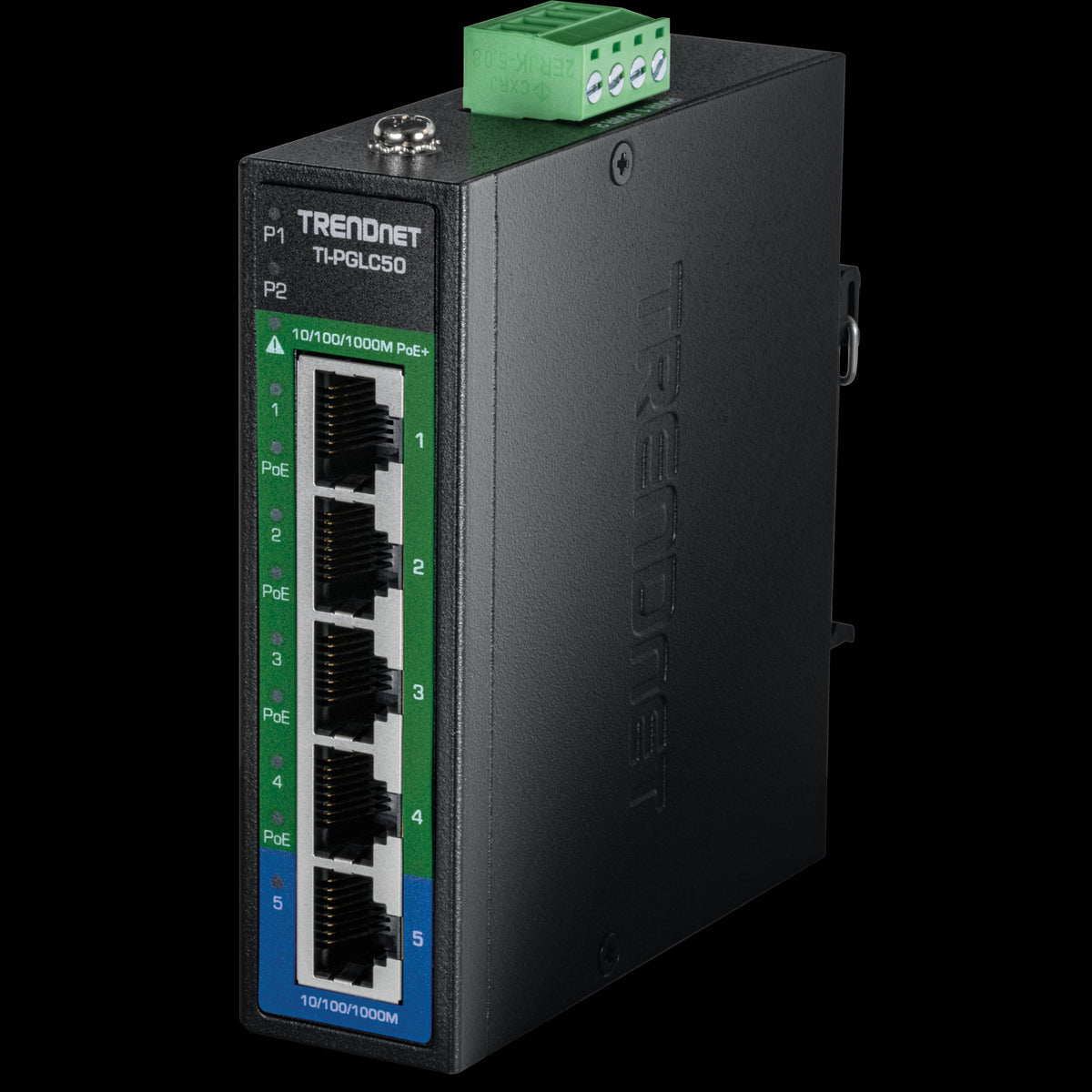

Industrial Gigabit PoE+ DIN-Rail Mini Switch |
| Buffer |
125KB |
| Dimensions |
100.5 mm x 59 mm x 25.5 mm |
| Interfaces/Ports Details |
16 x Gigabit ports (10/100/1000Mbps); 6-pin removable terminal block |
| Minimum Operating Temperature |
-40°C |
| MTBF |
1,342,000 hours at 25°C |
| Networking Standards |
IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of Ethernet Ports |
5 |
| Operating Humidity |
95% (Non-condensing) |
| Operating Temperature (T-T) |
-40-75°C |
| Power over Ethernet (PoE) |
Yes |
| Power Supply |
48-56V DC |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Out of Scope |
