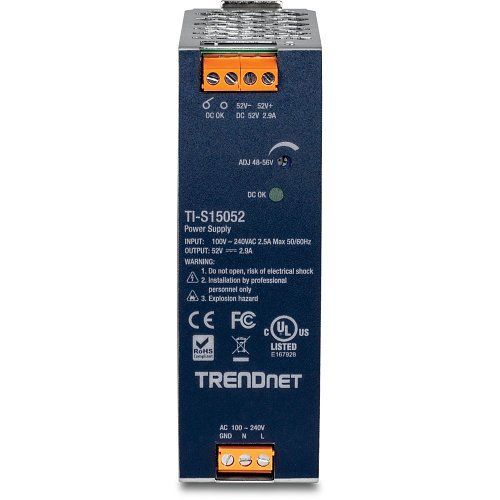

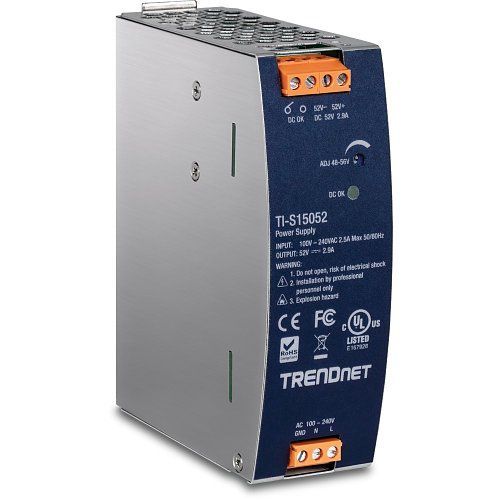

TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function, 52V DC, 2.89A AC/DC, 150W
SKU: TI-S15052Brand: TRENDnet
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function, 52V DC, 2.89A AC/DC, 150W
£89.35
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 1.8A 127 - 370V DC; Output: 150W, 48 - 56V, 0 - 2.9A; DIN-rail: TS-35/7.5 or 15
- 150W POWER: The UL508 approved industrial power supply provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F)
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.96) helps eliminate unusable reactive power
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
Frequently bought together
TRENDnet
TRENDnet TI-S24048 240W Single Output Industrial DIN-Rail Power Supply
Sale price£157.95
In stock
TRENDnet
TRENDnet TI-S24052 DIN-Rail Power Supply with PFC Function, 52V DC, 4.61A AC/DC, 240W
Sale price£137.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-S400 RS232 to RS422/RS485 Converter Adapter, 4-Pack
Sale price£26.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-S48048 8-Port Unmanaged 2.5G Switch, 40Gbps
Sale price£262.30
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-SG104 Industrial Gigabit UPoE Splitter
Sale price£74.05
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S15052, supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 1.8A 127 - 370V DC; Output: 150W, 48 - 56V, 0 - 2.9A; DIN-rail: TS-35/7.5 or 15
- 150W POWER: The UL508 approved industrial power supply provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F)
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.96) helps eliminate unusable reactive power
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
- PASSIVE COOLING: The industrial power supply cools itself by natural air convection

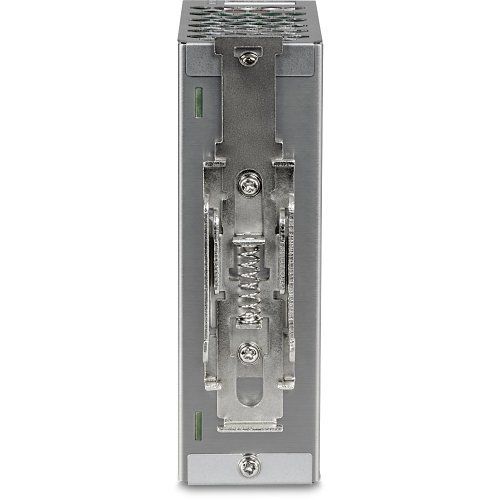

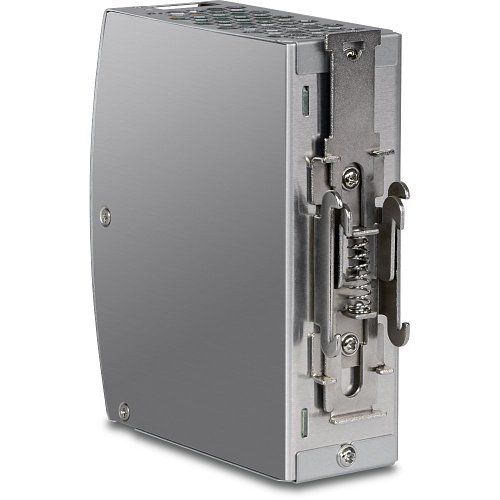

- DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
- 100% Peak Load Capability; UL 508 approved
- NDAA / TAA compliant (U.S. and Canada only)
Main Features
- Industrial power supply with integrated DIN-Rail mount
- Provides up to 150W of power (52V DC, 2.89A)
- Supported output voltage 48 - 56V DC
- High efficiency 93% and low power dissipation
- 150% Peak load capability
- Built-in active Power Factor Controller
- Cooling by natural air convection
- Protections, Overload, short circuit, over power, over voltage, over current, over temperature
- UL 508 Approved
- Built-in DC OK relay contact
Specifications
| Depth | 102.0mm |
|---|---|
| Environmental Certification | CE; FCC; UL |
| Environmentally Friendly | Yes |
| Height | 125.2mm |
| Input Voltage | 264V AC; 90V AC |
| Limited Warranty | 1-Year |
| Mount Type | DIN Rail Mount |
| Output Current | 2A |
| Output Power | 150W |
| Output Voltage | 48V DC; 56V DC |
| Package Contents | TI-S15052 |
| Product Type | Proprietary Power Supply |
| TAA Compliant | Yes |
| Weight | 542.00g |
| Width | 40.0mm |
| Manufacturer | TRENDnet |
| Number of Fans | 1 |
| RoHS Compliant | Compliant |
| Sector | Video Surveillance |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
TRENDnet TI-S15052 DIN-Rail Power Supply with PFC Function, 52V DC, 2.89A AC/DC, 150W Product datasheet · TI-S15052 · PDF Open datasheet
