TRENDnet TI-S24052 DIN-Rail Power Supply with PFC Function, 52V DC, 4.61A AC/DC, 240W
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F)
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
Frequently bought together
Product details
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F)
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
- PASSIVE COOLING: The industrial power supply cools itself by natural air convection
- DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
- NDAA / TAA compliant
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power, and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° - 70° C (-13° - 158° F).
240W PowerProvides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points
Active PFCBuilt-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
ProtectionsOverload, short circuit, over voltage, over current, and over temperature protections
Passive CoolingThe industrial power supply is cooled by natural air convection

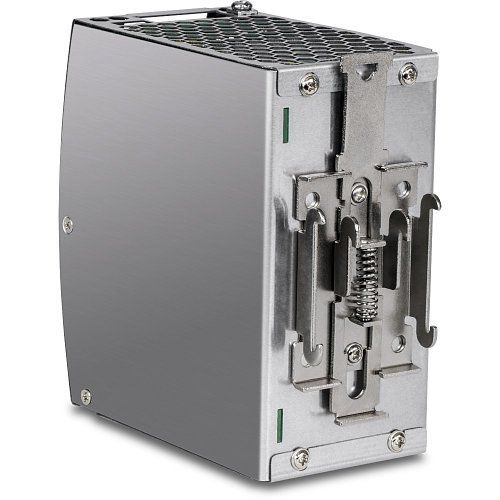

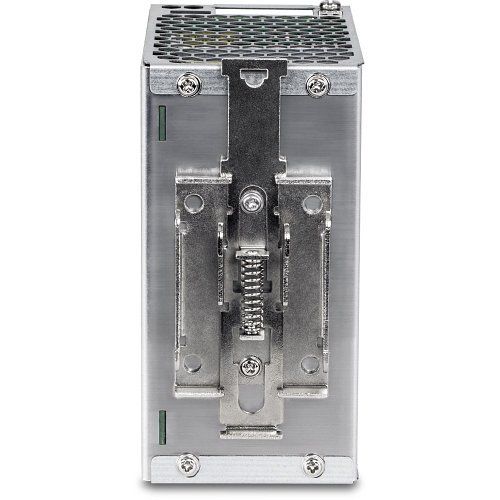

DIN-Rail MountThe DIN-Rail power supply features a metal enclosure with integrated DIN-Rail mount
Wide Operating TemperatureThe hardened power supply is designed for industrial environments with a wide operating temperature range of -25° - 70° C (-13° - 158° F)
- Industrial power supply with integrated DIN-Rail mount
- Provides up to 240W of power (52V DC, 4.61A)
- Supported output voltage 48 - 56V DC
- High efficiency 94% and low power dissipation
- 150% Peak load capability
- Built-in active Power Factor Controller
- Cooling by natural air convection
- Protections, Overload, short circuit, over power, over voltage, over current, over temperature
- UL 508 Approved
- Built-in DC OK relay contact
Specifications
| Depth | 114.0mm |
|---|---|
| Environmental Certification | CE; FCC; UL |
| Environmentally Friendly | Yes |
| Height | 63.0mm |
| Input Voltage | 264V AC; 90V AC |
| Limited Warranty | 1-Year |
| Mount Type | DIN Rail Mount |
| Output Current | 4A |
| Output Power | 240W |
| Output Voltage | 48V DC; 56V DC |
| Package Contents | TI-S24052 |
| Product Type | Proprietary Power Supply |
| TAA Compliant | Yes |
| Weight | 844.00g |
| Width | 124.0mm |
| Manufacturer | TRENDnet |
| Number of Fans | 1 |
| RoHS Compliant | Compliant |
| Sector | Video Surveillance |
| WEEE Compliant | Compliant |
