| American Wire Gauge |
12AWG; 18AWG |
| Application/Usage |
Industrial environments |
| Compatibility |
Non-PoE devices; TRENDnet PoE++ switches or injectors |
| Depth |
90.0mm |
| Device Supported |
Non-PoE device |
| Ethernet |
Yes |
| Features |

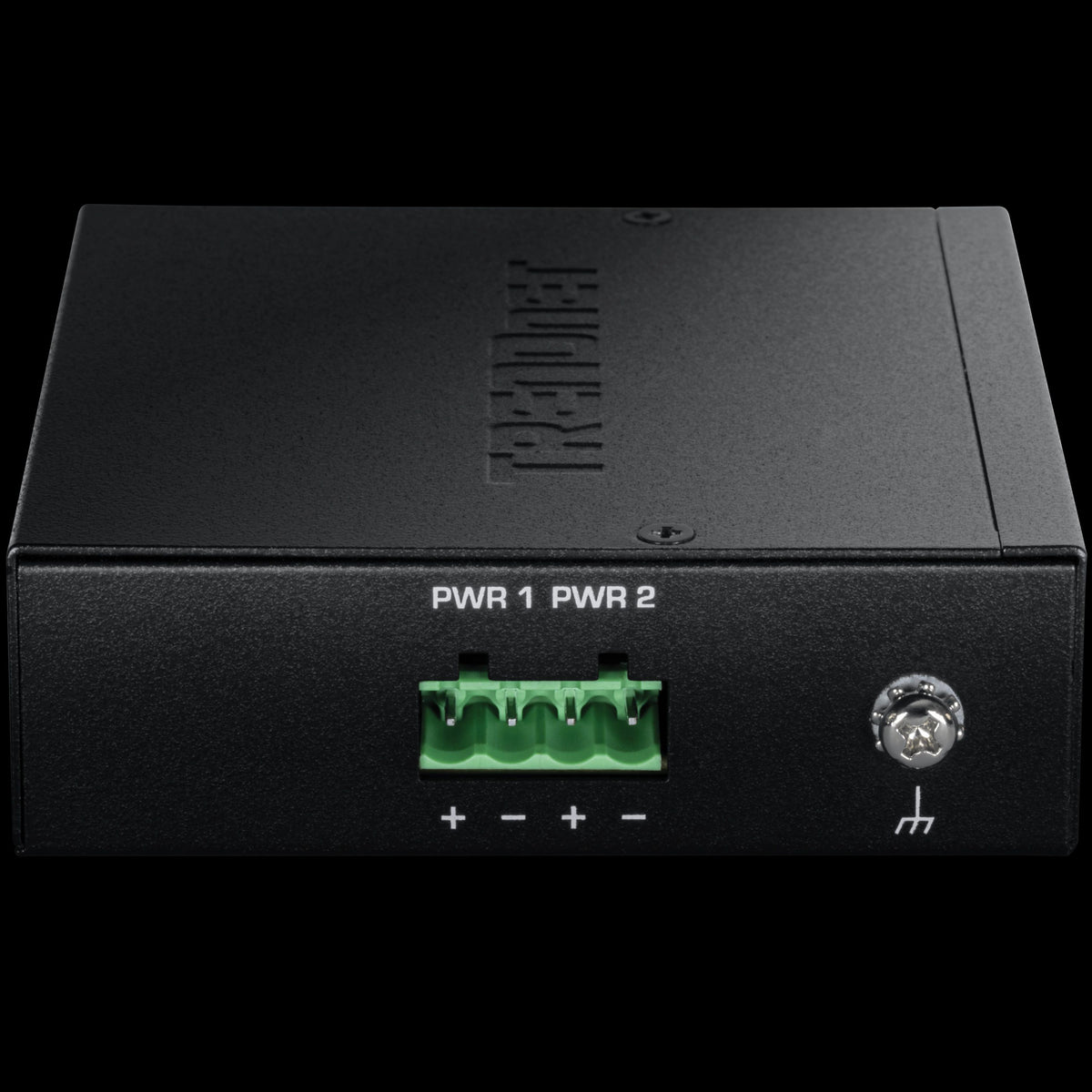

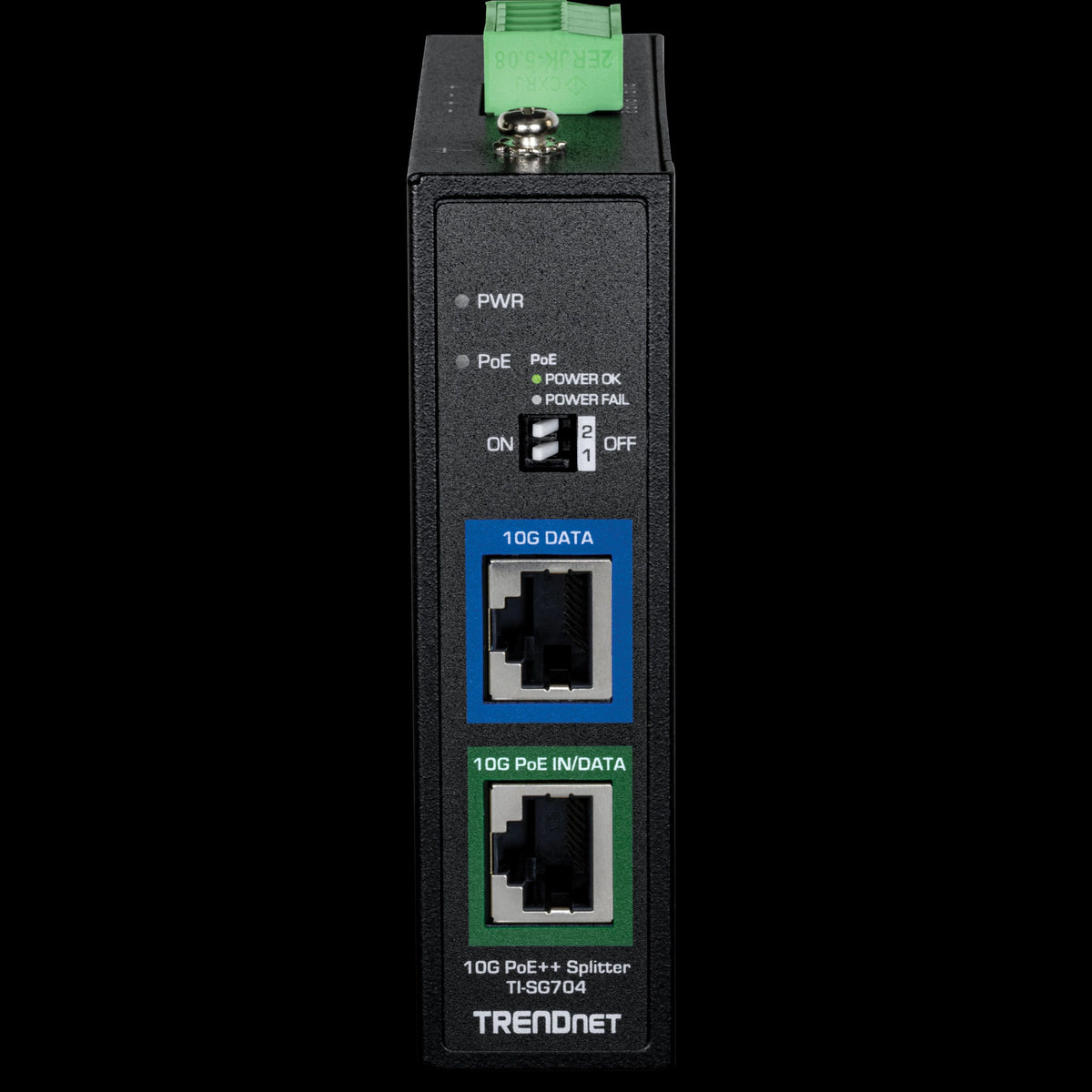

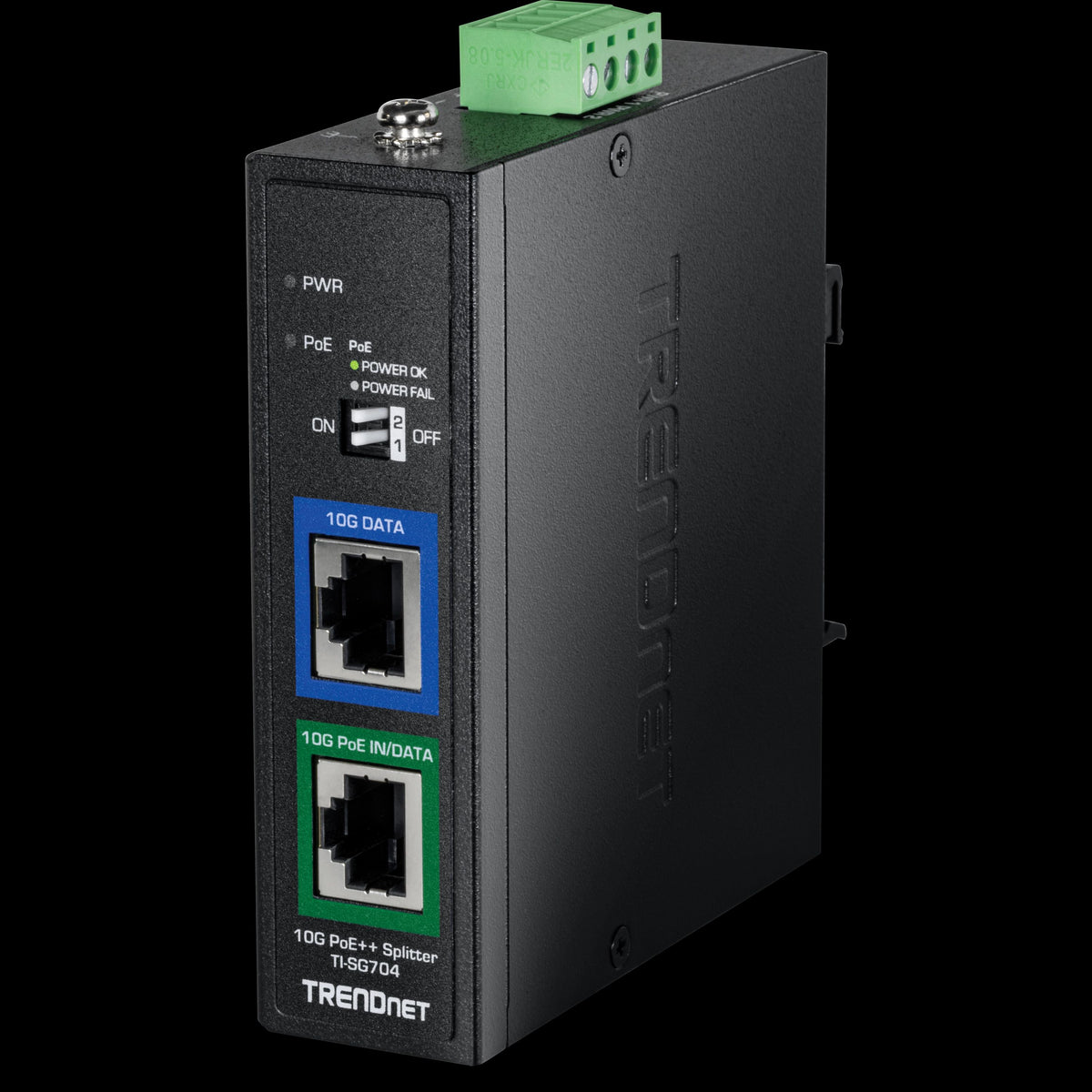

10G Ethernet support; Adjustable voltage output supports 12V, 16V, 24V or 48V devices; Dual DC power output terminal block; Extreme operating temperature range -40 to 75° C; IEEE 802.3bt compliant; IP50 rated metal enclosure; NDAA / TAA compliant; Power a non-PoE device up to 100m (328 ft.) away from PSE; Splits a 10G 90W PoE++ signal into separate power and data sources; Wall and DIN-Rail mounting options |
| Height |
99.0mm |
| Ingress Protection Rating |
IP50 |
| Limited Warranty |
3-Year |
| Material |
Metal |
| Maximum Data Transfer Rate |
10Gbps |
| Maximum Output Current |
2.3A |
| Maximum Output Power |
60W |
| Mount Type |

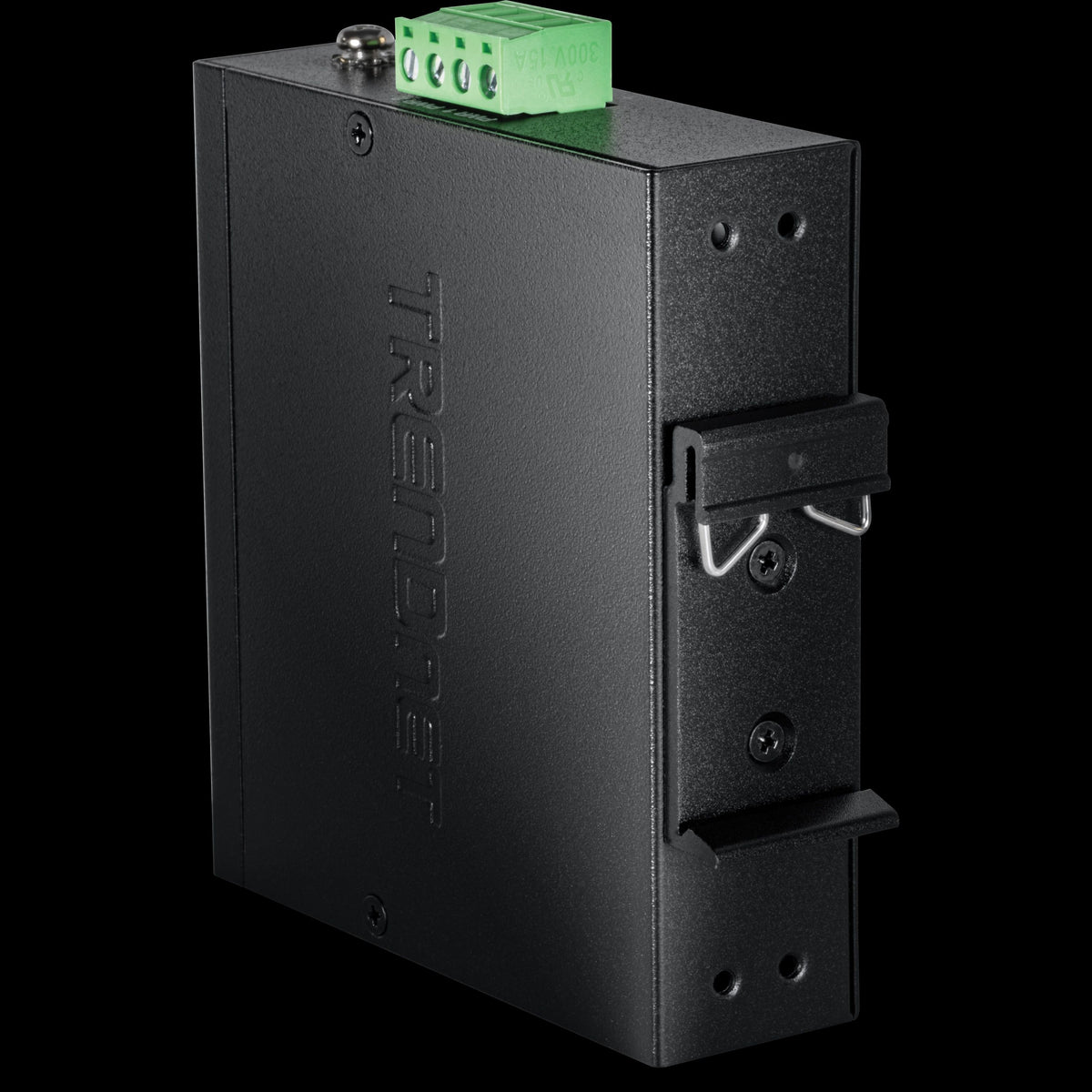

DIN Rail Mount; Wall Mount |
| NDAA Compliant |
Yes |
| Network (RJ-45) |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Number of Ports |
2 |
| Output Voltage |
12V; 16V; 24V; 48V |
| Package Contents |
DIN-rail and wall-mount kit; Removable terminal block; TI-SG704 |
| PoE (RJ-45) Port |
Yes |
| Power Consumption |
1W |
| Power Source |
PoE (Power over Ethernet) |
| Product Series |
Industrial |
| Product Type |
Power Splitter |
| Status Indicators |
LED indicator |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
2 |
| Weight |
432.00g |
| Width |
28.0mm |
| Maximum Operating Temperature |
75°C |
| Certifications & Standards |
CE; FCC; Freefall (IEC 60068-2-31); IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3an; IEEE 802.3at; IEEE 802.3bt; IEEE 802.3bz; IEEE 802.3u; LVD; Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Connection Type |
RJ-45; Terminal Block |
| Dimensions |
99mm x 90mm x 28mm |
| Localization |
English |
| Maximum Distance |
100.0m |
| Maximum Output Voltage |
48V |
| Minimum Operating Temperature |
-40°C |
| Minimum Output Voltage |
12V |
| MTBF |
812314hr |
| Networking Standards |
IEEE 802.3bt |
| Number of Ethernet Ports |
2 |
| Operating Relative Humidity (H-H) |
95% (Non-condensing) |
| Operating Temperature (T-T) |
-40-75°C |
| Power over Ethernet (PoE) |
Yes |
| RoHS Compliant |
Compliant |
| Surge Protection |
Yes |
| WEEE Compliant |
Out of Scope |
