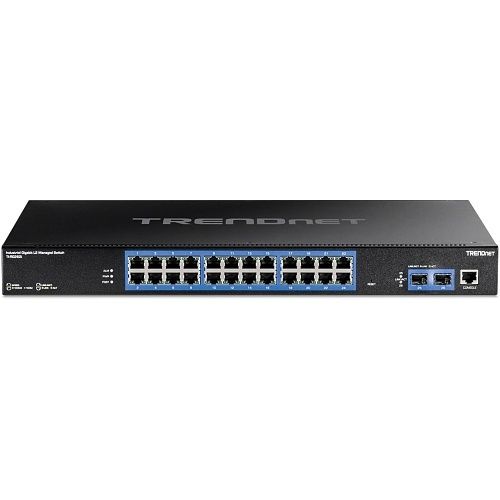

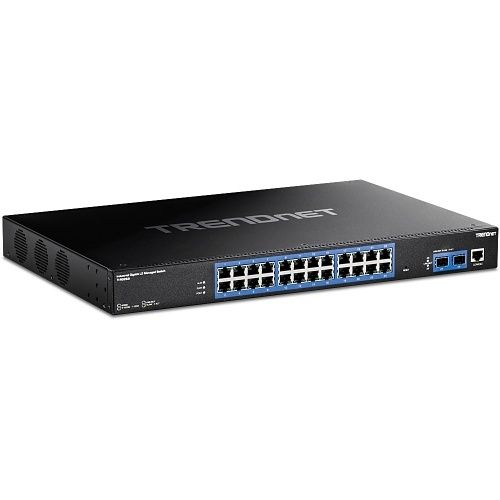

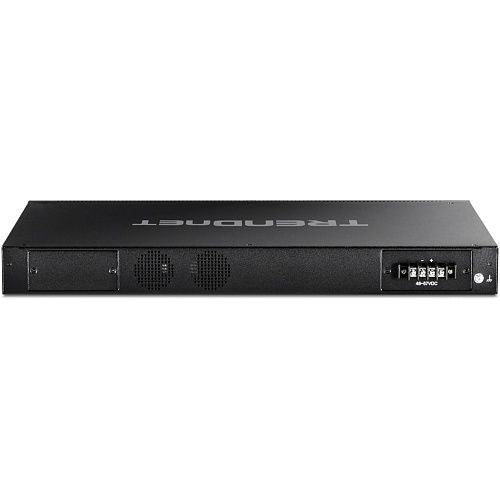

TRENDnet's Industrial Gigabit L2 Managed Rackmount Switch offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° to 70°C (-40° to 158°F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP ports that support 100/1000Base-FX SFP modules for long distance fiber networking applications. This industrial layer 2 rackmount switch feature a fanless design that eliminates operating noise and lowers energy consumption. This Industrial Gigabit L2 Managed Rackmount Switch provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, and SNMP monitoring.
Main Features
24x Gigabit ports
2x SFP Ports
Supports 100/1000Base-FX fiber SFP modules
52 Gbps Switching capacity
Hardened IP30 rated metal housing
Operating temperature range of -40° to 70°C (-40° to 158°F)
Supports LACP, STP / RSTP, VLAN, and IGMP Snooping
IEEE 802.1p QoS with queue scheduling support
Supports Ethernet Ring Protection Switching (ERPS)
19" Rack mountable metal housing with included mounting kit
Specifications
Environmental Certification
CE; FCC
Ethernet Technology
10 Gbps
Features
Fanless
Height
44.00mm
Input Voltage
48-57V DC
Length
440.00mm
Limited Warranty
3-Year
Material
Metal
Media Type Supported
Optical Fiber; Twisted Pair
Mount Type
Rack Mount
Network (RJ-45)
Yes
Network Switch Type
Managed
Network Technology
1000Base-T; 100Base-TX; 10Base-T
Number of SFP Slots
2
Plug/Connector Type
Terminal Block
Power Consumption
20.0000W
Power Source
DC Power
Product Type
Switch
Receptacles
1 x Console Port (RJ-45); 2 x Gigabit SFP Port; 24 x Gigabit Port
