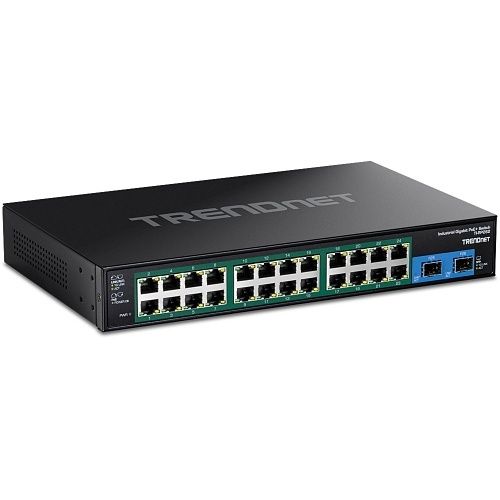

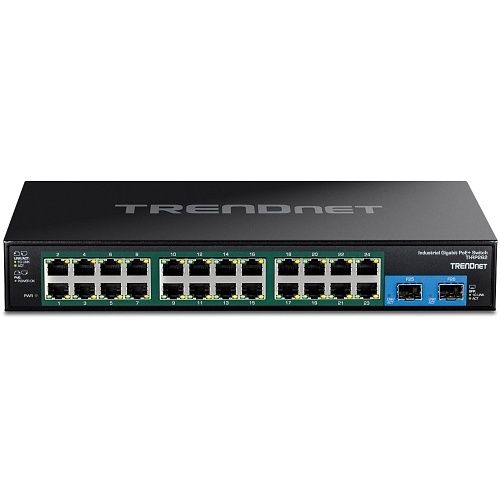

TRENDnet TI-RP262 26-Port Hardened Industrial Gigabit PoE+ Rackmount Switch
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- 24x Gigabit PoE+ ports
- 2x Gigabit fiber SFP ports
- 685W Full PoE power budget
- 52 Gbps Switching capacity
- Hardened IP30 rated metal switch
- 19" Rackmount brackets included
Frequently bought together
Product details
TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches each feature a rugged IP30 rated metal enclosure. These hardened PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° to 75°C (-40° to 167°F). Redundant power inputs with overload current protection on each hardened PoE+ switch minimizes network downtime. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial rackmount PoE+ switch. With these hardened PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
- 24x Gigabit PoE+ ports
- 2x Gigabit fiber SFP ports
- 685W Full PoE power budget
- 52 Gbps Switching capacity
- Hardened IP30 rated metal switch
- 19" Rackmount brackets included
- Extreme -40° to 75°C (-40° to 167°F) operating temperature range

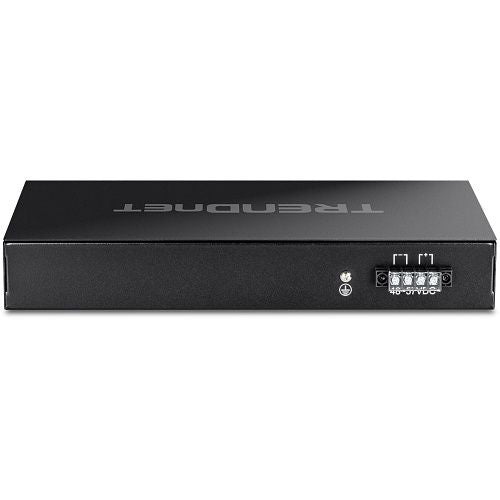

- Redundant power inputs with overload current protection
Specifications
| Environmental Certification | CE; FCC; LVD |
|---|---|
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gbps |
| Height | 45.00mm |
| Input Voltage | 48-57V DC |
| Length | 296.00mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Mount Type | Rack Mount |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Number of SFP Slots | 2 |
| Package Contents |
|
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 685W |
| Power Consumption | 5.7600W |
| Power Source | DC Power; PoE (Power over Ethernet) |
| Product Type | Switch |
| Receptacles | 2 x Gigabit Fiber SFP Ports; 24 x Gigabit PoE+ Ports |
| TAA Compliant | Yes |
| Total Number of Network Ports | 24 |
| Width | 180.00mm |
| Compatible Rack Unit | 1U |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of Total Expansion Slots | 2 |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Out of Scope |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
TRENDnet TI-RP262 26-Port Hardened Industrial Gigabit PoE+ Rackmount Switch Product datasheet · TI-RP262 · PDF Open datasheet
