| Connector Type |
3-pin removable terminal block; 8 x Gigabit PoE+ ports |
| Ethernet |
Yes |
| Features |
16Gbps switching capacity; 200W PoE+ power budget; 8 x Gigabit PoE+ ports; Extreme operating temperature range of -40° – 75°C (-40° – 167°F); Hardened IP30 rated metal mini switch; Includes DIN-Rail mount and wall mount brackets; NDAA / TAA compliant (U.S. and Canada only); Power supply sold separately (model: TI-S24052, TI-S24048) |
| Ingress Protection Rating |
IP30 |
| Input Voltage |
48-56V DC |
| Limited Warranty |
2-Year |
| Material |
Metal |
| Maximum Data Transfer Rate |
2000.0Mbps |
| Mount Type |

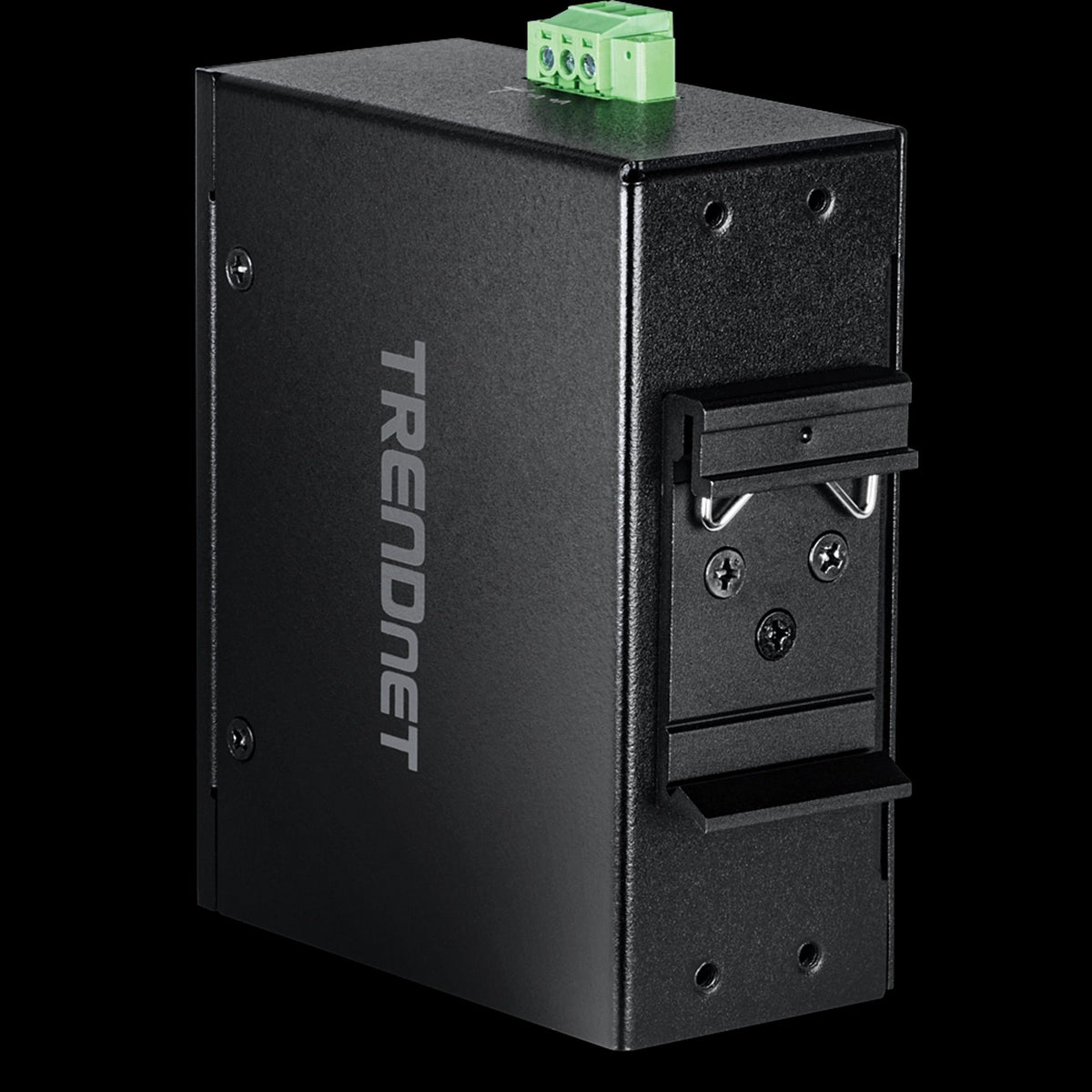

DIN Rail Mount; Wall Mount |
| NDAA Compliant |
Yes |
| Network Switch Type |
Unmanaged |
| Number of Ports |
8 |
| Operating Power Consumption |
4W |
| Package Contents |
DIN-rail and wall mount kit; Quick Installation Guide; Removable terminal block; TI-PGLC80 |

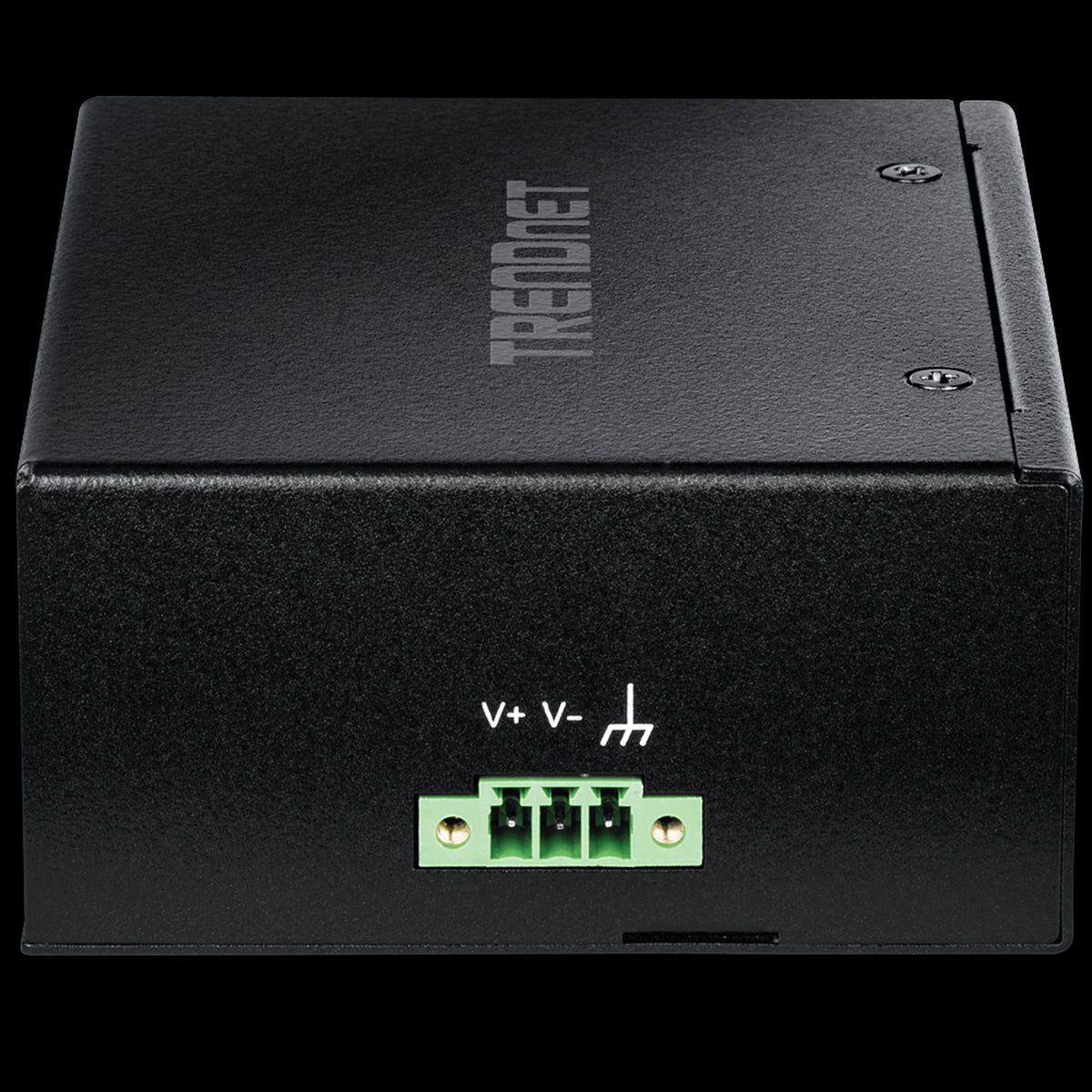

| Plug/Connector Type |
3-pin removable terminal block |
| PoE |
Yes |
| PoE (RJ-45) Port |
Yes |
| Power Consumption |
4.4800W |
| Product Type |
Switch |
| Status Indicators |
LED indicator |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
8 |
| Weight |
371.00g |
| Maximum Operating Temperature |
75°C |
| Type |

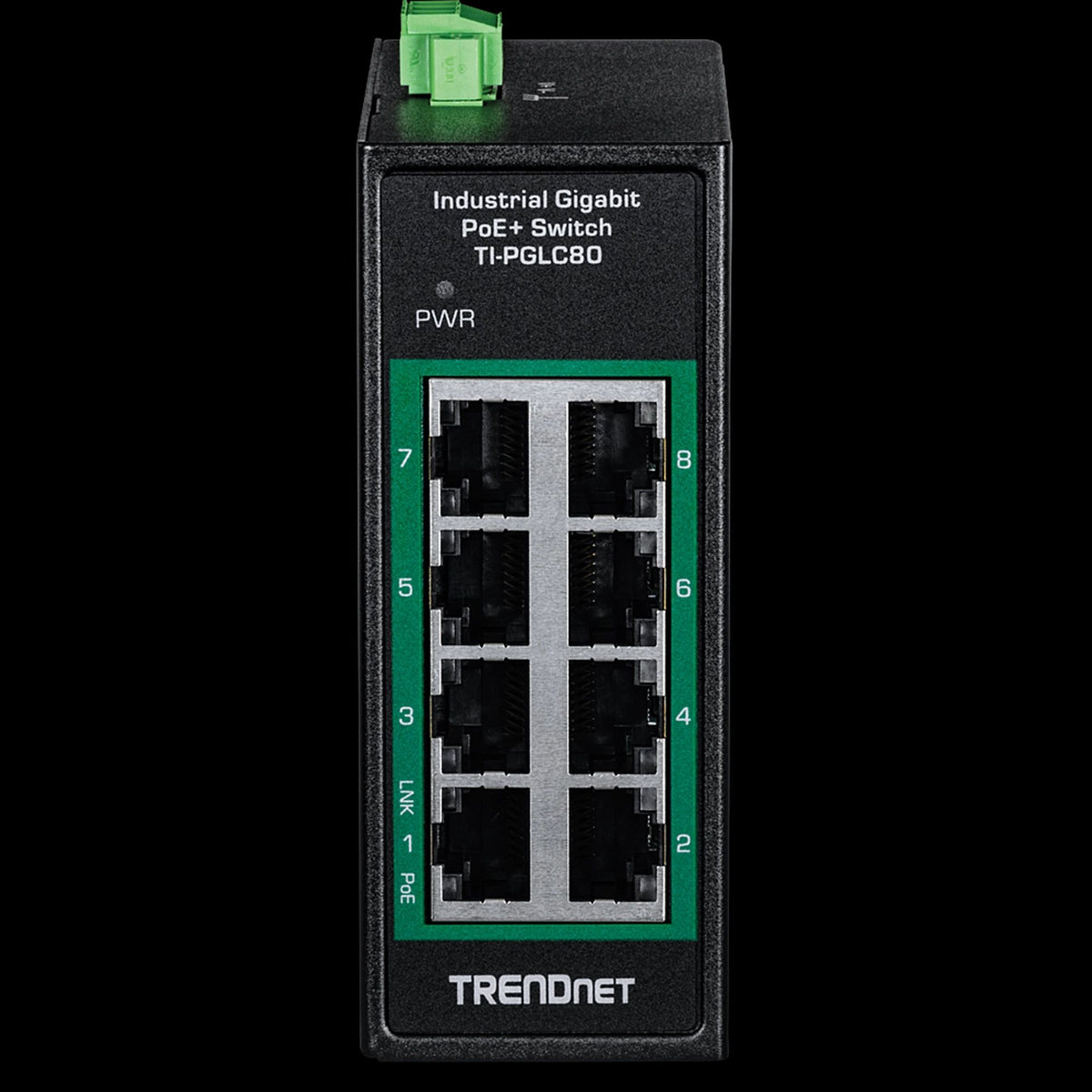

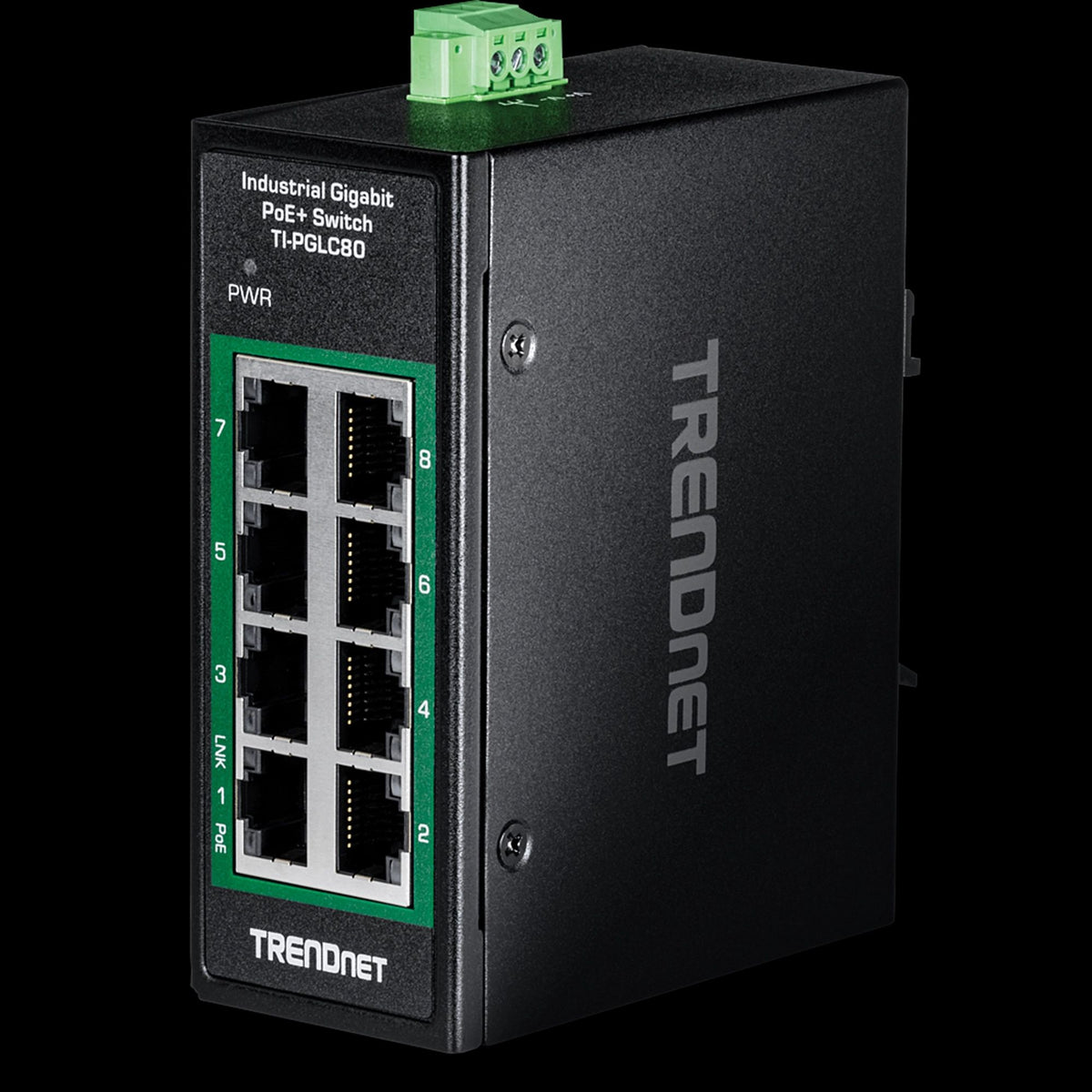

Industrial Gigabit PoE+ DIN-Rail Mini Switch |
| Buffer |
125KB |
| Dimensions |
100 mm x 81 mm x 39 mm |
| Interfaces/Ports Details |
1 HDMI; 1 RCA In; 1 RCA Out; 1 RJ-45; 1 RS-485; 1 VGA; 16 BNC ports; 2 USB |
| Minimum Operating Temperature |
-40°C |
| MTBF |
1,357,000 hours at 25°C |
| Networking Standards |
IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of Ethernet Ports |
8 |
| Operating Humidity |
95% (Non-condensing) |
| Operating Temperature (T-T) |
-40-75°C |
| Power over Ethernet (PoE) |
Yes |
| Power Supply |
48-56V DC |
| Relative Humidity |
95% (Non-condensing) |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Out of Scope |
