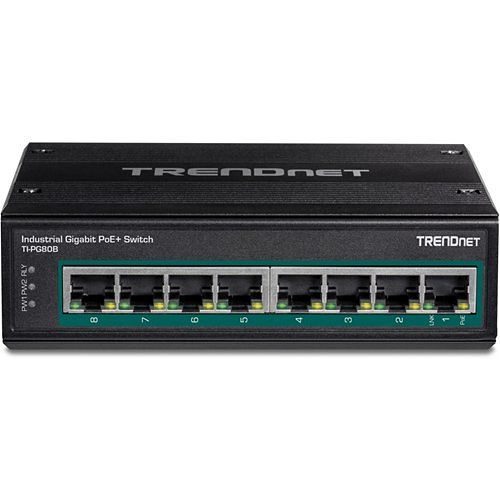

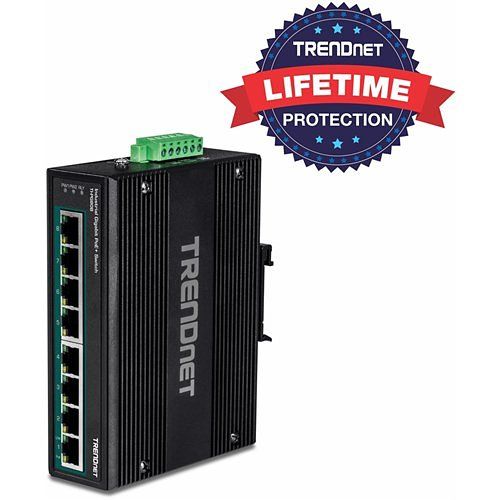

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power. The industrial variable voltage PoE switch features dual 24V - 56V DC power inputs for redundancy with overload current protection. Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° - 75° C (-40° - 167° F).

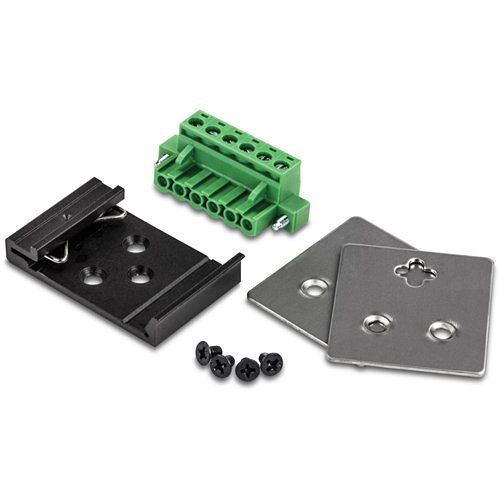

PACKAGE CONTENTS TI-PG80B Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit
Main Features

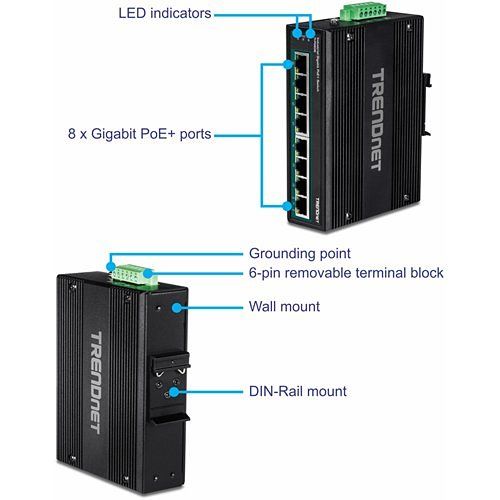

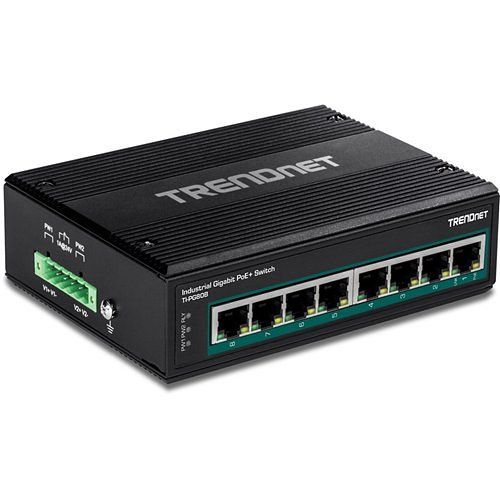

8 x Gigabit PoE+ ports
PoE power budget 120Wat 24V - 200Wat 48V
16Gbps switching capacity
Power supply sold separately (models: TI-S24048, TI-S12024)
Hardened IP30 rated metal switch

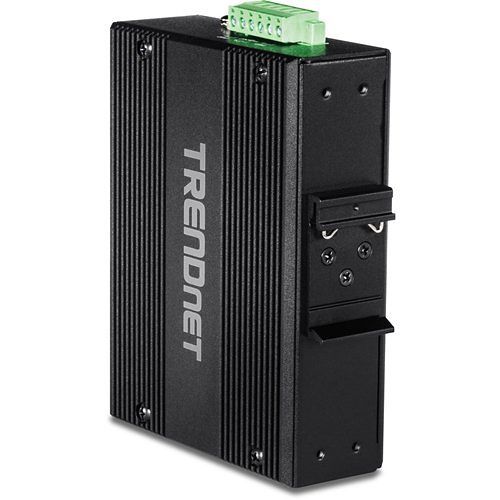

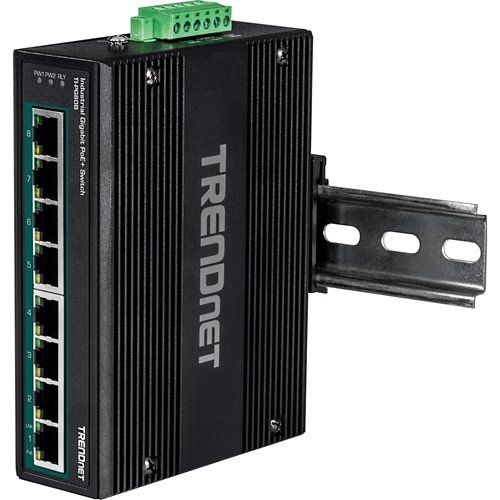

Includes DIN-Rail and wall mounts
Operating temperature range of -40° - 75° C (-40° - 167° F)

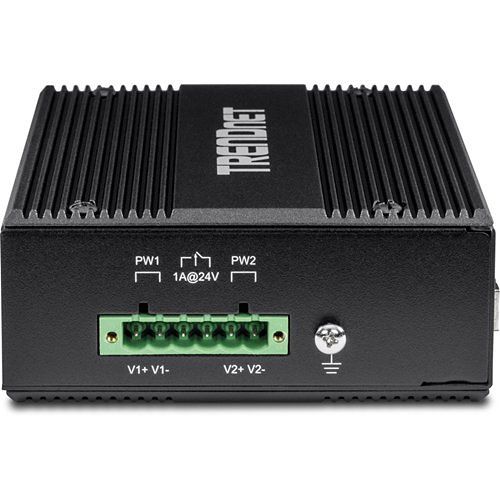

Dual 24 - 56V DC power inputs for redundancy
Specifications
Depth
177.80mm
Environmental Certification
CEC; RoHS; WEEE
Environmentally Friendly
Yes
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Features
Dual power inputs; ESD 8KV support; Hardened components rated for extreme temperatures
