| Depth |
27.94mm |
| Device Supported |
IP Camera |
| Environmental Certification |
CE; Freefall (IEC 60068-2-32); Shock (IEC 60068-2-27); Vibration |
| Ethernet Technology |
1 Gbps (Gigabit Ethernet) |
| Features |
120W PoE power budget; 12Gbps switching capacity; 2 x Gigabit SFP slots; 4 x Gigabit PoE ports; Alarm relay triggered by power failure; Forwarding rate: 8.9Mpps (64-byte packet size); Hardened IP30 rated metal housing; Includes DIN-Rail bracket and magnetic wall mount kit; Operating temperature range of -40 to 75 deg C (-40 to 167 deg F); Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048 and 48VDC3000); Redundant power inputs with overload current protection; Supports jumbo frames up to 10KB |
| Frequency |
50Hz |
| Height |
144.78mm |
| Input Voltage |
100V AC; 240V AC |
| Length |
150.00mm |
| Limited Warranty |
3-Year |
| Material |
Metal |
| Media Type Supported |
Optical Fiber; Twisted Pair |
| Mount Type |
Wall Mount |
| NDAA Compliant |
Yes |
| Network (RJ-45) |
Yes |
| Network Technology |
1000Base-T |
| Number of SFP Slots |
2 |
| Package Contents |
- TI-PG62F
- Quick Installation Guide
- Removable terminal block

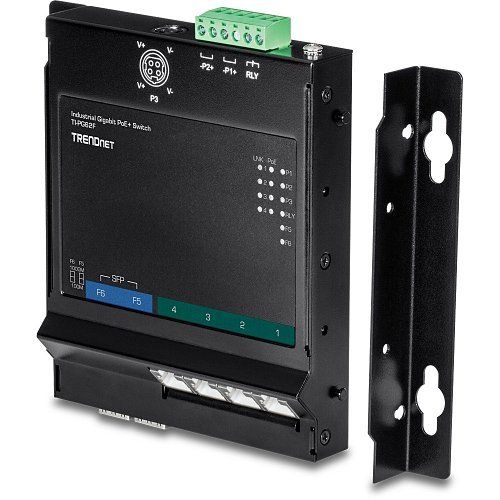

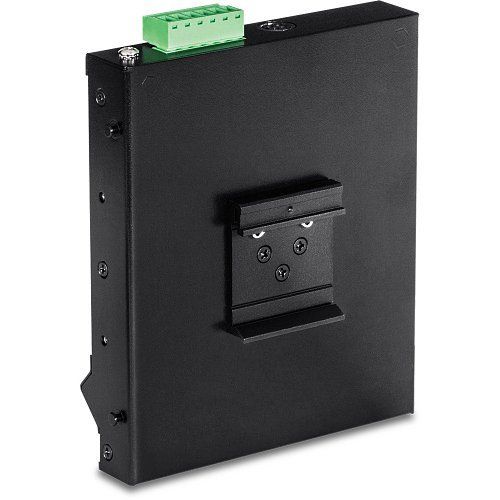

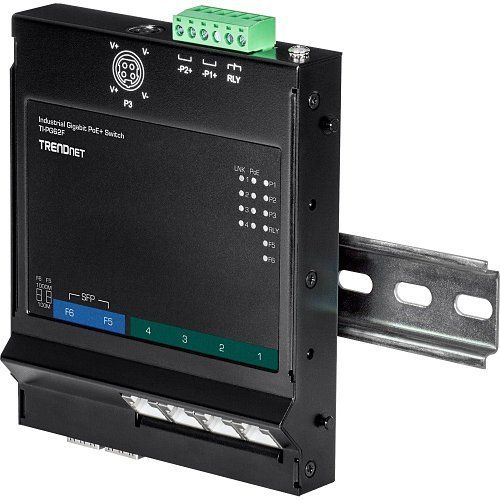

- DIN-Rail, wall and magnet mount kit
|
| Packaged Quantity |
1 |
| Plug/Connector Type |
Terminal Block |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
120W |
| Power Consumption |
7.2000W |
| Power Source |
AC Power; DC Power |
| Product Line |
Industrial |
| Product Type |
Ethernet Switch |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
6 |
| Width |
149.86mm |
| Expansion Slot Type |
SFP |
| Layer Supported |
2 |
| Manageable |
No |
| Manufacturer |
TRENDnet |
| Modular |
Yes |
| Networking Standards |
IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of SFP Slots |
2 |
| Number of Total Expansion Slots |
2 |
| Power over Ethernet (PoE) |
Yes |
| Redundant Power Supply |
Yes |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Compliant |
