TRENDnet TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch
SKU: TI-PG160Brand: TRENDnet
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
TRENDnet TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch
£390.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 16 x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts

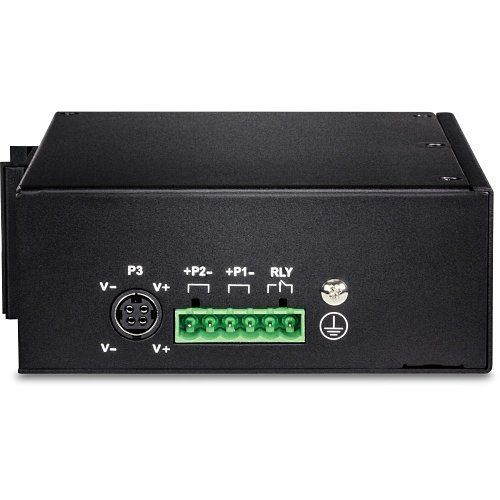

- Redundant power inputs with overload current protection
Frequently bought together
TRENDnet
TRENDnet TI-PG162 16-Port Industrial Gigabit PoE+ DIN-Rail Switch
Sale price£396.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PG262 26-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Sale price£590.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch
Sale price£107.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Sale price£135.00
In stock
TRENDnet
TRENDnet TI-PG62 6-Port Industrial Gigabit PoE DIN-Rail Switch 100 - 240 V AC, 50/60 Hz, 2 A, 12Gbps
Sale price£175.50
In stockProduct details

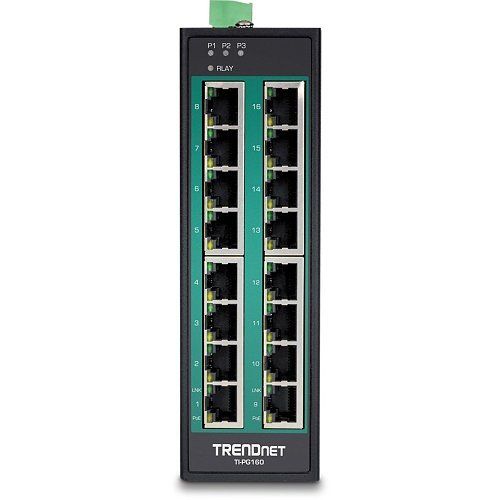

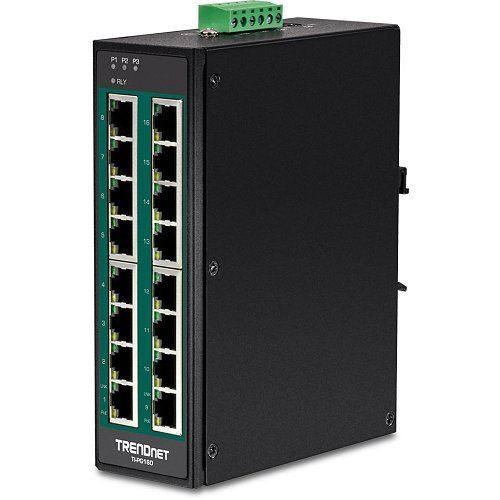

TRENDnet's 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Main Features
- 16 x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch

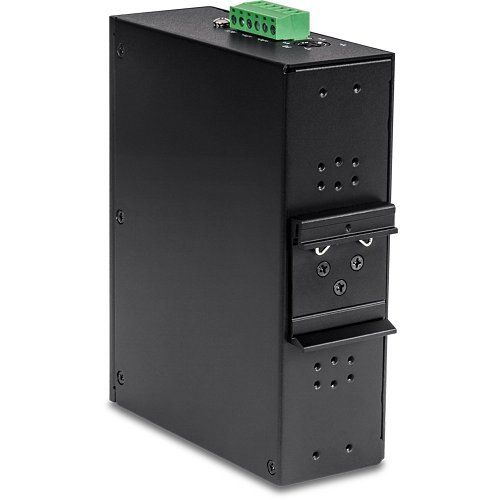

- Includes DIN-rail and wall mounts
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048)
- NDAA / TAA compliant
- Lifetime Warranty
Specifications
| Depth | 177.80mm |
|---|---|
| Environmental Certification | CE; Freefall (IEC 60068-2-32); Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Features | 16 x Gigabit PoE ports; 240W PoE power budget; 32Gbps switching capacity; Alarm output triggered by power failure; Hardened IP30 rated metal switch; Includes DIN-rail and wall mounts; Operating temperature range of -40 to 75 deg C (-40 to 167 deg F); Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048); Redundant power inputs with overload current protection |
| Frequency | 50Hz |
| Height | 76.20mm |
| Input Voltage | 100V AC; 240V AC |
| Length | 155.00mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | DIN Rail Mount; Wall Mount |
| NDAA Compliant | Yes |
| Network Technology | 1000Base-T |
| Package Contents |
|
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240W |
| Power Consumption | 5.7600W |
| Power Source | AC Power |
| Product Line | Industrial |
| Product Series | TI |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 16 |
| Width | 152.40mm |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | No |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x |
| Power over Ethernet (PoE) | Yes |
| Redundant Power Supply | Yes |
| RoHS Compliant | Compliant |
| Shared SFP Slot | No |
| Uplink Port | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
TRENDnet TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch Product datasheet · TI-PG160 · PDF Open datasheet
