Shop all TRENDnet
TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
SKU: TI-PG541Brand: TRENDnet
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 26 | 2 to 3 working days |
TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
£135.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The unmanaged PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget and allows for a 12 Gbps switching capacity.
- REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: models: 48VDC3000 / TI-S24048 / TI-S12048)

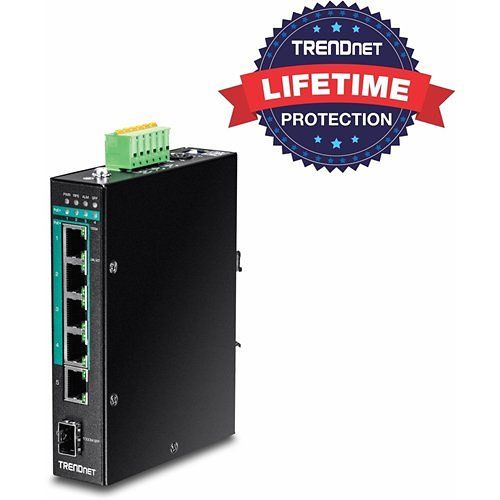

- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty
Frequently bought together
TRENDnet
TRENDnet TI-PG62 6-Port Industrial Gigabit PoE DIN-Rail Switch 100 - 240 V AC, 50/60 Hz, 2 A, 12Gbps
Sale price£175.50
In stock
TRENDnet
TRENDnet TI-PG62B 6-Port Industrial Gigabit PoE+ Din-Rail Switch
Sale price£226.05
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PG62F 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
Sale price£215.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-PG743Bi 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24-57V, (4) Gigabit PoE+ Ports, (1) Gigabit Port, (2) SFP Ports, IP40, Metal Housing
Sale price£365.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

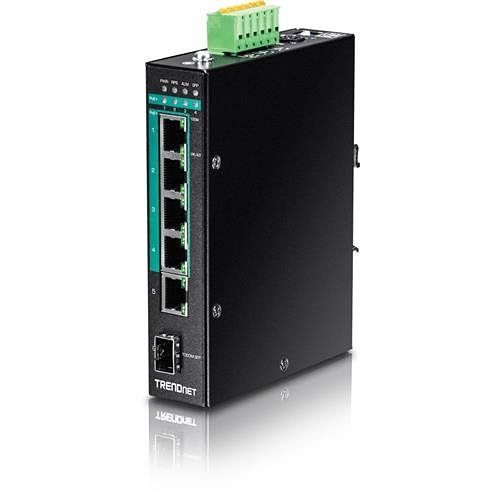

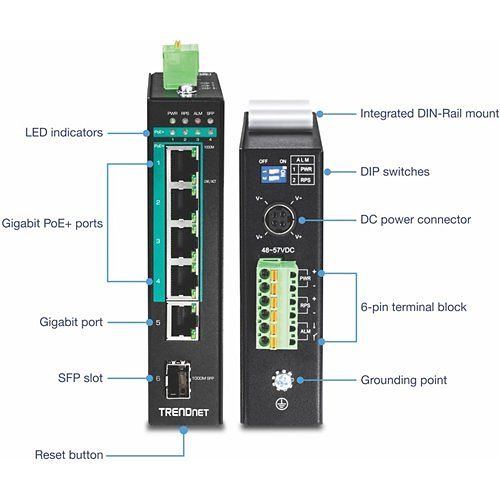

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget
Network Ports
5 x Gigabit Ethernet ports (port 1-4 PoE/PoE+) and 1 x SFP slot
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Main Features
- FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The unmanaged PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget and allows for a 12 Gbps switching capacity.

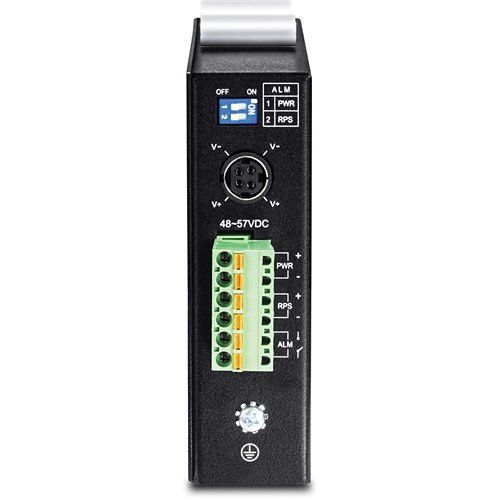

- REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: models: 48VDC3000 / TI-S24048 / TI-S12048)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty
Specifications
| Depth | 99.00mm |
|---|---|
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet); 100 Mbps (Fast Ethernet) |
| Features | 1 x Gigabit port; 1 x Gigabit SFP slot ; 12 Gbps switching capacity ; 120 W full PoE+ power budget ; 4 x Gigabit PoE+ (802.3at) ports; -40 to 70 ºC (-40 to 158 ºF) operating temperature range ; Alarm output triggered by power failure ; Dual redundant power inputs with overload current protection ; Hardened IP30 rated metal switch with integrated DIN-Rail mount ; Lifetime Warranty; Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048) |
| Frequency | 60Hz |
| Height | 135.00mm |
| Input Voltage | 240V AC |
| Length | 134.62mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | DIN Rail Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Network Switch Type | Unmanaged |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Number of SFP Slots | 1 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | No |
| PoE Budget | 120W |
| Power Consumption | 130.0000W |
| Power Source | AC Power |
| Product Line | Industrial |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Width | 30.00mm |
| Country of Origin | TW |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | No |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Power over Ethernet (PoE) | Yes |
| Redundant Power Supply | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
