| Depth |
78.00mm |
| Environmental Certification |
CE; Freefall (IEC 60068-2-32); IEC 61000-4-2; IEC 61000-4-4; IEC 61000-4-5; LVD; Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Ethernet Technology |
1 Gbps (Gigabit Ethernet) |
| Features |

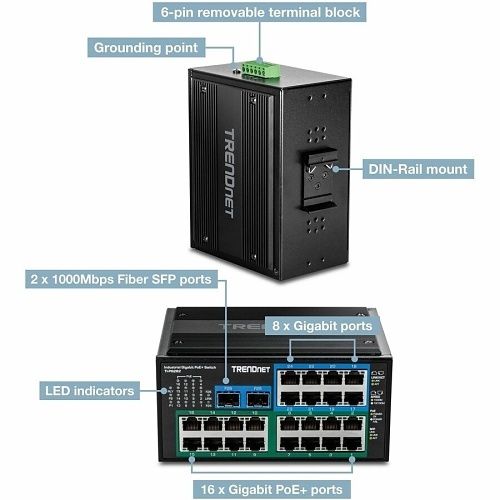

16 x Gigabit PoE ports; 2 x 100/1000Mbps SFP ports; 52Gbps switching capacity; 8 x Gigabit ports; Alarm output triggered by power failure; Extreme -40 to 75 deg C (-40 to 167 deg F) operating temperature range; Hardened IP30 rated metal switch; Includes DIN-rail and wall mounts; Powers supply sold separately (Model TI-S48048); Redundant power inputs with overload current protection; Up to a 480 W at t full PoE power budget |
| Height |
155.00mm |
| Input Voltage |
48V DC; 56V DC |
| Limited Warranty |
3-Year |
| Material |
Metal |
| Media Type Supported |
Optical Fiber; Twisted Pair |
| Mount Type |

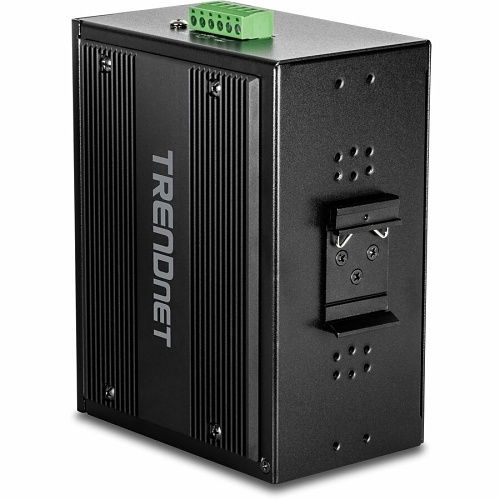

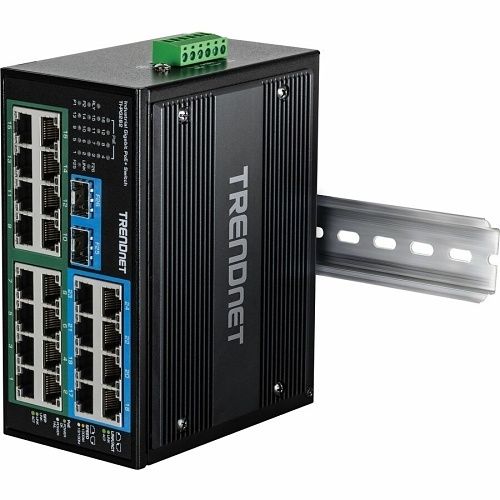

DIN Rail Mount; Wall Mount |
| Network (RJ-45) |
Yes |
| Network Switch Type |
Unmanaged |
| Network Technology |
1000Base-T |
| Number of SFP Slots |
2 |
| Package Contents |
- TI-PG262
- Quick Installation Guide
- Removable terminal block
- DIN-Rail/wall mount kit
|
| Plug/Connector Type |

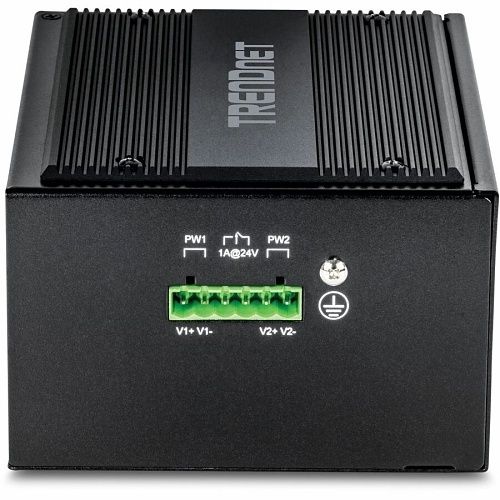

Terminal Block (6 Wire) |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
480W |
| Power Consumption |
5.7600W |
| Power Source |
AC Power |
| Product Line |
Industrial |
| Product Type |
Ethernet Switch |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
24 |
| Width |
120.00mm |
| Expansion Slot Type |
SFP |
| Layer Supported |
2 |
| Manageable |
No |
| Manufacturer |
TRENDnet |
| Modular |
Yes |
| Networking Standards |
IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Number of SFP Slots |
2 |
| Number of Total Expansion Slots |
2 |
| Power over Ethernet (PoE) |
Yes |
| Redundant Power Supply |
Yes |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Compliant |
