| American Wire Gauge |
12AWG; 26AWG |
| Application/Usage |
Industrial environments; Long-distance fiber applications; SMB networks |
| Bandwidth |
20Gbps |
| Compatibility |
ONVIF device discovery; Supports 100/1000Base-FX fiber SFP modules |
| Connector Type |

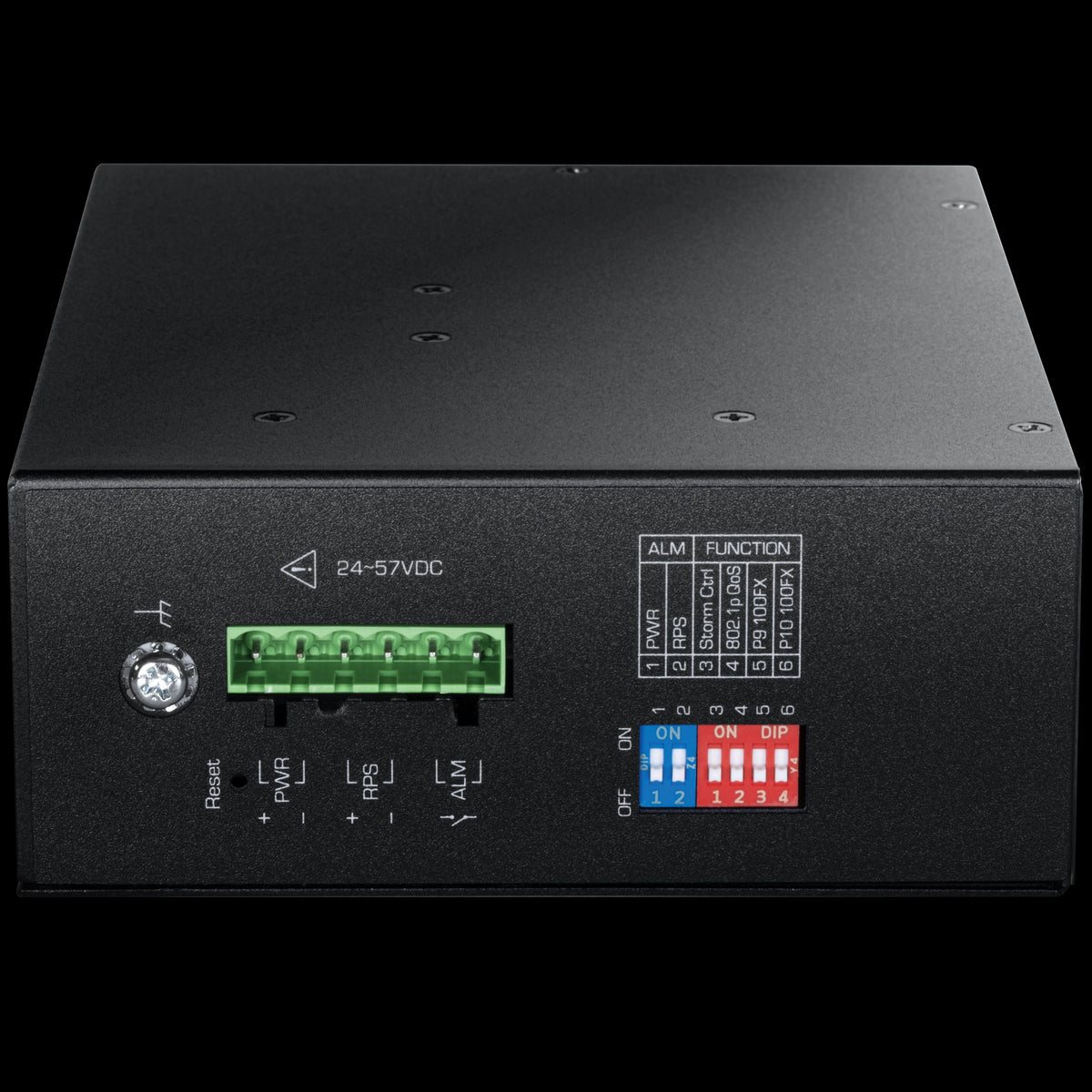

6-pin removable terminal block; RJ-45; SFP |
| Data Transfer Rate |
20Gbps |
| Depth |
120.00mm |
| Ethernet |
Yes |
| Ethernet Technology |
1 Gbps (Gigabit Ethernet) |
| Features |
2 x SFP ports; 20Gbps switching capacity; 240W PoE power budget; 8 x Gigabit PoE+ ports; Alarm output triggered by power failure; Hardened IP40 rated metal housing; Operating temperature range of -40° - 75° C; PoE alive check; Redundant power inputs; Remote cloud management with TRENDnet Hive |
| Height |
160.00mm |
| Ingress Protection Rating |
IP40 |
| Input Voltage |
24-57V DC |
| Limited Warranty |
Lifetime |
| Material |
Metal |
| Media Type Supported |
Fiber Optic; Twisted Pair |
| Mount Type |

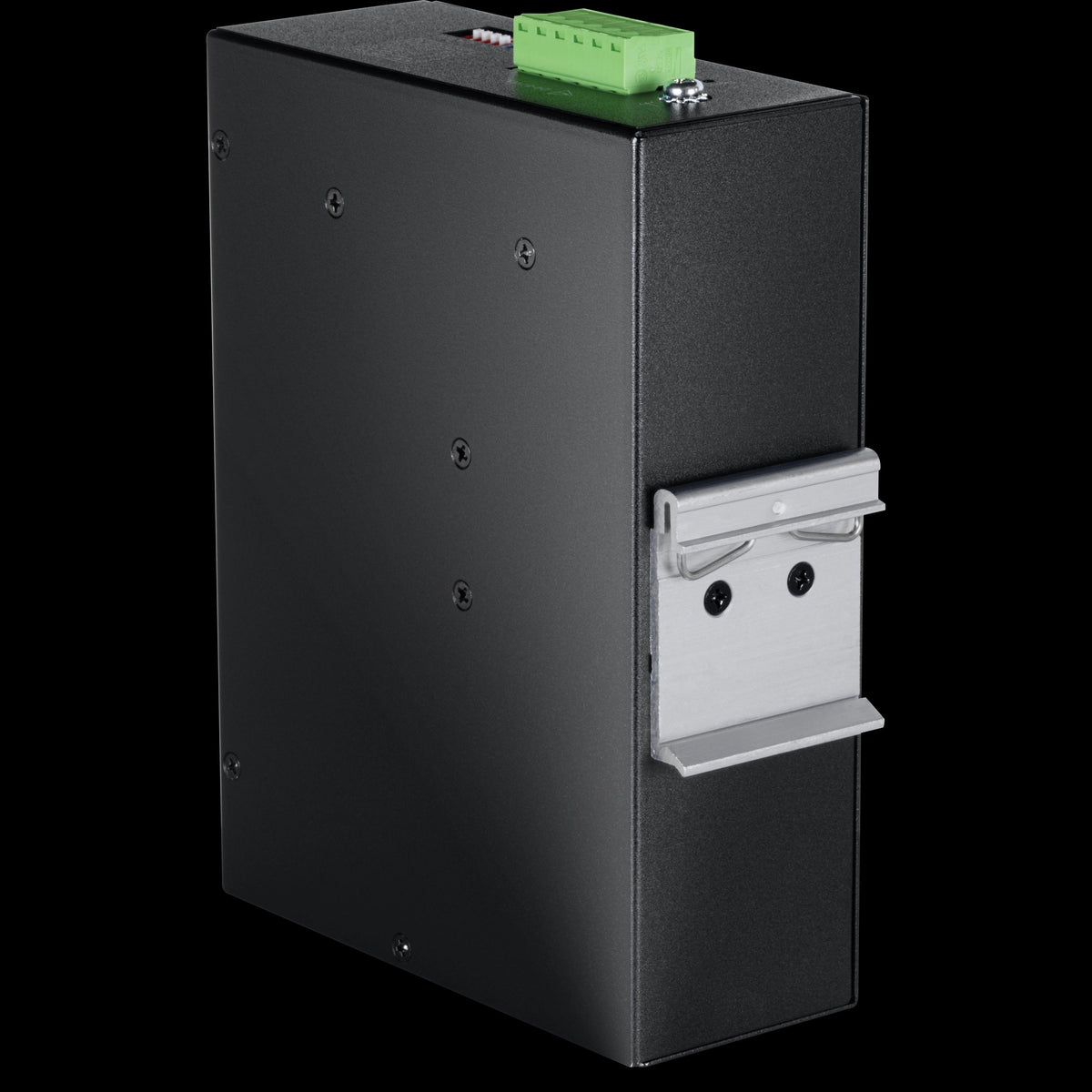

DIN Rail Mount |
| NDAA Compliant |
Yes |
| Network (RJ-45) |
Yes |
| Network Switch Type |
Managed |
| Number of Network (RJ-45) Ports |
8 |
| Number of Ports |
10 |
| Number of SFP Slots |
2 |
| Operating Power Consumption |
13W |
| Package Contents |
DIN-Rail mounting bracket; Removable terminal block; TI-PG103i |
| PoE |
Yes |
| PoE Budget |
240W |
| Product Type |
Managed PoE+ Switch |
| Protection Type |
Short Circuit Protection; Surge Protection |
| Protocols |
HTTP; IPv4; IPv6; SNMP |
| Status Indicators |
LED indicators |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
10 |
| Weight |
930.00g |
| Width |
50.00mm |
| Maximum Operating Temperature |
75°C |
| Additional Information |
Fanless passive cooling; Hardened voltage booster network switch; PoE alive check restarts unresponsive PoE powered devices; Remote cloud management with TRENDnet Hive |
| Buffer |
128MB |
| Certifications & Standards |
CE; FCC; Freefall (IEC 60068-2-32); IEEE 802.1ab; IEEE 802.1ax; IEEE 802.1d; IEEE 802.1p; IEEE 802.1Q; IEEE 802.1w; IEEE 802.1X; IEEE 802.3ab; IEEE 802.3ad; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z; Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Dimensions |
160mm x 120mm x 50mm |
| Interfaces/Ports Details |
1 x RJ45 10M/100M/1000M; 1 x RS-485 (half-duplex); 1 x USB 2.0 (Front); 2 x SATA; 2 x USB 3.0 (Rear); 8 x BNC |
| Layer Supported |
Layer 2 |
| Localization |
English |
| Manageable |
Yes |
| Maximum Power Consumption |
253.00W |
| Minimum Operating Temperature |
-40°C |
| MTBF |
460726hr |
| Network Management |
CLI - Telnet / SSHv2; HTTP web-based GUI; SNMP v1, v2c, v3; TRENDnet Hive Cloud Management |
| Number of Ethernet Ports |
8 |
| Operating Humidity |
95% (Non-condensing) |
| Operating Temperature (T-T) |
-40-75°C |
| Power over Ethernet (PoE) |
Yes |
| RoHS Compliant |
Compliant |
| Security Features |
802.1X RADIUS; ACLs; ARP inspection; DHCP snooping; IP Source Guard; IP-MAC-Port binding |
| Surge Protection |
Yes |
| WEEE Compliant |
Out of Scope |
