TRENDnet TI-PE50 5-Port Industrial Fast Ethernet Din-Rail Switch, 1Gbps
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- 1 x Fast Ethernet port
- 1Gbps switching capacity
- Hardened IP30 rated metal switch
Frequently bought together
Product details
TRENDnet's Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. PoE+ Power: A 90W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power. Fault Tolerance

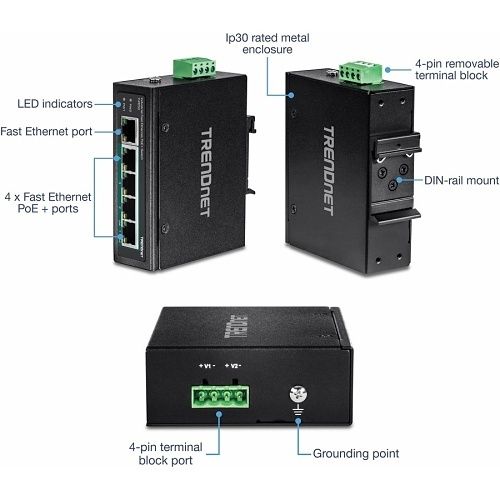

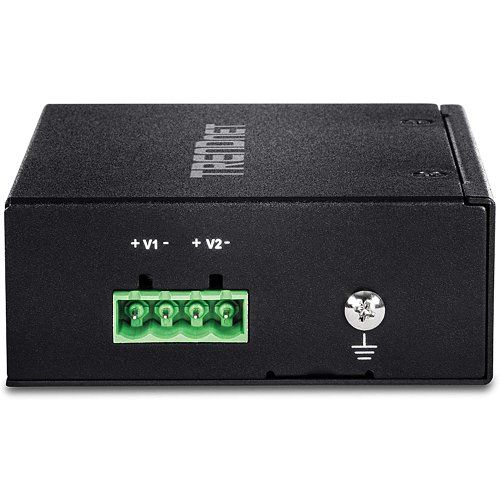

The industrial Ethernet switch features redundant power inputs. Industrial Hardened Design: Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F). PACKAGE CONTENTS: TI-PE50; Quick Installation Guide; Removable terminal block; DIN-rail / wall mount kit
- 1 x Fast Ethernet port
- 1Gbps switching capacity
- Hardened IP30 rated metal switch
Specifications
| Depth | 254.00mm |
|---|---|
| Environmental Certification | CE; Freefall (IEC 60068-2-32); Shock (IEC 60068-2-27); Vibration (IEC 60068-2-6) |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Mbps (Fast Ethernet) |
| Features | 1 x Fast Ethernet port; 1Gbps switching capacity; 4 x Fast Ethernet PoE ports; 90W PoE power budget; Dual inputs provide redundant power with overload current protection; Hardened IP30 rated metal switch; Includes DIN-Rail mount and wall mount brackets; Power supply sold separately (model: TI-S15052, TI-S12048); Wide operating temperature range of -40 to 75 deg C (-40 to 167 deg F) |
| Height | 76.20mm |
| Input Voltage | 48V DC; 56V DC |
| Length | 103.00mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | DIN Rail Mount |
| NDAA Compliant | Yes |
| Network Technology | 100Base-TX; 10Base-T |
| Package Contents |
|
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90W |
| Power Consumption | 2.2400W |
| Power Source | AC Power |
| Product Line | Industrial |
| Product Series | TI |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Width | 127.00mm |
| Country of Origin | TW |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | No |
| Networking Standards | IEEE 802.3; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x |
| Power over Ethernet (PoE) | Yes |
| Redundant Power Supply | Yes |
| RoHS Compliant | Compliant |
| Shared SFP Slot | No |
| Uplink Port | No |
| WEEE Compliant | Compliant |
Downloads
Datasheet
TRENDnet TI-PE50 5-Port Industrial Fast Ethernet Din-Rail Switch, 1Gbps Need the datasheet? Our team will email it to you. Request datasheet
