| Bandwidth |
1Gbps |
| Device Supported |

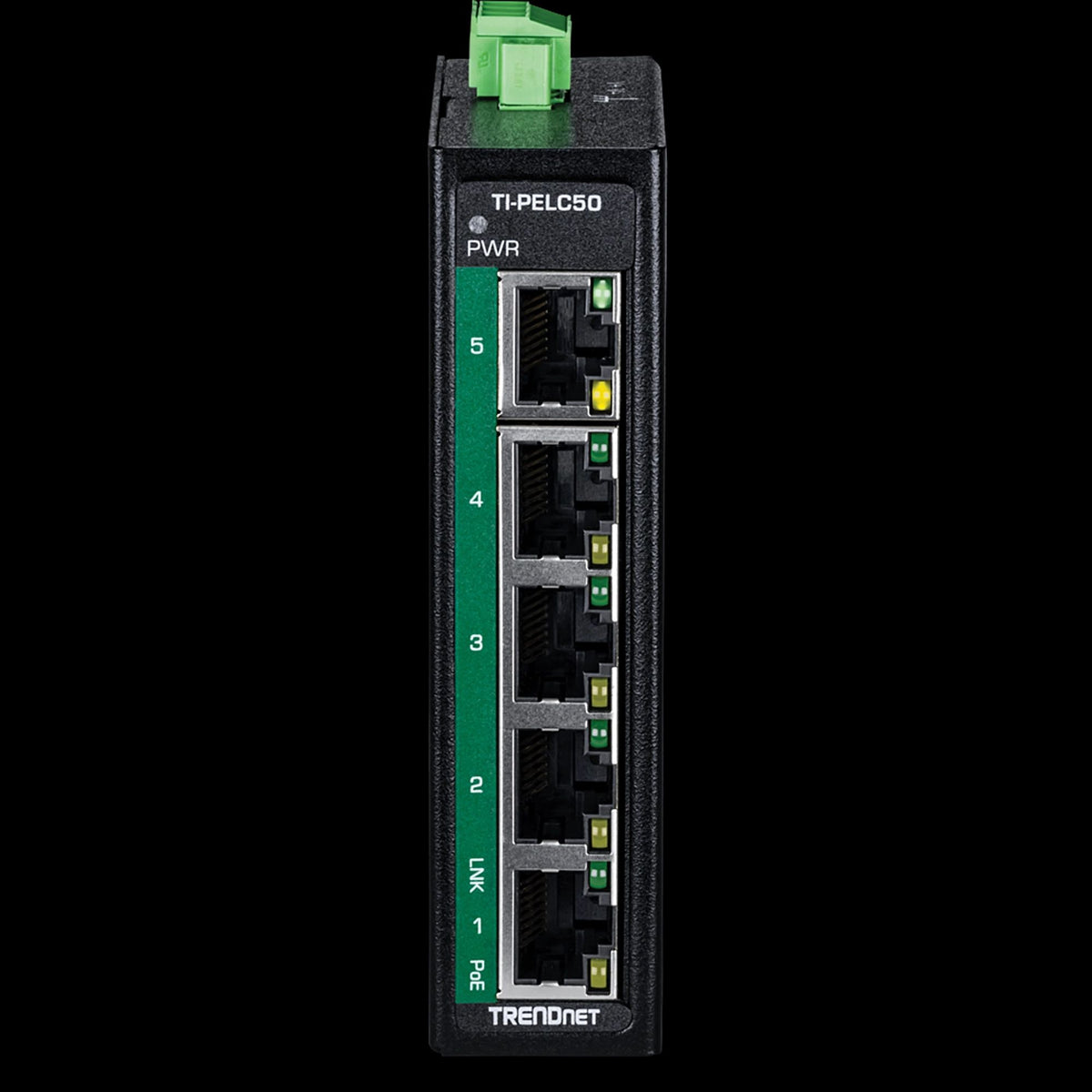

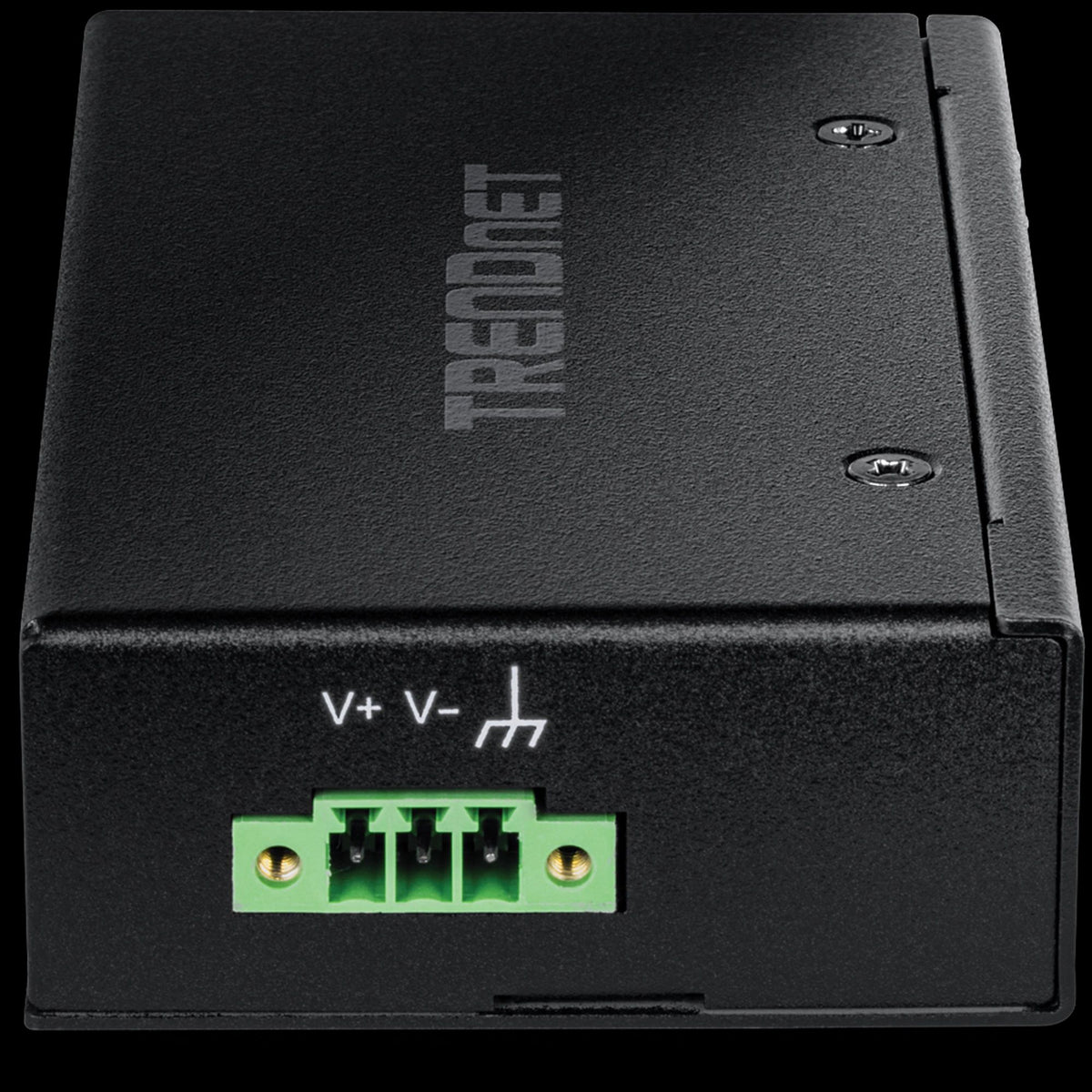

1 x 10/100Mbps port; 3-pin removable terminal block; 4 x 10/100Mbps PoE+ ports; LED indicators |
| Ethernet |
Yes |
| Ethernet Technology |
100 Mbps (Fast Ethernet) |
| Features |
1 x 10/100Mbps port; 1Gbps switching capacity; 4 x 10/100Mbps PoE+ ports; 90W PoE+ power budget; Extreme operating temperature range of -40° – 75°C (-40° – 167°F); Hardened IP30 rated metal mini switch; Includes DIN-Rail mount and wall mount brackets; NDAA / TAA compliant (U.S. and Canada only); Power supply sold separately (model: TI-S15052, TI-S12048) |
| Ingress Protection Rating |
IP30 |
| Input Voltage |
48-56V DC |
| Limited Warranty |
2-Year |
| Maximum Data Transfer Rate |
200.0Mbps |
| Maximum Output Power |
30.00W |
| Mount Type |

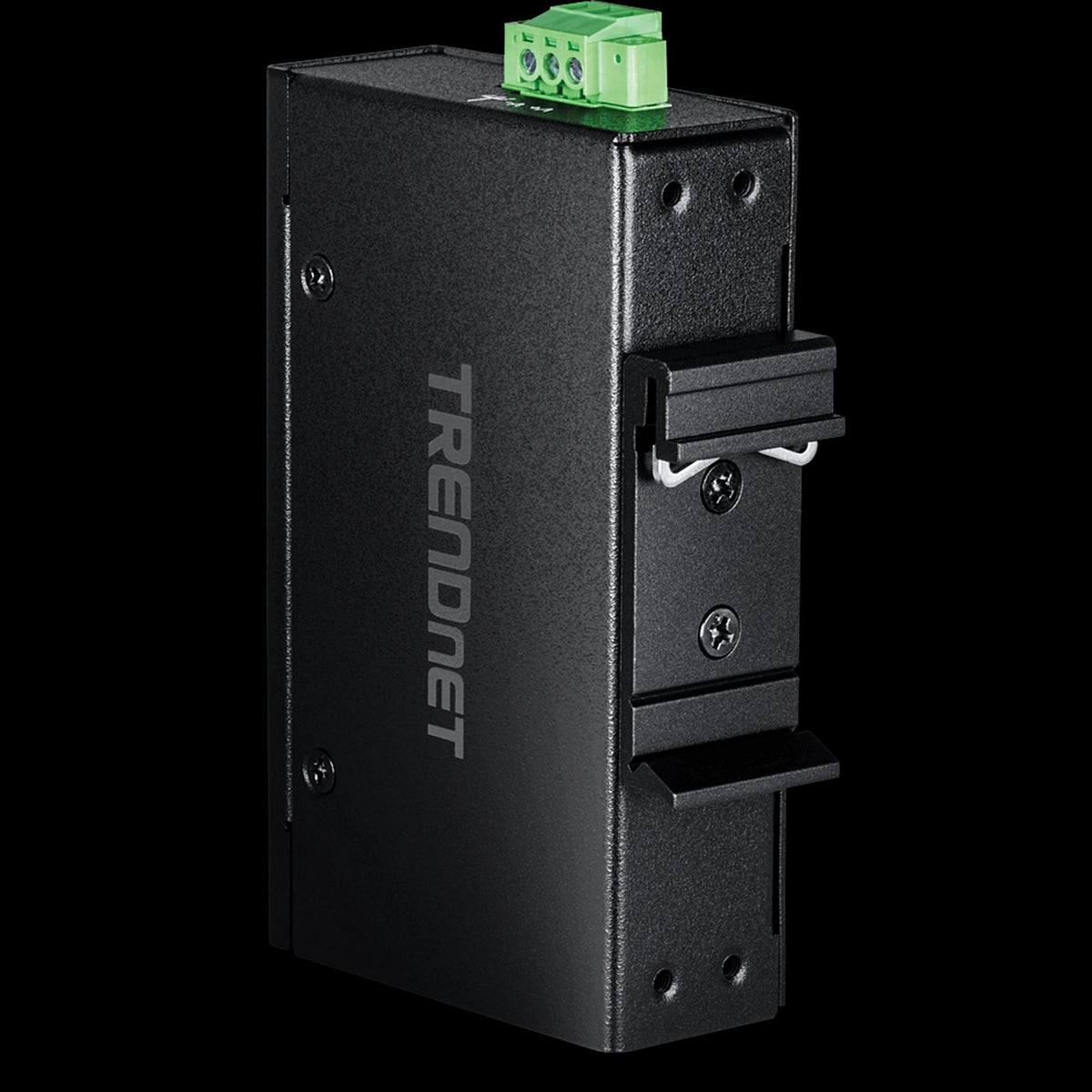

DIN Rail Mount; Wall Mount |
| NDAA Compliant |
Yes |
| Number of Network (RJ-45) Ports |
5 |
| Number of Ports |
5 |
| Package Contents |
DIN-rail and wall mount kit; Quick Installation Guide; Removable terminal block; TI-PELC50 |
| PoE |
Yes |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
90W |
| Product Type |
Switch |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
5 |
| Weight |
226.00g |
| Maximum Operating Temperature |
75°C |
| Type |

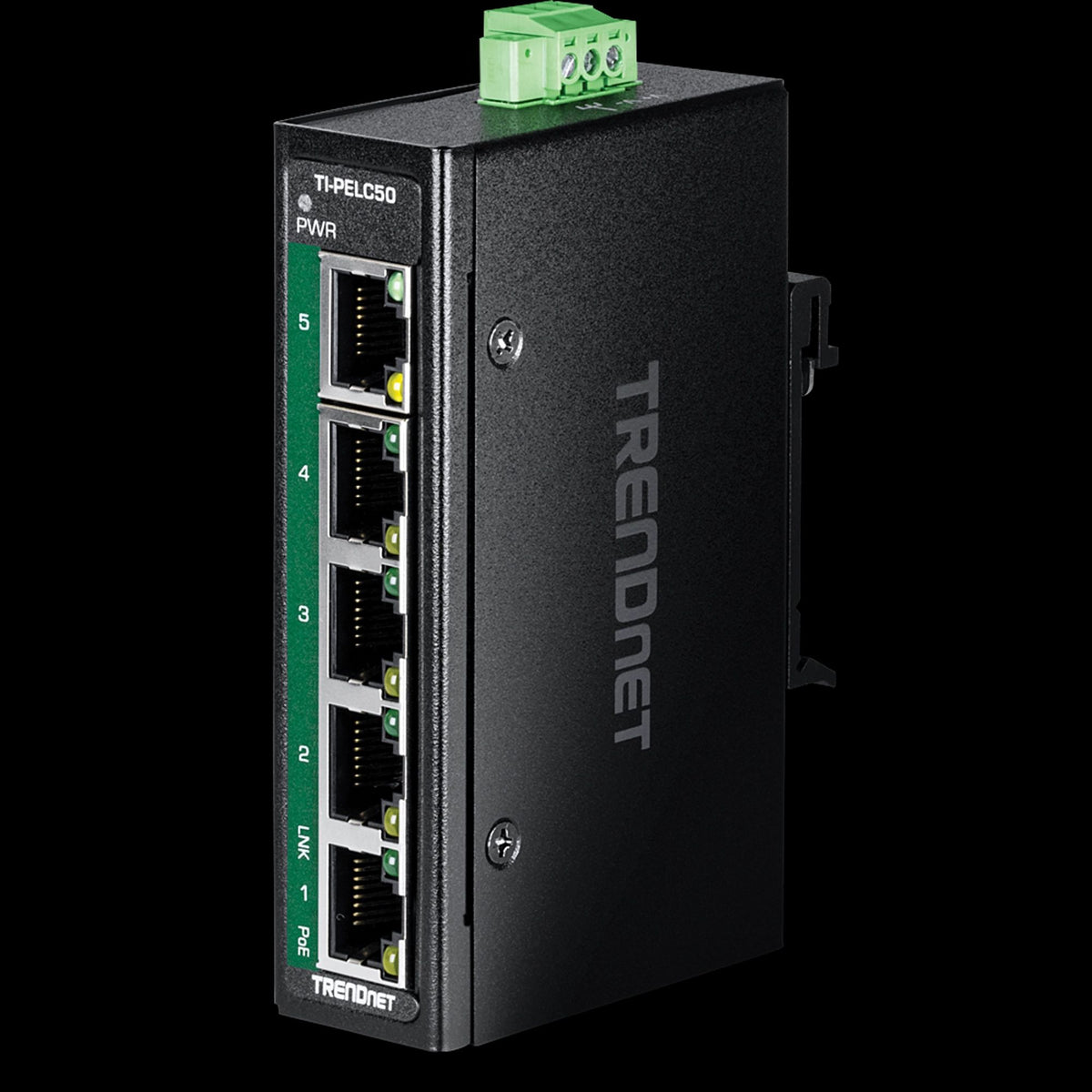

Hardened IP30 rated metal mini switch |
| CE Marking |
Yes |
| Dimensions |
100.5 mm x 60 mm x 25.5 mm |
| Interfaces/Ports Details |
2 x 10G ports (1Gbps/2.5Gbps/10Gbps); 4 x 2.5G ports (1Gbps/2.5Gbps) |
| Maximum Power Consumption |
1.68W |
| Minimum Operating Temperature |
-40°C |
| MTBF |
560,321 hours at 50°C |
| Networking Standards |
IEEE 802.3; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x |
| Number of Ethernet Ports |
5 |
| Operating Humidity |
95% (Non-condensing) |
| Operating Temperature (T-T) |
-40-75°C |
| Power over Ethernet (PoE) |
Yes |
| Power Supply |
48-56V DC |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Out of Scope |
