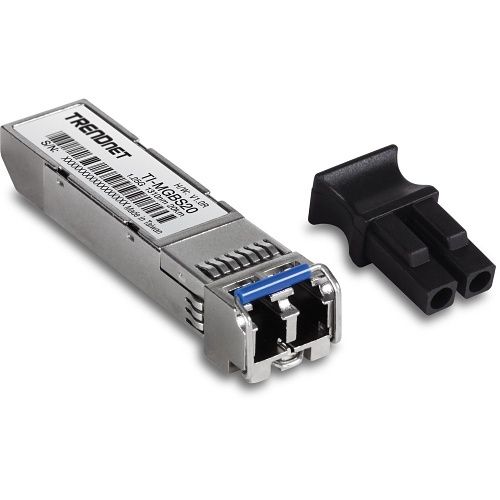

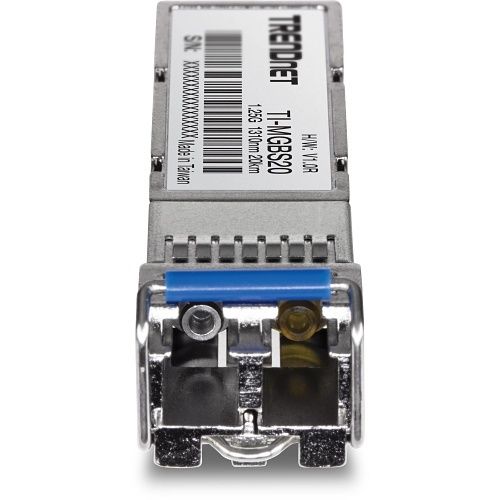

TRENDnet's 1000Base-LX Industrial SFP Single Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20km (12.42mi).
Main Features
Compliant with IEEE 802.3z Gigabit Ethernet
Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
Extreme operating temperature range of -40° to 85°C (-40° to 185°F)
Supports data rates of up to 1.25 Gbps
Transmission distance of up to 20km (12.42mi)
Low Electromagnectic Interference (EMI) design
Supports 1310nm single -mode network transmissions
Duplex LC optical interface
Specifications
Depth
58.0mm
Environmental Certification
CE; FCC
Limited Warranty
3-Year
Power Consumption
1W
Product Type
Transceiver Module
Weight
19.00g
Manufacturer
TRENDnet
RoHS Compliant
Compliant
WEEE Compliant
Out of Scope
