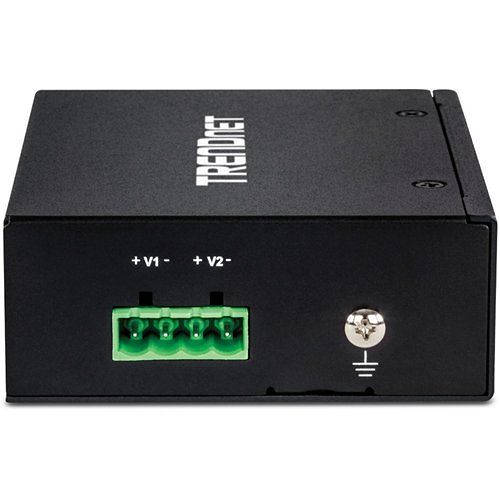

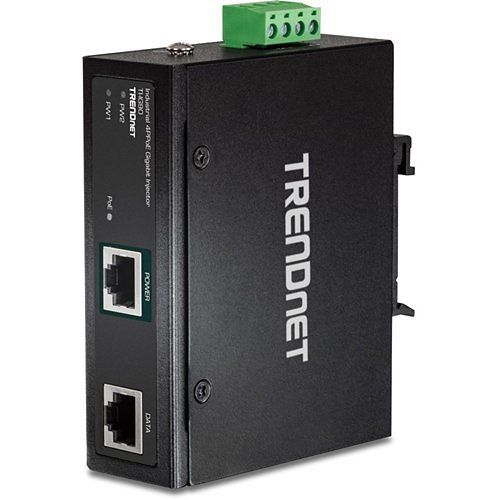

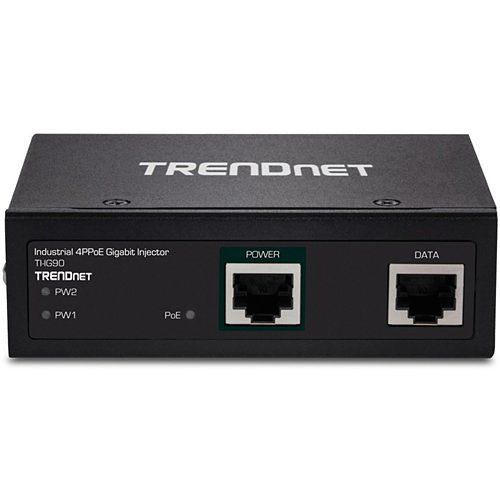

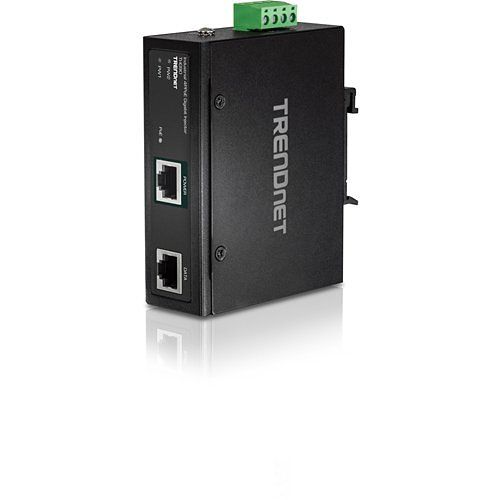

TRENDnet TI-IG90 Hardened Industrial 90w Gigabit 4pPoE Injector,4-Pair Power Over Ethernet, PoE(15.4w), PoE Ip30, Din-Rail/Wall Mount Included, 4-Pair PoE Up To 100m
SKU: TI-IG90Brand: TRENDnet
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
TRENDnet TI-IG90 Hardened Industrial 90w Gigabit 4pPoE Injector,4-Pair Power Over Ethernet, PoE(15.4w), PoE Ip30, Din-Rail/Wall Mount Included, 4-Pair PoE Up To 100m
£76.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Hardened IP30 rated Gigabit PoE++ Injector
- PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
- Redundant power inputs with overload current protection

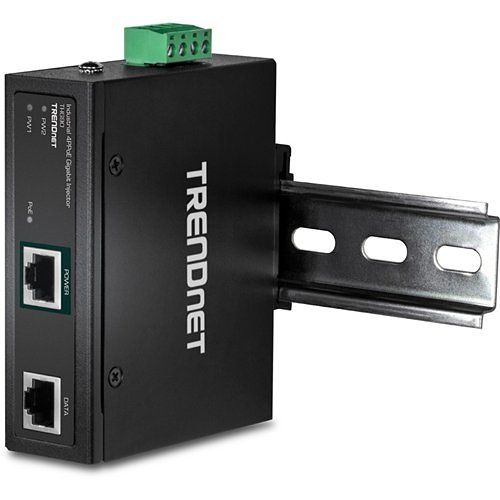

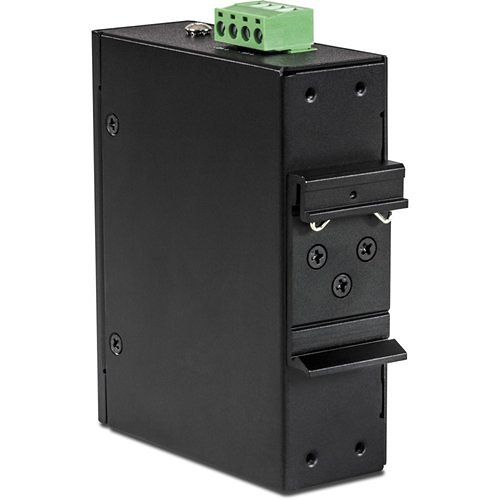

- Includes DIN-rail mount and wall mount
Frequently bought together
TRENDnet
TRENDnet TI-M12 Industrial Modbus Gateway
Sale price£178.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-M42 4-Port Industrial Modbus Gateway
Sale price£356.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-MGBRJ 1000BASE-T Industrial SFP RJ45 Copper Module
Sale price£43.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-MGBS10 1000base-Lx Industrial SFP Single-Mode Lc Module (10km)
Sale price£38.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
TRENDnet
TRENDnet TI-MGBS20 1000Base-LX Industrial SFP Single Mode LC Module, 20km
Sale price£42.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or PoE++ (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector. PACKAGE CONTENTS:TI-IG90, Quick Installation Guide, Removable terminal block, DIN-rail and wall mount kit
Main Features
- Hardened IP30 rated Gigabit PoE++ Injector
- PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
- Redundant power inputs with overload current protection
- Includes DIN-rail mount and wall mount
- Power supply sold separately (model TI-S15052, TI-S12048)
Specifications
| Data Transfer Rate | 2000Mbps |
|---|---|
| Environmental Certification | China Environmental United Certification Center; RoHS; WEEE |
| Environmentally Friendly | Yes |
| Form Factor | External |
| Height | 76.2mm |
| Input Ports | 1 x Gigabit Ethernet |
| Input Voltage | 56V DC |
| Length | 254.0mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Maximum Output Power | 90W |
| Mount Type | DIN Rail Mount; Wall Mount |
| NDAA Compliant | Yes |
| Output Ports | 1 x Gigabit 4PPoE |
| Package Contents |
|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 95W |
| Product Series | TI |
| Product Type | PoE Injector |
| Protection Type | Overload Protection |
| TAA Compliant | Yes |
| Width | 127.0mm |
| Certifications & Standards | Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt Certifications: CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Colour | Silver |
| Country of Origin | TW |
| Manufacturer | TRENDnet |
| Maximum Output Voltage | 56V |
| Operating Relative Humidity (H-H) | 0.95 |
| Operating Temperature (T-T) | -40-75°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
