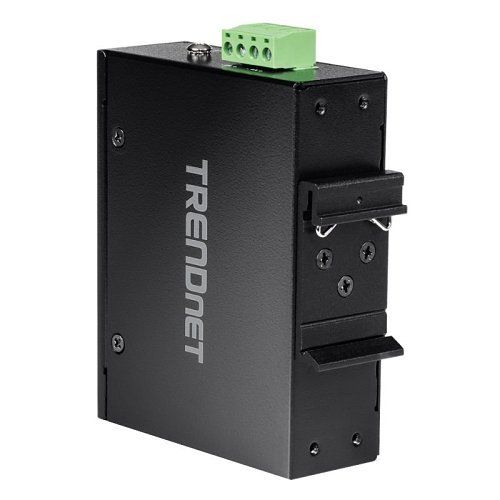

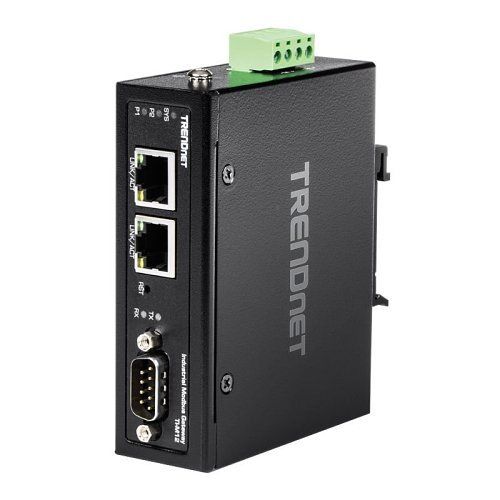

TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m using CAT5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
Main Features

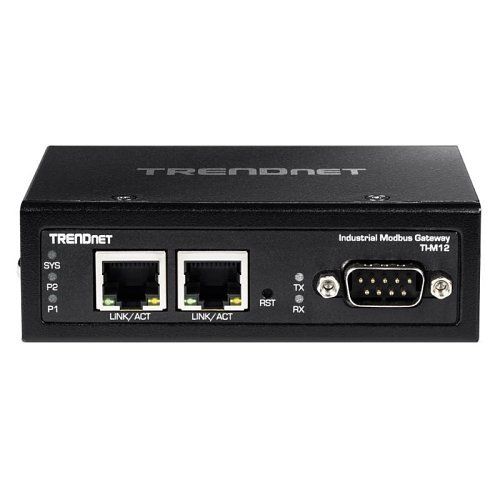

1 x serial port, 2 x Fast Ethernet ports
Connect a RS-232/RS-422/RS-485 serial device, such as a modem, to a network
Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Configure via web management or telnet
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 50bps to 921.6Kbps
IP30 rated metal housing
NDAA / TAA compliant
Lifetime Warranty
Specifications
Depth
80.0mm
Environmental Certification
CE
Ethernet Technology
100 Mbps (Fast Ethernet)
Form Factor
DIN Rail Mount; Wall Mount
Height
31.0mm

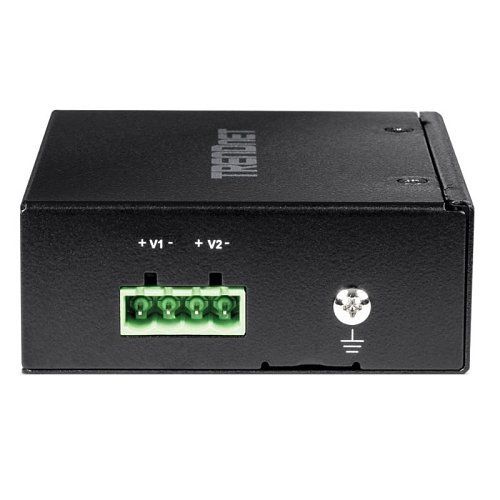

Input Voltage
12V DC; 56V DC
Limited Warranty
3-Year
Media Type Supported
Twisted Pair
Mount Type
DIN Rail Mount; Wall Mount
Network (RJ-45)
Yes
Network Technology
100Base-TX; 10Base-T
Number of Network (RJ-45) Ports
2
Package Contents
TI-M12Quick Installation GuideRemovable terminal blockDIN-Rail and wall mount kit
