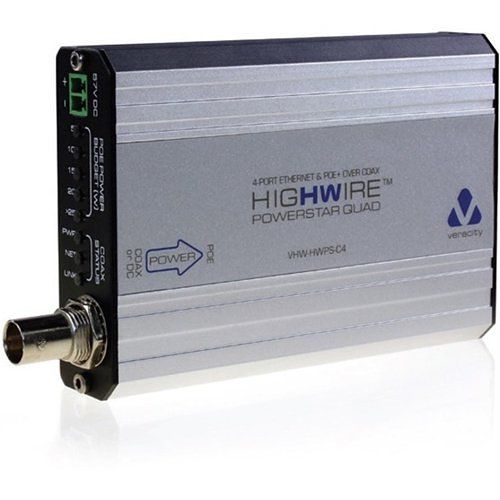

POE over Coax or Local Power In the simplest implementation (shown below left) the BASE unit receives power from a standard POE switch or Veracity’s 57V DC PSU and transmits POE over the coax. The QUAD unit receives this power and delivers up to 25 watts shared between up to four IP cameras.
No external power cabling is required, and all detection and setup occurs automatically. For higher POE power budgets, an optional Veracity 57V DC PSU may be used to power the QUAD locally at the camera end (shown below right) delivering 40 watts or 78 watts depending on PSU model. See POE budget table for details.
Main Features
Works with any IP camera or device
PoE eliminates the need for additional cable runs
Delivers up to 25W of PoE per port, between 10-78W total power
