VESDA by Xtralis PIP-003 Socket Union, 25mm, 10-Pack

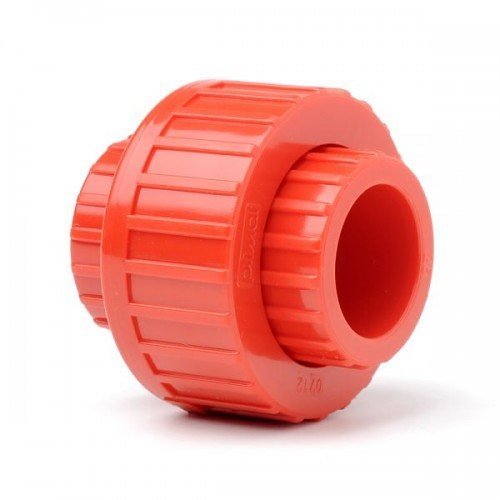

The VESDA PIP-003 is a pack of 10 red 25 mm socket unions. It is part of the Xtralis VESDA pipes and fittings range for aspirating smoke detection (ASD) pipe networks. The range is made from ABS, uses a metric 25 mm outside diameter pipe standard, and is tested and certified to EN 54-20 and EN 61386-1. Use socket unions where pipes may need to be dismantled periodically for maintenance, or where precise alignment is needed, such as orienting sampling holes over air grilles.

Key features

• Socket union allows pipework to be dismantled for maintenance
• Allows precise alignment of sampling holes
• Red, to identify fire service pipework
• Made from ABS for strength, impact resistance and chemical resistance
• Joins with ABS solvent cement (PIP-012) for fast, reliable connections
• Fully matched to VESDA ABS pipe for optimal ASD system performance
• Suitable for use with low-pressure ASD systems

Technical specifications

• Part number: PIP-003
• Size: 25 mm
• Pack quantity: 10
• Colour: red
• Pipe system: 25 mm OD, 21 mm ID ABS
• Standards: tested and certified to EN 54-20 and EN 61386-1
• ABS impact strength and toughness maintained from -40°C to 80°C
