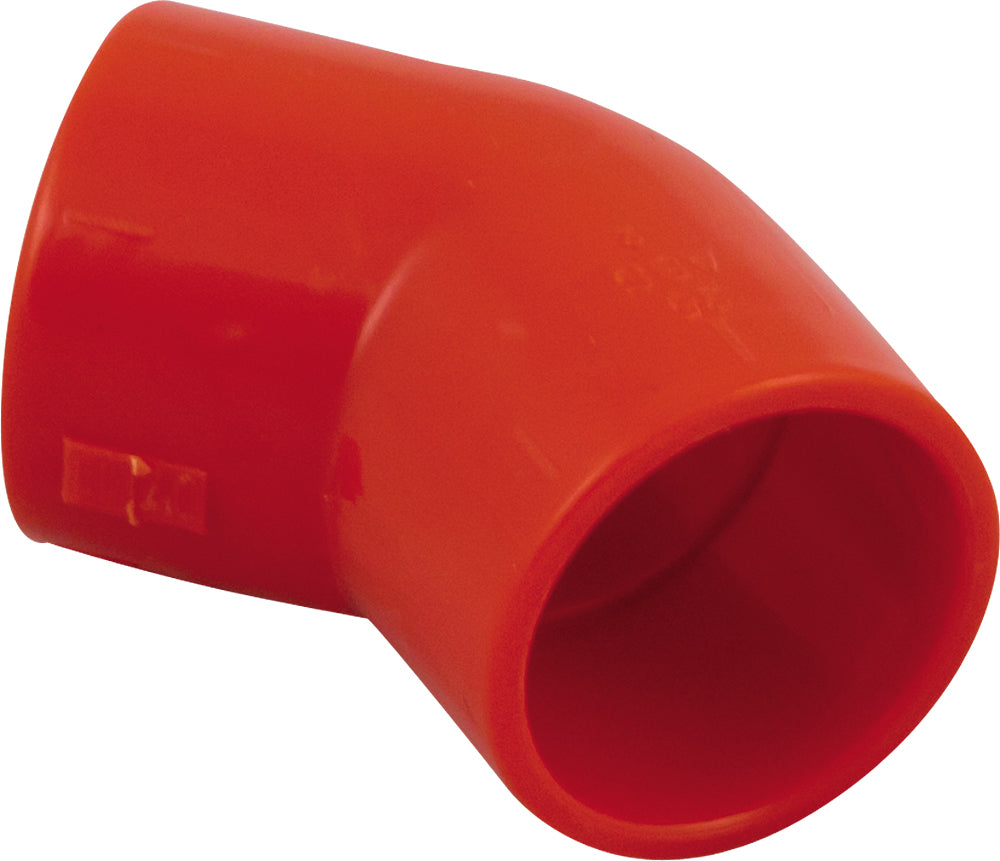

The VESDA PIP-006 is a pack of 10 red 25 mm 45° elbows. It is part of the Xtralis VESDA pipes and fittings range for aspirating smoke detection (ASD) pipe networks. The range is made from ABS, uses a metric 25 mm outside diameter pipe standard, and is tested and certified to EN 54-20 and EN 61386-1. Elbows change the direction of the sampling pipe and are useful for routing pipework around obstructions.
Key features
- 45° elbow for changing pipe direction
- Red, to identify fire service pipework
- Made from ABS for strength, impact resistance and chemical resistance
- Joins with ABS solvent cement (PIP-012) for fast, reliable connections
- Fully matched to VESDA ABS pipe for optimal ASD system performance
- Suitable for use with low-pressure ASD systems
Technical specifications
- Part number: PIP-006
- Size: 25 mm
- Angle: 45°
- Pack quantity: 10
- Colour: red
- Pipe system: 25 mm OD, 21 mm ID ABS
- Standards: tested and certified to EN 54-20 and EN 61386-1
- ABS impact strength and toughness maintained from -40°C to 80°C
