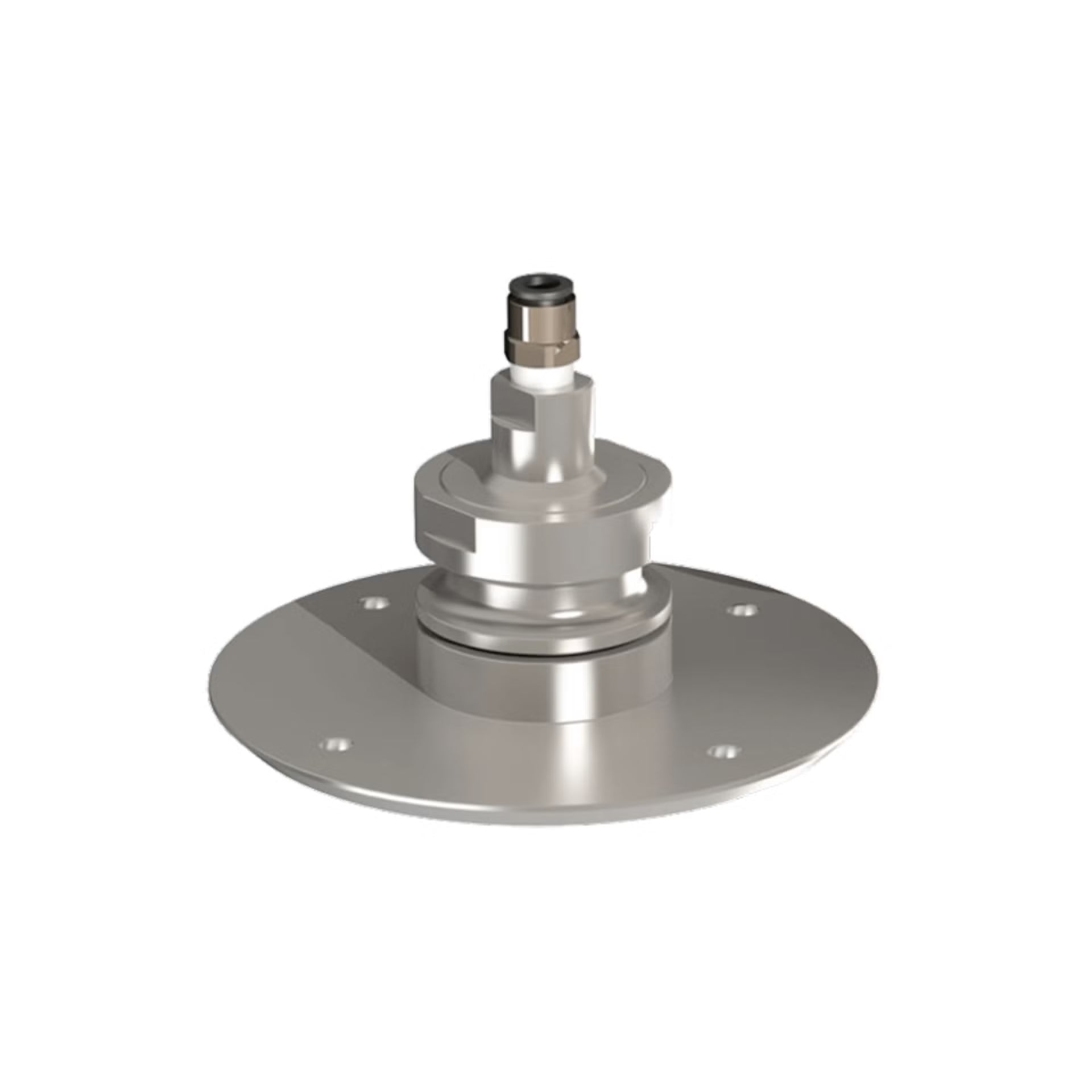

The Xtralis VSP-620-03 is a tamper-proof sampling point for 10 mm OD capillary (micro-bore) tubing, used with Xtralis aspirating smoke detection (ASD) systems. It gives inconspicuous, vandal-resistant air sampling for sites such as prisons, detention centres, hospitals and luxury accommodation, while the detector itself is mounted centrally for testing and maintenance.
Key features
- Tamper-proof design that minimises the risk of vandalism and tolerates abuse
- Hidden, discreet detection that suits modern decor
- Gland fitting to flexible micro-bore (capillary) tubing
- Serviceable mesh inlet
- Suitable for new and retrofit installations
- Robust stainless steel (SUS304) construction with good heat and corrosion resistance
- Convenient testing and maintenance via a centrally and remotely mounted detector
Technical specifications
- Part number: VSP-620-03 (TPSP 10 mm Capillary)
- Tube: 10 mm OD flexible micro-bore (capillary) tubing
- Height: 75 mm (varies with how deep the inlet adaptor is screwed into the assembly)
- Material: stainless steel SUS304
- Other versions: VSP-620-01 (6 mm), VSP-620-02 (8 mm), VSP-610 (25 mm pipe)
- Applications listed by Xtralis: luxury accommodation, correctional institutions, detention centres, community residential centres, hospitals, manufacturing and heavy industry
