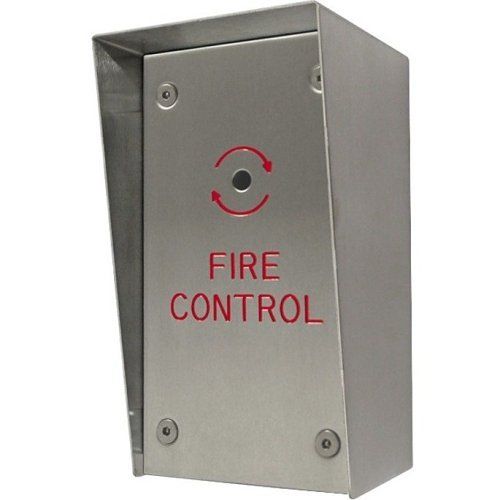

Videx 170E/S/SH Drop Key Fireman Switch with Rain Shield and Surface Surround
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- Drop key or Crescent key versions available
- Manufactured from 12 gauge stainless steel
- Both versions incorporate either a heavy duty DPDT or SPDT internal micro switch
- Surface back box also available for the Crescent key switch
Frequently bought together
Product details
These Vandal Resistant Fireman switches are manufactured from 12 gauge stainless steel with drop key and crescent key versions available. The switches have a flush galvanised back box as standard (with the drop key version in a flush bezelled box), however surface back box options are available for both.
The drop key provides a higher level of security against misuse than other conventional fireman switches (achieved through the shape of the key used to operate the switch).
The Drop Key Fireman switch is fitted with a heavy-duty DPDT (plunger) double pole micro switch while the Crescent Key Fireman switch is fitted with a heavy-duty SPDT (lever) single pole micro switch.
A drop key and crescent key are required to operate their respective Fireman switch and are available separately.
- Drop key or Crescent key versions available
- Manufactured from 12 gauge stainless steel
- Both versions incorporate either a heavy duty DPDT or SPDT internal micro switch
- Surface back box also available for the Crescent key switch
Specifications
| Application/Usage | Fire; Security |
|---|---|
| Contact Type | NO/NC (Combination) |
| Depth | 30.00mm |
| Height | 180.00mm |
| Limited Warranty | 2-Year |
| Material | Stainless Steel |
| Mount Type | Surface Mount |
| Package Contents |
|
| Product Type | Fireman Switch |
| Width | 100.00mm |
| Manufacturer | VIDEX |
| RoHS Compliant | Out of Scope |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Videx 170E/S/SH Drop Key Fireman Switch with Rain Shield and Surface Surround Product datasheet · 170E/S/SH · PDF Open datasheet
