Videx 2 Door Standalone Controller

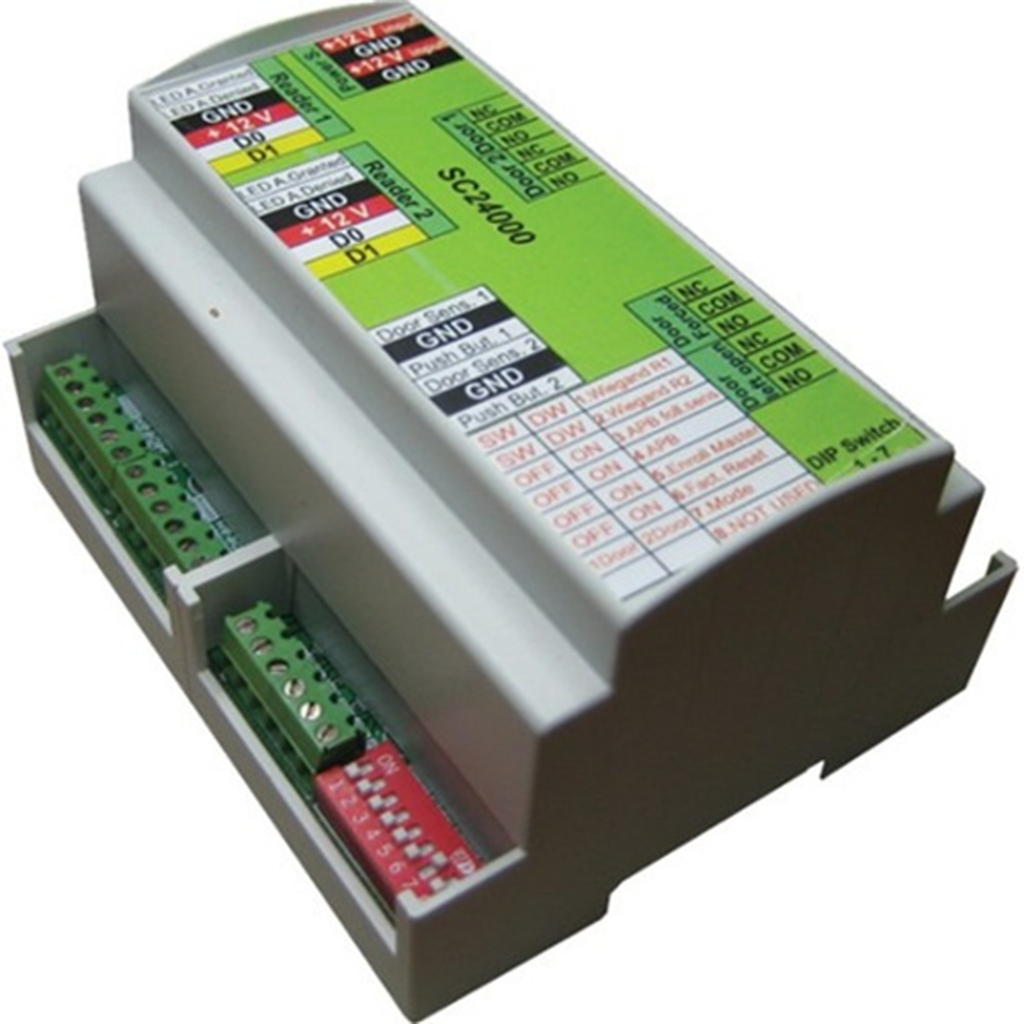

The Videx SC24000 (S-Prox) is a 2 door proximity access controller for smaller sites such as offices, small schools, nurseries and residential buildings. It suits sites with around 100 users but can handle up to 4000.

It is managed with shadow cards: management keeps a copy of each user card, so a lost card can be disabled without the original. It connects to industry standard Wiegand 26 and 34 bit readers, including Videx Portal Plus readers such as the MTPXS-EH, MTPXBK-EH, DINMTPXS-M, VPROX2-M, 4849PP and VR4KPPM.

Key features

• Up to 4000 users
• 2 x Wiegand 26/34 bit reader inputs
• 2 x dry contact lock relay outputs
• 2 x door sensor inputs and 2 x push-to-exit inputs
• Door forced and door left open alarm relay outputs
• Optional anti-passback
• Shadow card per user card or per group of cards
• Two entrance mode, or one entrance with in/out readers
• Lock-out after 15 invalid attempts

Technical specifications

• Part number: SC24000
• Entrances: 2
• Users: up to 4000
• Supply voltage: 12 to 15 VDC
• Current (excluding readers and locks): 180 mA
• Lock outputs: 2 x dry contact changeover relays
• Alarm outputs: 2 x dry contact changeover relays
• Operating temperature: 0 °C to +50 °C
• Operating humidity: 0 to 95%
• Dimensions: 90 (W) x 107 (L) x 61 (H) mm
