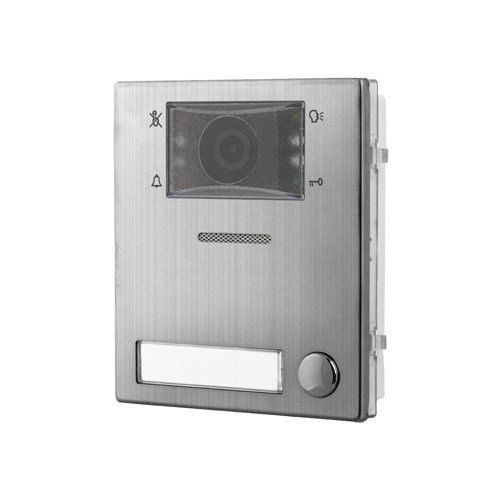

4000 Series speaker / camera module, 4384X, is a combined functional speech amplifier and camera for the VX2300 digital system. The module is available with either 0, 1 or 2-button and has blue backlit name plate windows. It also includes a built-in proximity reader located behind button 1 name plate window. The total fob / card user capacity for this module is up to 50 user fobs / cards, however can be increased up to 1000 users via the 2X00PC software. The modules are equipped with a CMOS colour camera with an auto iris lens, complete with 4 bright white illumination LEDs. The camera also has a 10° vertical and horizontal adjustment and contains a heating element to prevent the lexan window from misting up. The modules also have call reassurance tones and 4 call progress LEDs to advise the user when the system is busy, a call is in progress, when to speak and when the door is open. All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame. Modules attach to the housing frames using a simple but strong clip in systemSpeech levels can be adjusted using separate adjustments for both the speaker and microphone.
Main Features
CMOS colour camera with auto iris lens & white light LED illumination
10° tilt angle adjustment (horizontal and vertical)
Wide angle camera option available with a 170° viewing angle (suffix /W)
Internal anti-mist resistor
Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
Speech volume adjustment (both directions)
Blue backlit name plate windows
Built-in proximity reader 4384X
Total proximity fob/card user capacity dependent on model (refer to technical details)
Compatible with the entire 4000 series surface and flush back box range
