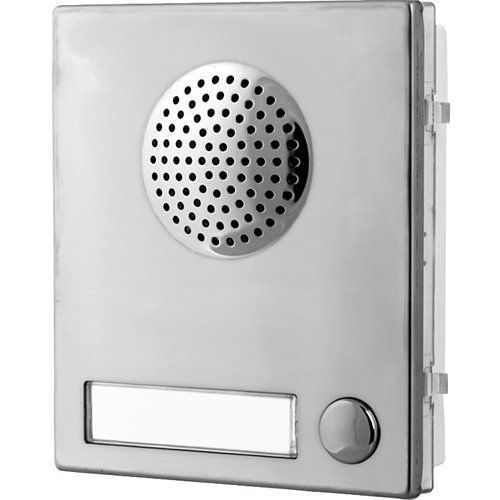

4000 Series speaker modules available for entry level "3 1" (4K series audiokits), "4 1" (traditional multi-apartment audio and video systems) and "5 1" (traditional multi-apartment audio and video systems including sentry with privacy of speech) audio systems. The speaker modules (4836, 4837 and 4838) are available with either 0, 1 or 2-button built into the module, however, additional buttons can be added using a combination of either the 4842, 4843, 4844 and 4845 button modules. All modules name plate windows are illuminated blue. Modules attach to the 4000 Series housing frames using a simple but strong clip-in system which can be secured in place using an anti-tamper clip fixing. Speech levels can be adjusted using separate controls for both the speaker and microphone.
Main Features
Matt finish 316 marine grade stainless steel (/M) or mirror finish stainless steel front plate finishes available
Blue illuminated name plate windows
Multiple call button configurations using additional 4000 series button expansion modules
Specifications
Compatibility
Compatible PSU's - 321, 322 and 522
Depth
30.00mm
Device Supported
Intercom System
Form Factor
Modular
Length
120.00mm
Limited Warranty
2-Year
Material
Anodized Aluminium; Brass; Stainless Steel
Number of Buttons
1
Product Series
4000
Product Type
Intercom System Speaker
Width
103.00mm
Additional Information
Built-In Button: 1
Adjustment Pots Yes: Microphone and Speaker
No. of Relays: 1 internal relay
Relay Contacts: Normally Open Contacts S/S1 (C/NO pair)
