4000 series GSM modules available in a matt 316 grade stainless steel finish or a gun metal grey finish.
All modules are compatible with the 4000 series surface and flush back box range and also the 4000 series rainshields.
IDC connection allowing new style 4000 series IDC button expansion modules (4042 - 4045 and 4042D - 4045D) to be linked using CFL17 and CFL45 IDC ribbon cables.
4G GSM PRO module compatible with 2G, 3G and 4G networks.
2G, 3G and 4G network status LED indication.
RS485 bus connectivity.
Network up to 8 devices (4G GSM PRO module, 4903 and 4850R) via the RS485 bus connections.
Program the additional features using Videx's GSM mobile Apps (SMS Wizard and SMS Wizard PRO), text messages or by the GSMSK PC software.
Program the primary number and 3 divert numbers in a single text.
Program up to 1000 permanent dial to open numbers and 32 temporary dial to open numbers.
Specifications
Application/Usage
Door Entry
Connectivity Technology
Wireless
Input Voltage
12V DC
Limited Warranty
2-Year
Mount Type
Surface Mount
Number of Buttons
1
Number of Sub Stations Supported
8

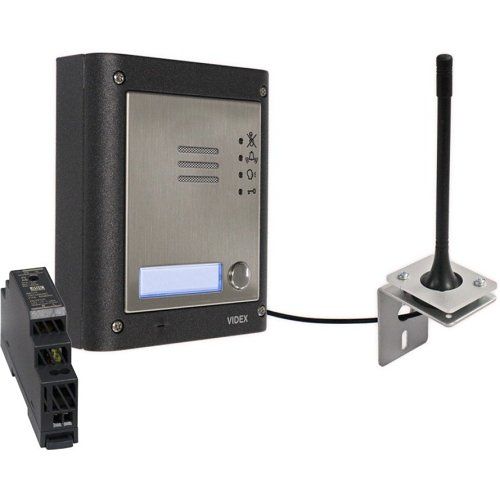

Package Contents
GSM PRO 4000 GSM4K-1S/4G Intercom System
Slim Line 12VDC, 1.25A Power Supply
GSM Antenna (Including L Bracket and Appropriate Fixings)
