Videx Metal Lockable Boxed 2 Door Controller (RS485 + TCP/IP) with 3.5A PSU
SKU: PPCU2Brand: Videx
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Videx Metal Lockable Boxed 2 Door Controller (RS485 + TCP/IP) with 3.5A PSU
£507.25
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 2 door networkable access control unit
- TCP/IP and RS485 connectivity
- Up to 15,000 users
- Up to 30,000 events per controller (unlimited per system)
- Anti-passback, timed anti-passback and mantrap facility
- 2 configurable Wiegand reader inputs
Frequently bought together
Videx
Videx MiAccess Panel Mount Prox Reader with 40x40mm Window
Sale price£153.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Videx
Videx MIFARE Keypad & Prox Reader with RS485 Programmable Multi-Protocol WS4 Default
Sale price£134.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Videx
Videx Mortice Latch 8-12VAC (N)
Sale price£17.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Videx
Videx Panel Mount Wiegand Proximity Reader
Sale price£65.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

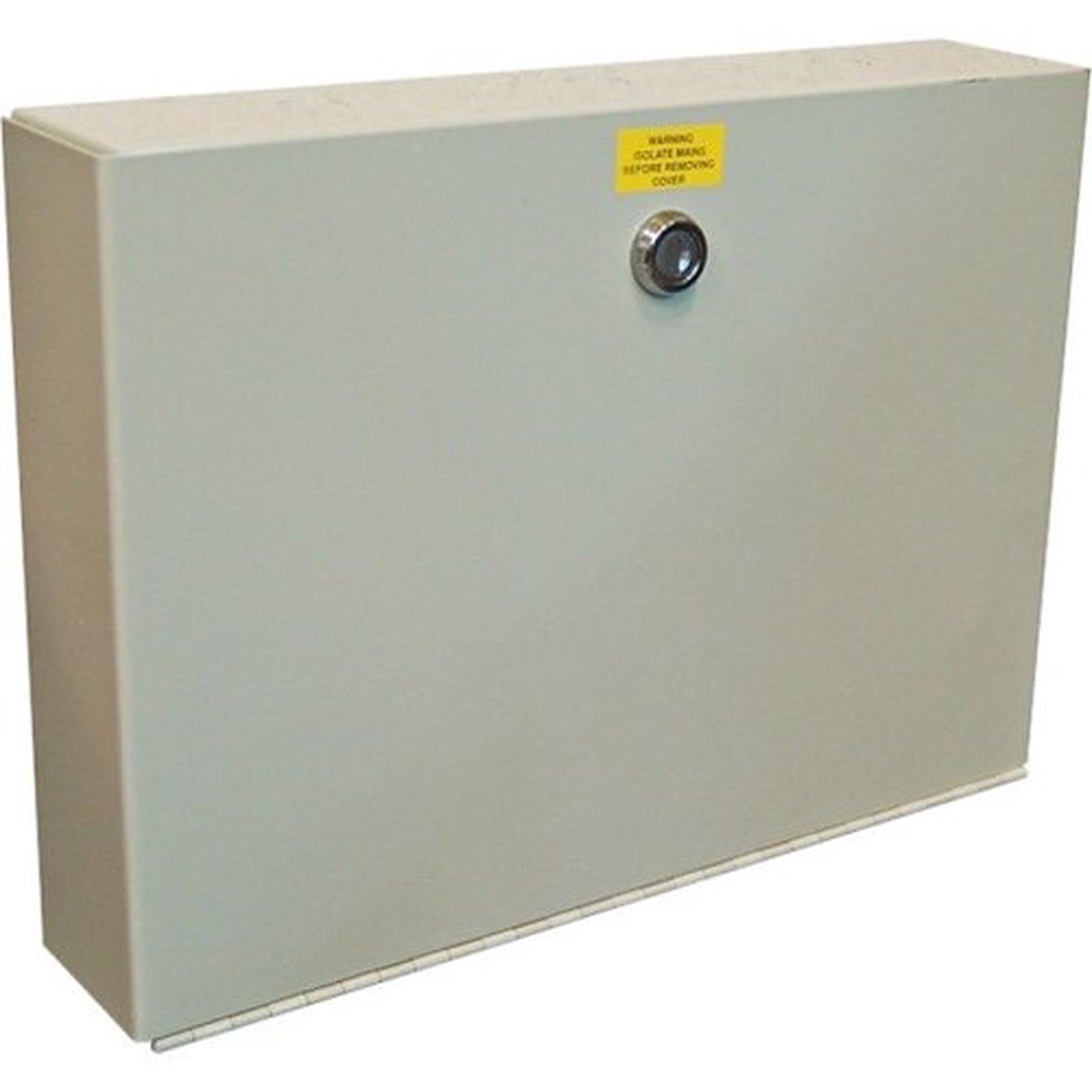

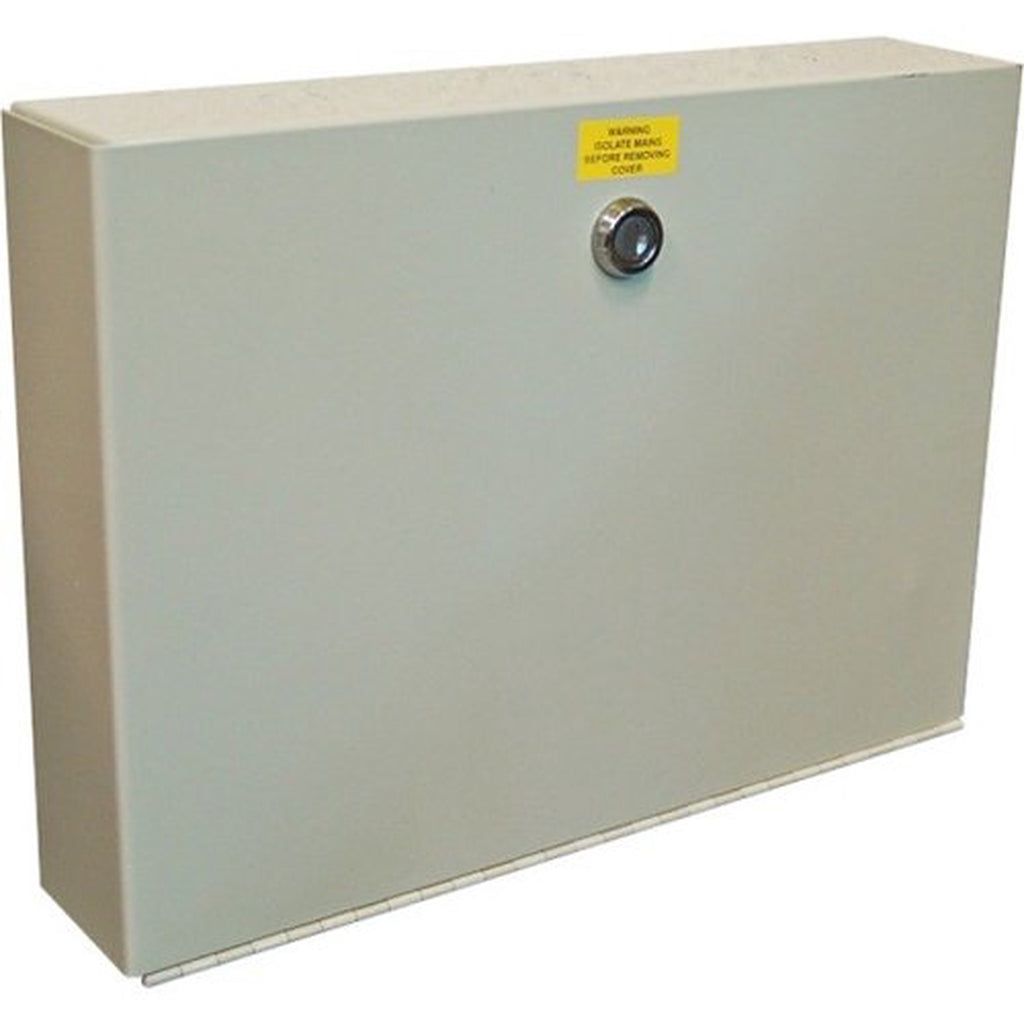

The Videx PPCU2 is a lockable 2 door controller cabinet for the Videx Portal Plus networkable access control system. It houses an EWSi 2 door controller with an integral 13.8 VDC 3.5 A switched mode power supply with battery back-up facility.
The controller has an Ethernet (TCP/IP) connection for LAN or WAN networks, plus an RS485 bus to link more controllers to the same Ethernet connection. The system supports up to 15,000 users and unlimited entrances, and is managed with the Windows-based PROS CS software, which is supplied with the PPCU2.
Key features
- 2 door networkable access control unit
- TCP/IP and RS485 connectivity
- Up to 15,000 users
- Up to 30,000 events per controller (unlimited per system)
- Anti-passback, timed anti-passback and mantrap facility
- 2 configurable Wiegand reader inputs
- 2 free inputs, 2 exit button inputs and 2 door sensor inputs
- 2 free outputs and 2 door relay outputs
- Distributed intelligence keeps doors working during network problems
Technical specifications
- Part number: PPCU2
- Controller: EWSi 2 door controller PCB
- Reader inputs: 2 (Wiegand)
- Communication: Wiegand, RS485, TCP/IP
- Aux inputs: 2; aux outputs: 2; door monitoring inputs: 2
- Power supply: 13.8 VDC, 3.5 A with battery back-up facility (7 Ah 12 V battery not included)
- Cabinet: powder coated steel, lockable
- Cabinet dimensions: 360 (W) x 266 (H) x 75 (D) mm
- EWSi controller dimensions: 85 (W) x 152 (H) x 27 (D) mm
- Software: PROS CS (Windows)
Datasheet
Videx Metal Lockable Boxed 2 Door Controller (RS485 + TCP/IP) with 3.5A PSU Need the datasheet? Our team will email it to you. Request datasheet
