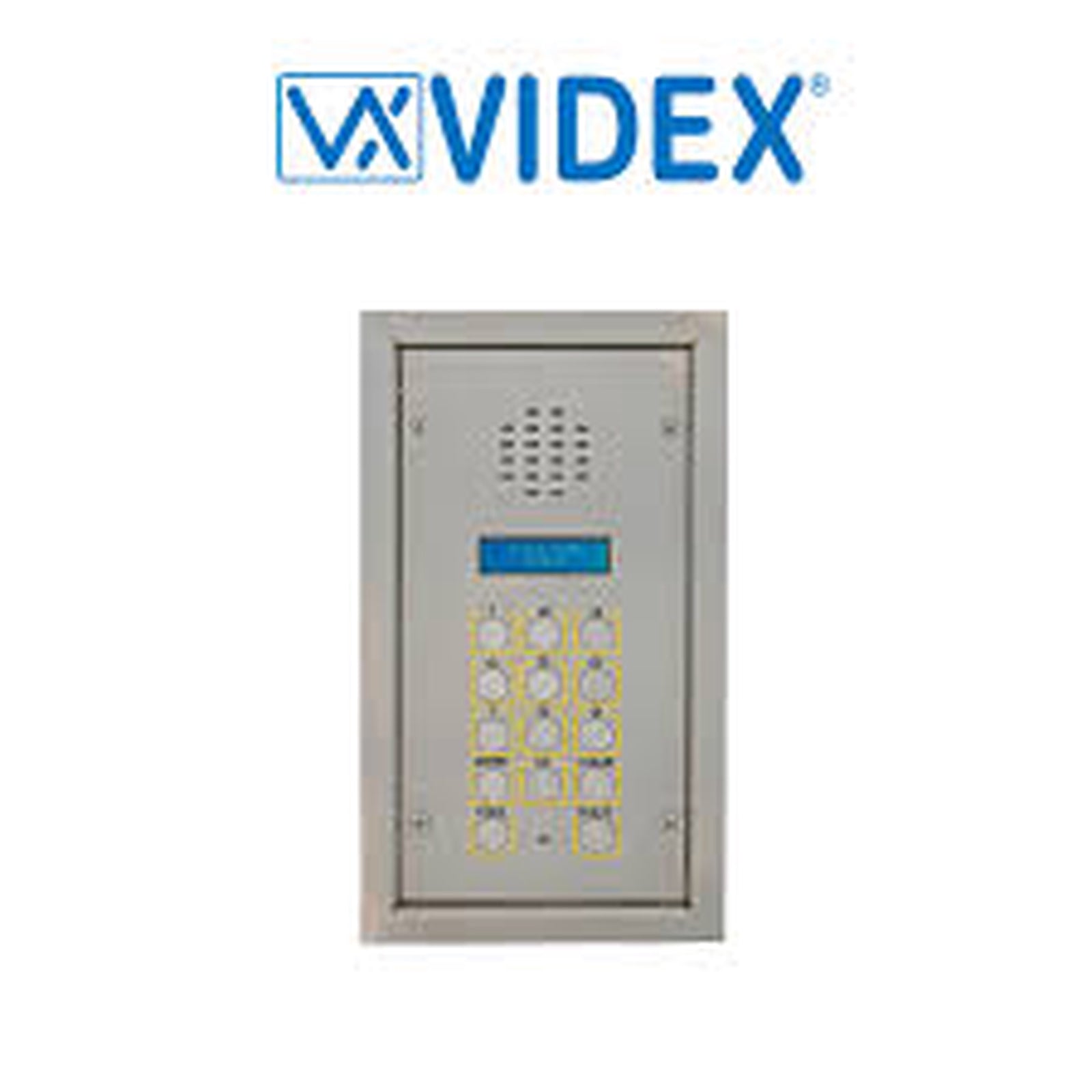

The Videx SP300-1R is a vandal resistant digital audio door panel for the Videx VX2200 digital door entry system, mainly used on larger sites with more than 20 apartments or offices. It has search and scroll buttons for finding residents by name, a back-lit 2 line, 16 character LCD display, and DDA call progress tones with voice assistance.
It stores up to 998 users, each with their own 4 to 6 digit door access code. The panel is 12 gauge, 316 marine grade brushed stainless steel and comes with a flush stainless steel bezel back box; a surface back box with rainshield is available separately.
Key features
- Back-lit 2 line, 16 character LCD display
- Voice assistance and call progress tones (DDA)
- Numeric keypad plus search and scroll buttons, with high contrast yellow engraved halos
- Up to 998 users and 998 door access codes (1 code per user)
- RS232 jack input for PC programming with 2X00PC software
- Flush bezel back box included
- Optional extras: proximity reader cut-out, Portal Plus, MiAccess or WS4 readers, fingerprint reader and induction loop
Technical specifications
- Part number: SP300-1R
- System: VX2200 digital
- Material: 12 gauge (2.5 mm) 316 marine grade vertically brushed stainless steel
- Power input: 12 VDC
- Buttons: 15 (1 to 9, ENTER, 0, CLEAR, scroll up, scroll down and call)
- Users/apartments: up to 998
- Door access codes: up to 998 (4 to 6 digits)
- Lock output: dry contact relay (C, NO and NC), programmable timing
- Push-to-exit input: yes
- Programming: keypad and/or RS232 jack with 2X00PC software
- Panel dimensions: 140 (W) x 280 (L) mm
- Bezel back box: 143 (W) x 283 (L) x 80 (D) mm; bezel outer 179 (W) x 319 (L) mm
What's in the box
- SP300-1R digital audio panel
- Flush stainless steel bezel back box
