Videx VX2200 Digital Vandal Resistant Video Module with Graphical Display Back Lit Keys and Scroll

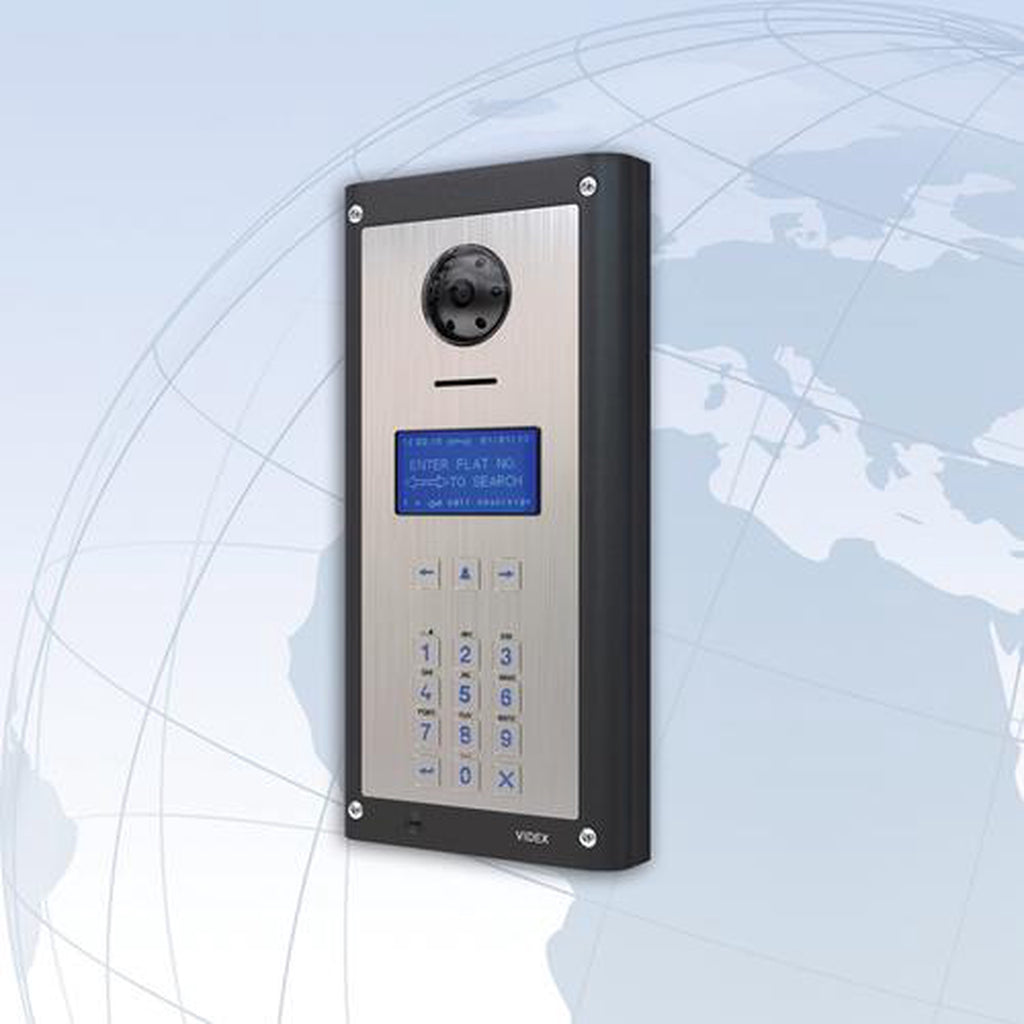

The Videx 4212RV is a vandal resistant digital video door panel module for the Videx VX2200 digital door entry system. It has a back-lit keypad with name search and scroll, a large blue back-lit graphical display, a built-in proximity reader and a colour CCD wide angle day/night camera.

The camera has IR illumination and a 170° viewing angle, and can be set for composite (coax) or balanced (non-coax twisted pair) video. This is the panel module only; it fits a 2 module 4000 series flush (4852) or surface (4882) back box.

Key features

• Back-lit keypad with name search and scroll facility
• 2.5 mm thick brushed stainless steel vandal resistant panel
• Blue back-lit 128 x 64 pixel graphical LCD display
• Speech annunciation of call progress
• Programmable trade facility
• Up to 2800 door access codes and 2800 proximity key fobs, usable alone or combined
• Wiegand output for connection to third-party access control
• USB and RS485 connections for PC programming and event logging
• Colour CCD wide angle day/night camera with IR illumination, 170° viewing angle

Technical specifications

• Part number: 4212RV (video, name scroll keypad, module only)
• System: VX2200 digital (2-wire bus for audio, 6-wire bus for video)
• Memory capacity: 998 users, 2800 key fobs, 2800 access codes, 4000 events
• Access codes: 3 to 6 digits
• Working voltage: 12 VDC
• Current rating: approx. 350 mA max.
• Lock output: dry contact relay (C, NO and NC), timed and programmable
• Push-to-exit input: 1 x push-to-make switched 0 V input
• Camera: wide angle CCD colour camera (170°) with LED illumination
• Working temperature: -10 °C to +50 °C
• Mounting: 2 module 4000 series flush (4852) or surface (4882) back box, sold separately
