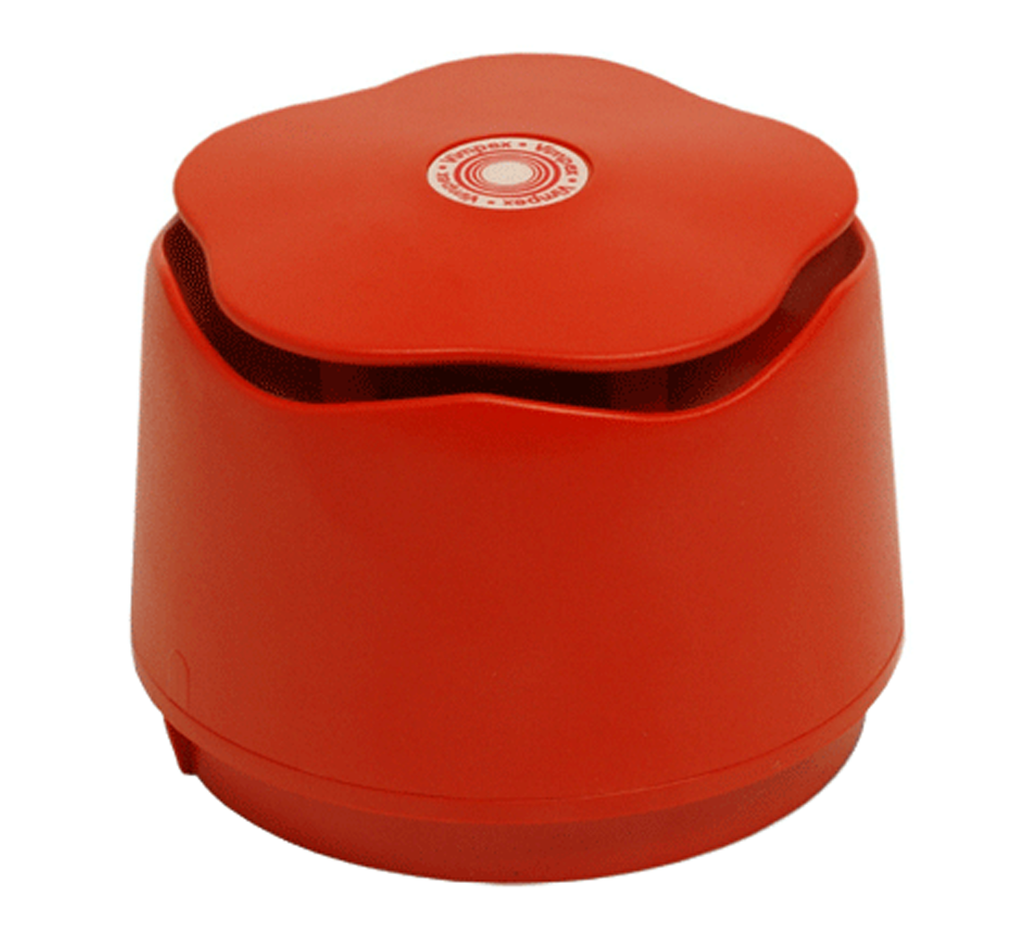

The Vimpex Banshee Excel™ CH is a red conventional electronic fire alarm sounder, supplied with the standard (shallow) base. It offers 32 user-selectable tones, covering low and high frequencies, European, American and Australian norms and all industry-standard frequency patterns. It is tested and approved to EN 54-3 under the CPR.
Key features
- 32 user-selectable tones, compatible with industry standards
- Very low current consumption
- EN 54-3 tested and approved in accordance with the CPR; LPCB approved
- Professional capsule-driven horn in flame-retardant ABS
- Uses the same bases as BansheeMT: push-and-twist bayonet mounting with locking screw
- Side and rear cable entry
- Robust two-in, two-out 2.5 mm² terminals
- Three selectable volume levels: high, medium (−10 dB(A)) and low (−20 dB(A))
Technical specifications
-
Vimpex part code: 902CHA6A0
-
Colour: Red
-
Base: Standard (shallow) base
-
Operating voltage: 9–30 V DC
-
Operating voltage (EN 54-3): 24 V DC (20–28 V)
-
Operating temperature: −25°C to +70°C
-
Environment category / IP rating: Type A / IP45 (standard base)
-
Approval: 2831-CFR-F1832
