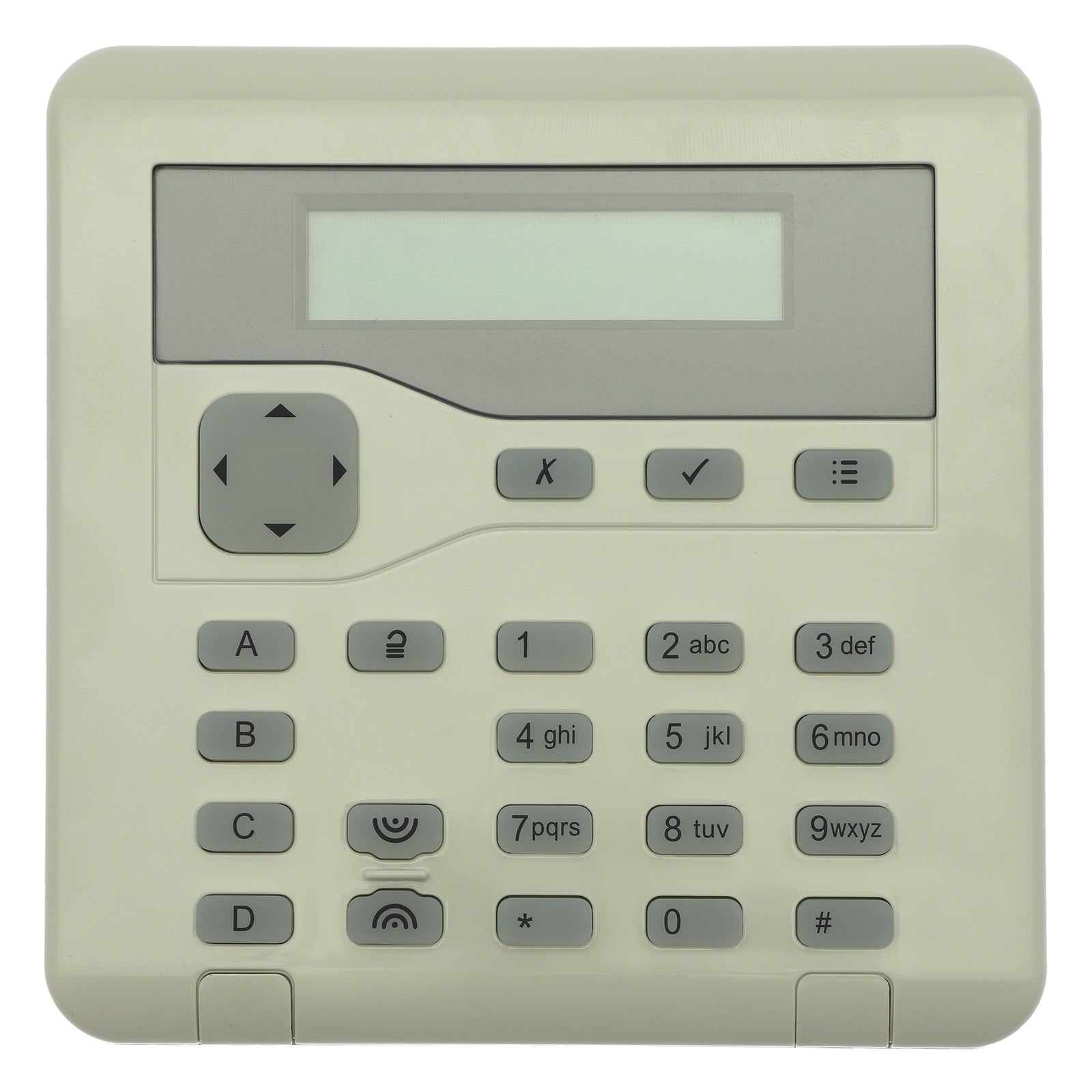

The Eaton KEY-K01 is a wired keypad for Eaton Scantronic intruder alarm control panels.
It is the non-proximity version of the KEY-K series, with a telephone-style alphanumeric keypad, display and navigation key for setting and unsetting the system and for user and installer menus.
Key features
- Navigation key for easy access to user and installer menus
- A, B, C, D setting keys with built-in status LEDs, which can be linked to partitions, part-sets or outputs
- Built-in panic button, enabled in programming
- Status LED that can be turned on or off from the keypad menu
- Small, discreet surface-mounted design
- Coloured upgrade accessories available separately
Technical specifications
- Part number: KEY-K01
- Connection: wired
- Zone inputs: 0; outputs: 0
- Proximity reader: no
- Grading: PD6662:2017, BS8243:2010 + A1 2014, EN 50131 Grade 2 or Grade 3
- Environmental class: 2
- Operating temperature: -10°C to 55°C at 75% RH
- Dimensions: 128 x 128 x 29 mm
- Weight: 0.21 kg
- Colour: white
