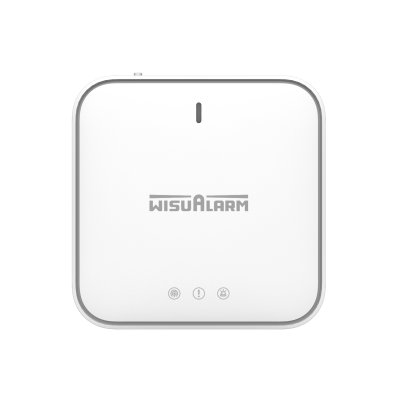

Wisualarm DHI-HY-GW01A Wireless Gateway

The Wisualarm DHI-HY-GW01A is a wireless gateway that acts as the central hub for WisuLink interconnected smoke, heat and CO alarms. It links up to 24 WisuLink devices over 868MHz and connects to the internet by Ethernet or Wi-Fi, so alarm and fault status can be monitored remotely. It can be wall mounted or stood on a table.

Key features

• Hub for up to 24 WisuLink wireless interconnected products
• Dual connection: Ethernet and 2.4GHz Wi-Fi
• Over the air (OTA) software updates
• 4 LEDs show power, fault, alarm and internet status
• Built-in 70dB audible alarm with visual indication
• Wall mount or free-standing on a table

Technical specifications

• Model: DHI-HY-GW01A (HY-GW01A)
• Interconnect radio: 868MHz WisuLink
• Connected devices: up to 24
• Wi-Fi: 2.4GHz IEEE 802.11b/g/n (5GHz not supported)
• Wi-Fi range: 50m
• Network: Ethernet (RJ45) and Wi-Fi
• Power supply: 5V DC, 1A
• Alarm volume: 70dB
• Dimensions: 78.2 x 78.2 x 22.9mm
• Weight: 60g
• Casing: white ABS
• Operating temperature: -10°C to +55°C
• Operating humidity: up to 95% RH, non-condensing
• Certifications: CE, UKCA
