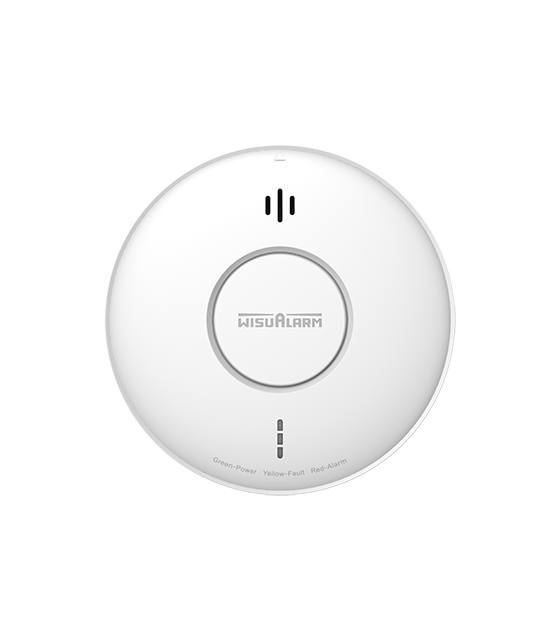

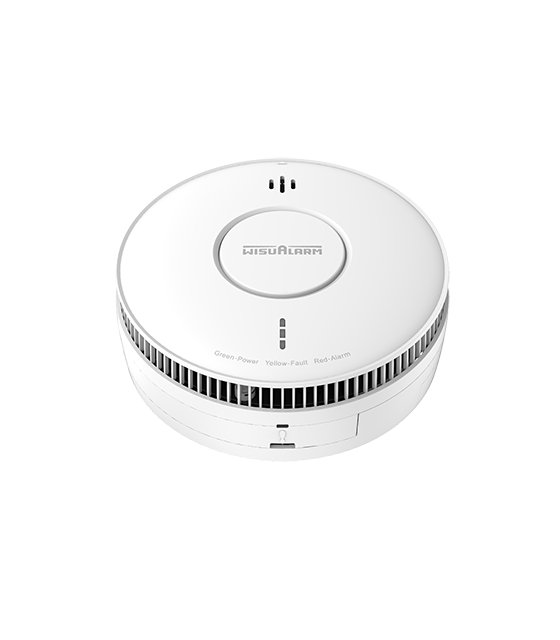

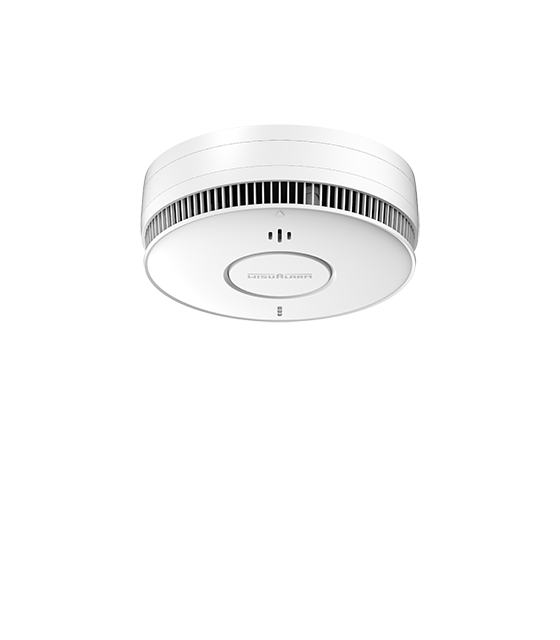

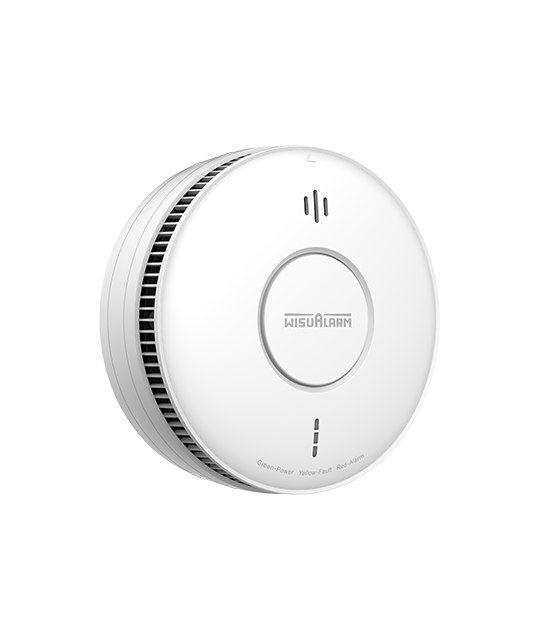

Wisualarm DHI-HY-SA5MA D1 Smoke Alarm Mains
$40.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Split-spectrum photoelectric smoke sensor
- Built-in 10 year rechargeable lithium battery back-up
- Hard wired interconnection of up to 24 units
- Wireless interconnection of up to 24 devices with the WisuLink module
- Test and silence on the central push button
- Can be silenced with an infrared remote control
Frequently bought together
Wisualarm

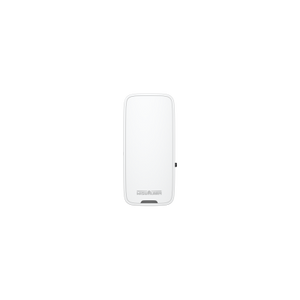

Wisualarm DHI-HY-ES10A-R8 Environmental Sensor
Sale price$14.00
Regular price$26.00
In stock, 20 units
Wisualarm
Wisualarm DHI-HY-GC20D F1 Carbon Monoxide Alarm with 10 Year Sealed Battery
Sale price$26.00
In stock
Wisualarm

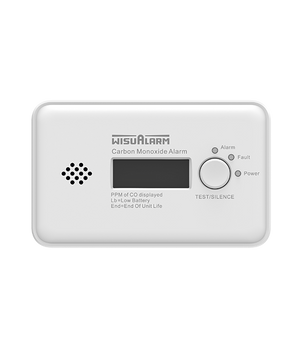

Wisualarm DHI-HY-GC20D-R8 F1 CO Alarm
Sale price$21.00
Regular price$39.00
In stock, 18 units
Wisualarm

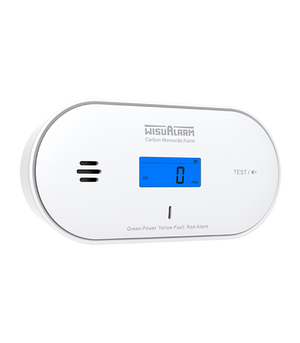

Wisualarm DHI-HY-GC30A F1 Carbon Monoxide Alarm (Temp)
Sale price$16.00
Regular price$28.00
In stock, 20 units
Wisualarm

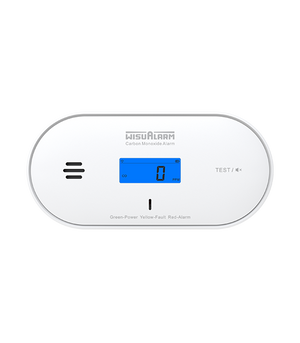

Wisualarm DHI-HY-GC30A-R8 F1 Wireless Interconnected CO Alarm with Temperature
Sale price$22.00
Regular price$41.00
In stock, 20 unitsProduct details
The Wisualarm DHI-HY-SA5MA is a mains powered smoke alarm with a built-in 10 year rechargeable lithium back-up battery. It uses a split-spectrum photoelectric sensor for fast, stable smoke detection with fewer false alarms, and a loud built-in buzzer. Alarms can be interlinked by hard wire or wirelessly with the optional WisuLink module, so when one alarm sounds, they all sound. It suits homes, rented properties and HMOs.
Key features
- Split-spectrum photoelectric smoke sensor
- Built-in 10 year rechargeable lithium battery back-up
- Hard wired interconnection of up to 24 units
- Wireless interconnection of up to 24 devices with the WisuLink module
- Test and silence on the central push button
- Can be silenced with an infrared remote control
- Over 85dB(A) at 3m
- Kitemarked to EN 14604
Technical specifications
- Model: DHI-HY-SA5MA
- Sensor: photoelectric
- Alarm threshold: 0.2 to 0.3dB/m
- Sound level: 85dB(A) or more at 3m
- Silence time: 9 minutes
- LEDs: green (standby), red (alarm), yellow (sensor or low battery fault)
- Mains supply: 100 to 250V AC, 50/60Hz
- Battery back-up: 10 year rechargeable lithium
- Interconnection: 24 units hard wired, or 24 wireless with WisuLink
- Dimensions: 148.6mm diameter x 55.5mm high
- Weight: 330g
- Casing: white PC+ABS
- Mounting: ceiling, indoor only
- Operating temperature: -10°C to +55°C
- Operating humidity: up to 95% RH, non-condensing
- Certifications: BSI Kitemark, CE, UKCA; EN 14604:2005
Datasheets & documents
No datasheet is online for this product yet. Ask us and we will email it to you.
