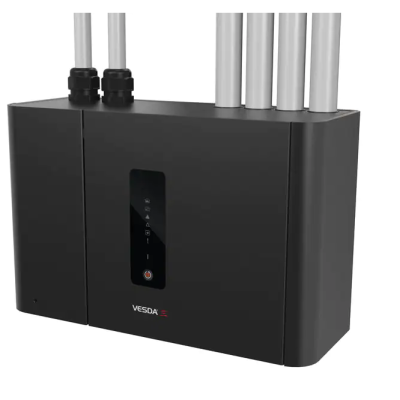

Xtralis VESDA-E VEP 4 Pipe Aspirating Smoke Detector with LED Display (Black) (VEP-A00-P)
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 2 | Same day dispatch |
| UK Hub | 3 | 1 to 3 working days |
Xtralis VESDA-E VEP 4 Pipe Aspirating Smoke Detector with LED Display (Black) (VEP-A00-P) The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to...
Frequently bought together
Product details
The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to a wide range of applications. Built on the Flair detection technology and years of application experience, VEP detectors deliver absolute calibration for lifetime performance and a range of revolutionary new features that deliver user value.
The VESDA-E VEP series of aspirating smoke detectors extend the reach of the VESDA-E platform to a wide range of applications. VEP sensitivity range is from 0.005-20%/m (0.0015-6.25%/ft) and provides up to 40 Class A holes. VEP provides linear pipe lengths up to 280 m (918 ft) and up to 560 m (1,837 ft) of branched pipe networks. VEP also provides StaX and Analytics support together with Ethernet, WiFi, USB and VESDAnet capabilities.
Key Features:
One and four pipe models for different applications
Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms
Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance
Four alarm levels and a wide sensitivity range deliver optimum protection for the widest range of applications
Intuitive LCD icon display provides instant status information for immediate response
Flow fault thresholds per port accommodate varying airflow conditions
Smart on-board filter retains dust count and remaining filter life for predictable maintenance
Extensive event log (20,000 events) for event analysis and system diagnostics
AutoLearn™ smoke and flow for reliable and rapid commissioning
Referencing to accommodate external environmental conditions to minimise nuisance alarms
Fully backward compatible with VLP and VESDAnet
Remote monitoring with iVESDA for system review and proactive maintenance
Ethernet for connectivity with Xtralis software for configuration, secondary monitoring and maintenance
Industry first. Aspirating detector secondary monitoring and maintenance via WiFi
USB for PC configuration, and firmware upgrade using a memory stick
Two programmable GPIs (1 monitored) for flexible remote control
Field replaceable sub-assemblies enable faster service and maximum uptime
Specification
| Product code | VEP-A00-P |
|---|---|
| Brand | Xtralis VESDA-E |
| Model | VEP 4-pipe |
| Sensitivity range | 0.005-20 %obs/m |
| Alarm levels | 4 |
| Sampling holes | Up to 40 Class A holes |
| Pipe length | Up to 280m linear, up to 560m branched |
| Supply voltage | 18-30V DC |
| Connectivity | Ethernet, WiFi, USB and VESDAnet |
| Operating temperature | 0C to 39C |
