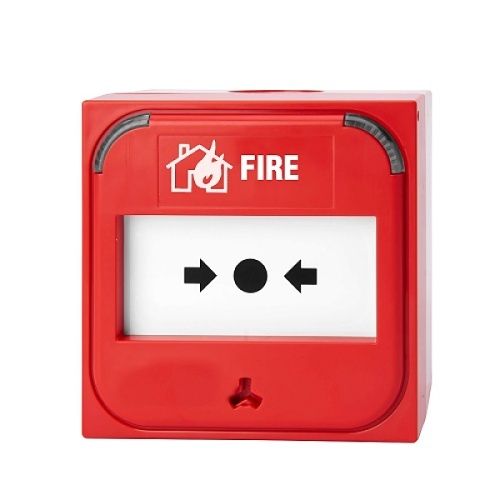

Ziton ZP886R ZP7 Series Intelligent Addressable Manual Call Point, Surface / Flush Mounting, Flame Retardant ABS, IP41, Red
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 9 | 2 to 3 working days |
- Reliable single action manual call point for surface and flush mounting
- Dual, tri-colour status indicators offers 180° alarm visibility
- Tamper resistant design with resettable or frangible element
- Unobtrusive front facing test facility
- Standard mounting options facilitates easy retrofitting to existing installations
- Matching back box with rear, top and bottom cable entry
Frequently bought together
Product details
The ZP880 Series is an intelligent range of addressable manual call points. The ZP886R is a red, single action indoor MCP. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most indoor installation requirements. This single action MCP is a standard profile, indoor MCP suitable for surface and recess mount installations using standard or legacy European electrical boxes. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view in a passage installation. The clean face of the MCP is further enhanced by a front access and test key facility. The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools. The ZP880 range may be used on compatible Ziton fire systems. They can be deployed seamlessly into existing legacy systems without CIE configuration changes.
- Reliable single action manual call point for surface and flush mounting
- Dual, tri-colour status indicators offers 180° alarm visibility
- Tamper resistant design with resettable or frangible element
- Unobtrusive front facing test facility
- Standard mounting options facilitates easy retrofitting to existing installations
- Matching back box with rear, top and bottom cable entry
- Screen connection terminal for electrically noisy installations
- Pluggable connector with link through facility for ease of installation and pre-commissioning testing
- An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
- Up to 127 devices per loop
Specifications
| Compatibility | Ziton fire systems; Ziton ZP7 systems |
|---|---|
| Depth | 2.6cm |
| Durability | Tamper Resistant |
| Height | 8.7cm |
| Input Voltage | 16-20V DC |
| Limited Warranty | 1-Year |
| Print/Message | Fire |
| Product Type | Pull Station |
| Weight | 0.11kg |
| Width | 8.7cm |
| Maximum Operating Temperature | 72°C |
| Manufacturer | Carrier |
| Minimum Operating Temperature | -25°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Ziton ZP886R ZP7 Series Intelligent Addressable Manual Call Point, Surface / Flush Mounting, Flame Retardant ABS, IP41, Red Product datasheet · ZP886R · PDF Open datasheet
