Advanced EXP-008 8-Way Relay Output Card (for use with EX-3001 only)
SKU: EXP-008Brand: Advanced
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Advanced EXP-008 8-Way Relay Output Card (for use with EX-3001 only)
£244.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 8 individually programmable outputs
- Volt-free, clean contacts
- Each output rated 30V AC/DC, 1A
- Fast response
- Optional fail-safe set-up
- Programmed from the panel keypad
Frequently bought together
Advanced
Advanced EXP-010 Manual Release Button (EN12094-3 Type B) - no key included
Sale price£57.10
In stock
Advanced
Advanced EXP-011 Emergency Stop Button (EN12094-3 Type B) - no key included
Sale price£70.50
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced EXS-001 Spare Manual Release Cover
Sale price£35.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced EXS-002 EX-3001 Spare Chassis c/w PCB
Sale price£509.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Advanced
Advanced EXS-003 Key for EXP-010 and EXP-011 door lock
Sale price£15.85
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

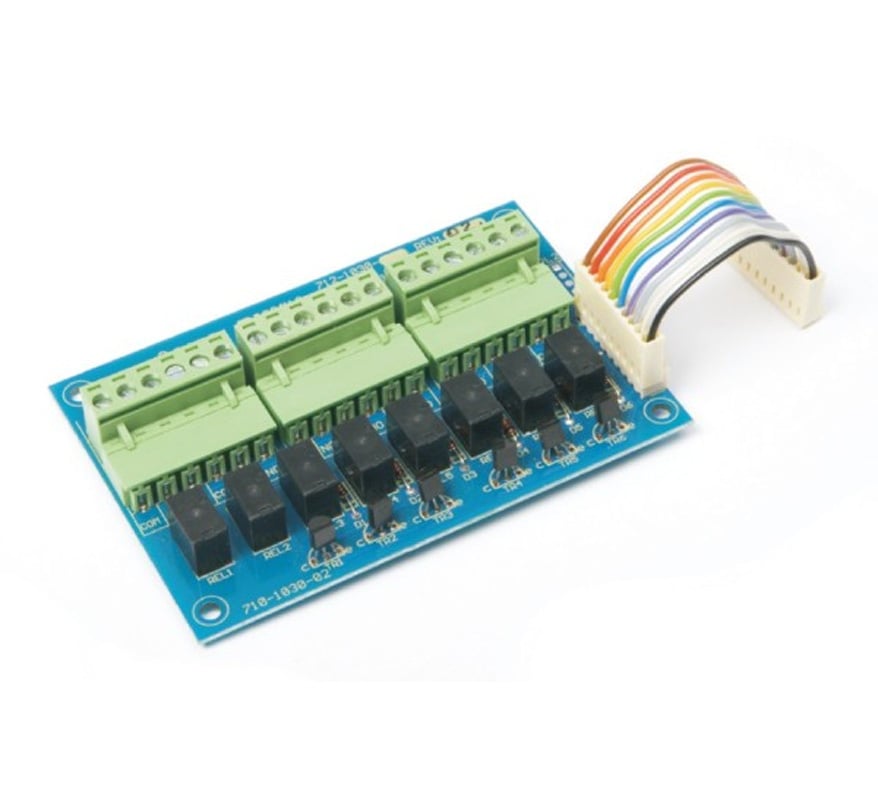

The Advanced EXP-008 is an 8-way relay output card for the ExGo extinguishing control panel. It adds 8 individually programmable, 1A rated volt-free clean contact outputs.
The card connects directly to the panel motherboard and each output can be programmed from the on-board keypad for any output function the ExGo panel allows, so extra outputs for more complex cause and effect can be provided without expensive ancillary hardware. Only one relay output card can be fitted to an ExGo control panel; mounting pillars are provided in the back box.
Key features
- 8 individually programmable outputs
- Volt-free, clean contacts
- Each output rated 30V AC/DC, 1A
- Fast response
- Optional fail-safe set-up
- Programmed from the panel keypad
- For the ExGo control panel only
Technical specifications
- Part code: EXP-008
- Relay outputs: 8 volt-free contacts: 2 x changeover + 6 x normally open (can be inverted)
- Contact rating: 1A, 30V DC/AC maximum
- Power supply: 24V DC from the panel motherboard
- Supply current: 65mA maximum (all relays energised)
- Dimensions (H x W x D): 70 x 105 x 18mm
- Compatibility: ExGo control panel only
